ABB ACS880-104

202 Parameters

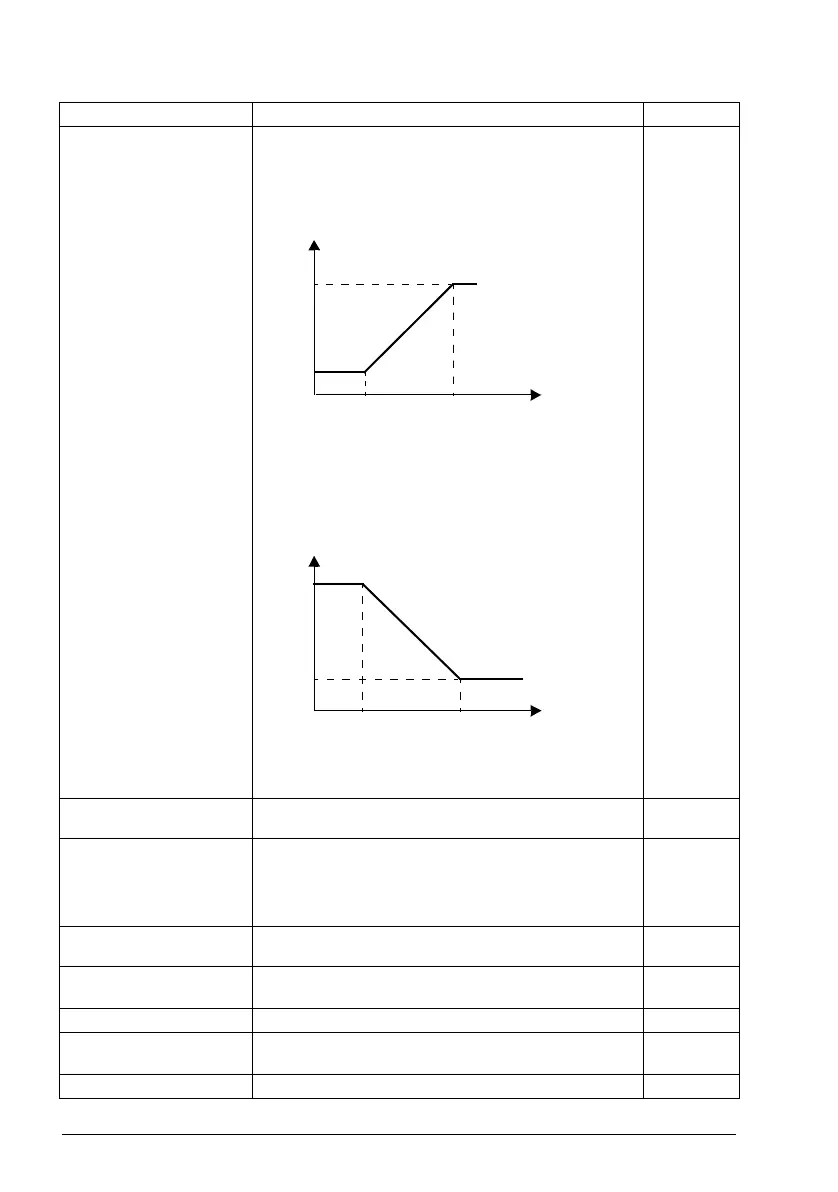

13.17 AO1 source min Defines the real minimum value of the signal (selected by
parameter 13.12 AO1 source) that corresponds to the
minimum required AO1 output value (defined by parameter
13.19 AO1 out at AO1 src min).
Programming 13.17 as the maximum value and 13.18 as the
minimum value inverts the output.
0.0
-32768.0 …
32767.0
Real signal value corresponding to minimum AO1 output
value.
1 = 1
13.18 AO1 source max Defines the real maximum value of the signal (selected by
parameter 13.12 AO1 source) that corresponds to the
maximum required AO1 output value (defined by parameter
13.20 AO1 out at AO1 src max). See parameter 13.17 AO1
source min.
1500.0;
1800.0
(95.20 b0)
-32768.0 …
32767.0
Real signal value corresponding to maximum AO1 output
value.
1 = 1
13.19 AO1 out at AO1 src
min
Defines the minimum output value for analog output AO1.
See also drawing at parameter 13.17 AO1 source min.
0.000 mA
0.000 … 22.000 mA Minimum AO1 output value. 1000 = 1 mA
13.20 AO1 out at AO1 src
max
Defines the maximum output value for analog output AO1.
See also drawing at parameter 13.17 AO1 source min.
20.000 mA
0.000 … 22.000 mA Maximum AO1 output value. 1000 = 1 mA
No. Name/Value Description Def/FbEq16
13.1813.17
13.20
13.19
I
AO1
(mA)
Signal (real)
selected by
13.12
I
AO1
(mA)
13.20
13.19
13.18 13.17
Signal (real)
selected by
13.12
