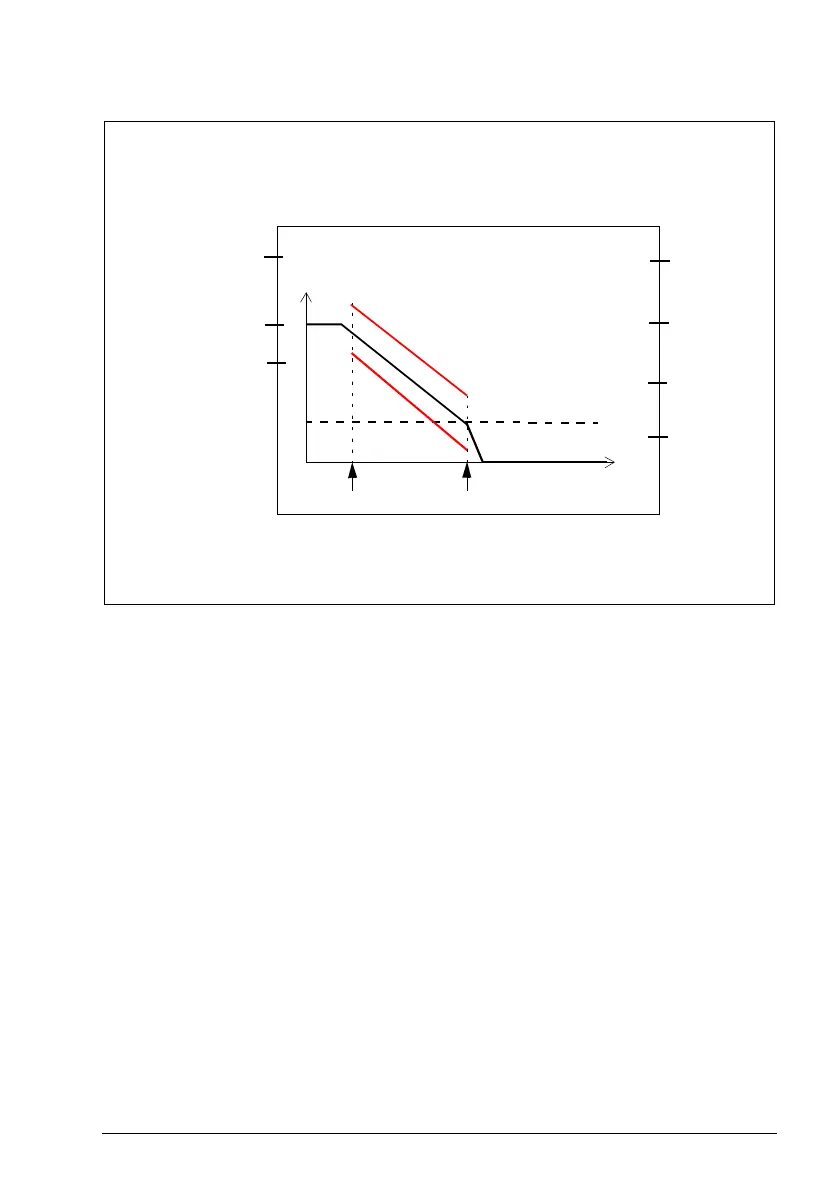

Configuration 359
Remember to configure SAR0!
Time
Speed
SBC and STO activated
Inputs
Outputs
SSE activated
SSE.11
= DI X113:1 & X114:1
SSE.12
= None
SSE.21
= DO X113:9
SSE.22
= None
SSE.14 = Ramp
SSE.13 = Emergency ramp
STO.02 = Automatic
SBC.15
= 240 rpm
SSE.16 = 0 ms
SBC.22 = STO
SAFEIO.23 = Mechanically linked NC contacts
SAFEIO.53, SAFEIO.56 = On
SBC.21
= DO X113:7
& X114:7
SAFEIO.21
= DO X113:7
& X114:7
SAFEIO.22
= DI X113:2
