18. Set F-Parameters of the FSPS-21 module:
• In the hardware configuration, double-click PROFIsafe ABB_PS3 to open the
Properties window.
• On the PROFIsafe tab, modify the F_Dest_Add and F_WD_Time values as needed.

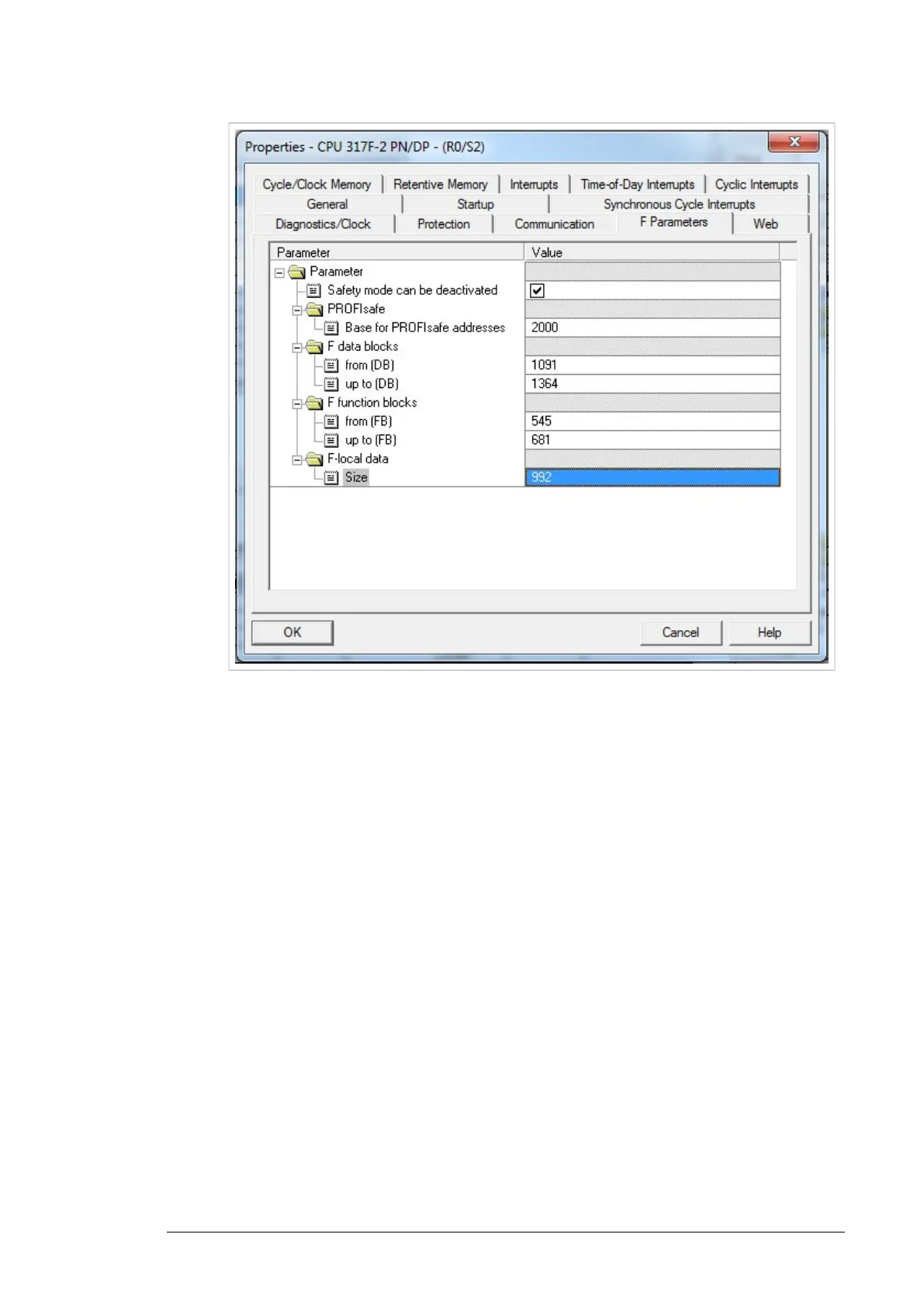

• F_Source_Add is the address of the safety controller station. You can modify this
in the host F Parameters tab.
• F_Dest_Add is the address of the FSPS-21 module. This is a control unit parameter
51.24, see section Drive parameters related to safety functions (page 43). These
two define the codename for the PROFIsafe relationship of this particular FSPS-21
module and the safety controller station.
Calculating the watchdog time (page 123)
•
F_WD_Time is the PROFIsafe watchdog time. See section Calculating the watchdog
time (page 123) for instructions on how to calculate the correct watchdog time.
PROFIsafe 159
