2 Installation and commissioning
2.1.1 Lifting the Manipulator
3HAC026320-001 Revision: A 39
2.1: On-site installation
2.1.1 Lifting the Manipulator
The best way to lift the manipulator is to use lifting straps and a traverse crane. Attach the
straps to the special eye bolts on the gear boxes for axes 2 and 3 (see figure below). The lifting
strap dimensions must comply with the applicable standards for lifting.
Never walk under a suspended load.

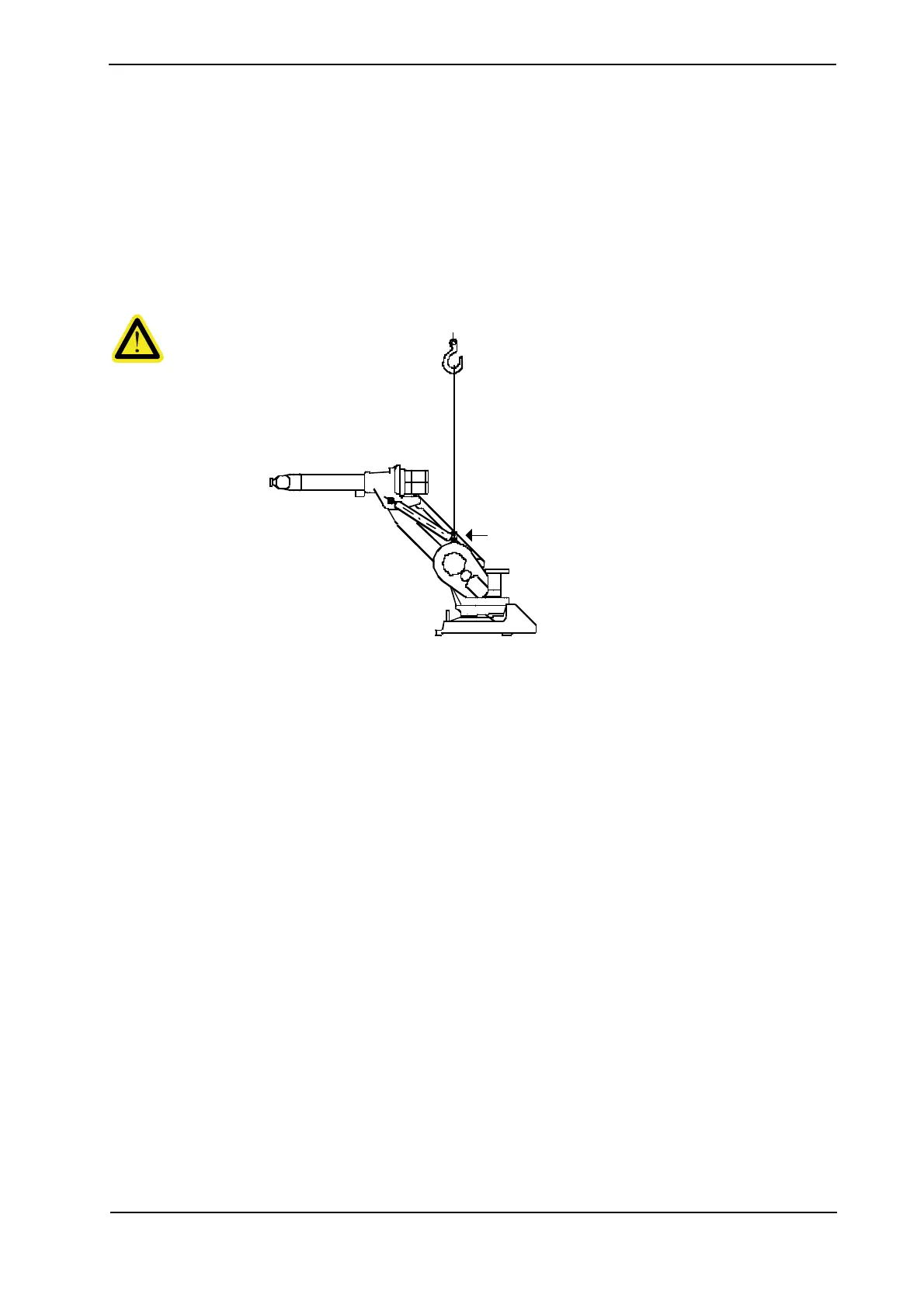

Figure 2: Lifting the Manipulators using a Traverse Crane.
Lifting eye
