Optional External Throttle Valve
An optional external throttle valve (Figure 97) lets you adjust the gas flow to the analyzer.
Use the throttle valve to restrict the:
 Total flow into the analyzer to less than 200 SCCM
 Source gas to less than 180 SCCM for proper dynamic dilution control
The flow rate can be measured at the inlet if necessary.

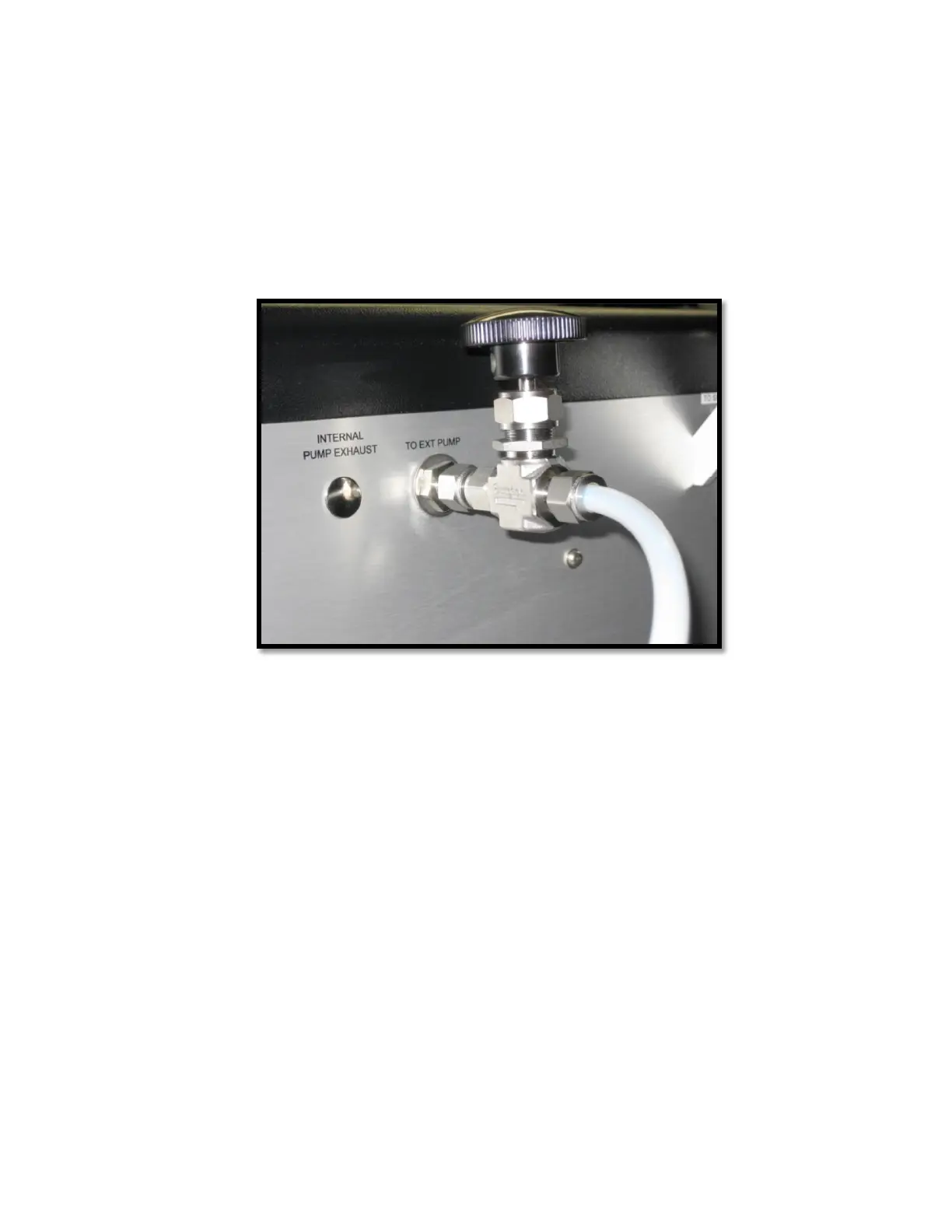

Figure 97: External Throttle Valve
