ABB LGR GLA351 Series User Manual

USER MANUAL | ICOS | INSTRUCTIONS | UM/ICOS-EN REV. B.2
106
Enable the EDDS
1. Click Setup on the
User Interface Control Bar . (Figure 98)

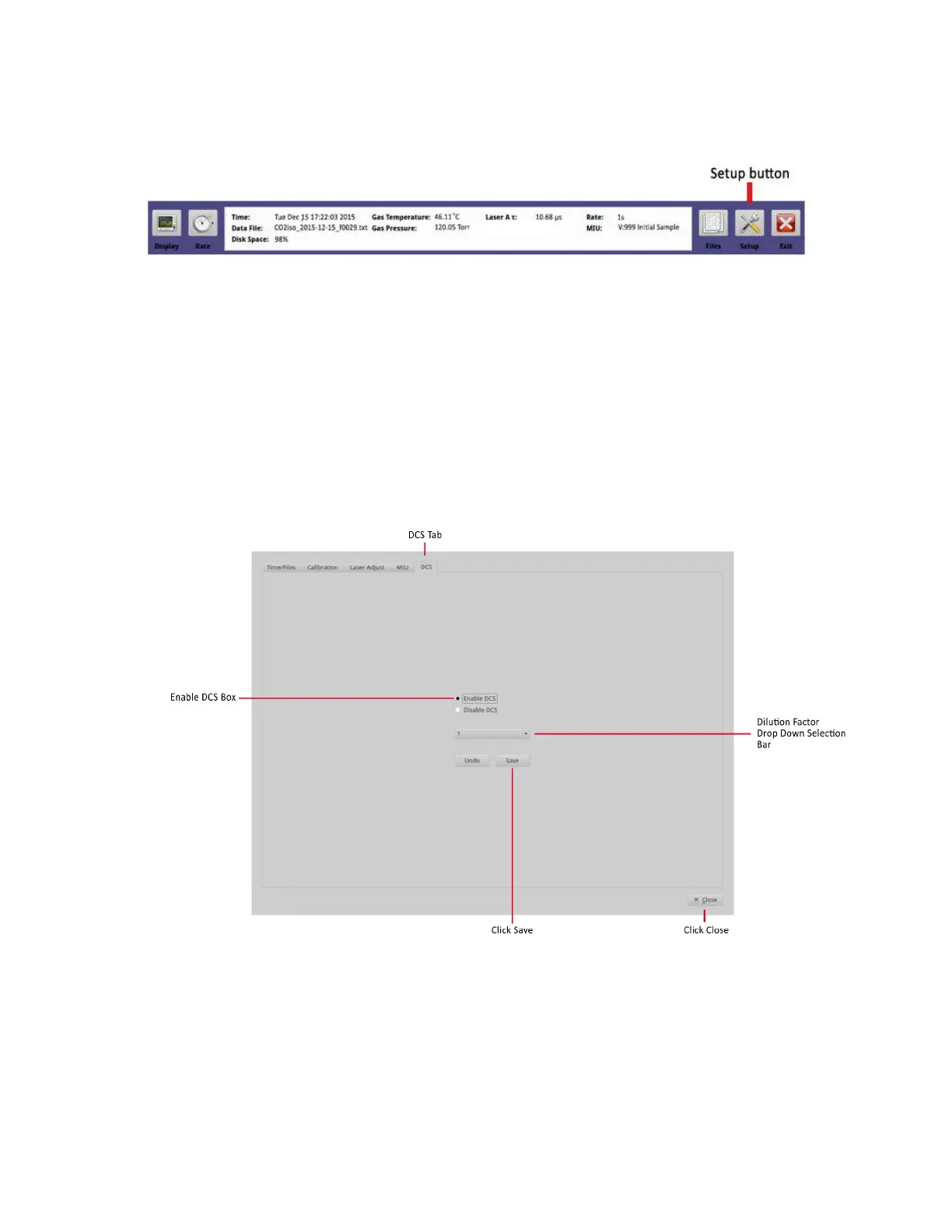

Figure 98: Setup button on the User Interface Control Bar
2. Click on the DCS tab at the top of the Setup menu selection bar. (Figure 99)
3. Use the radio buttons to Enable or Disable the EDDS.
4. Use the drop down selection box to set the dilution factor.
5. Click Save.
6. ClickClose to begin the dilution.
Figure 99 shows the DCS Screen for the EDDS enabled.
Figure 99: Enable EDDS
