7 - Appendix
Power reduction due to temperature

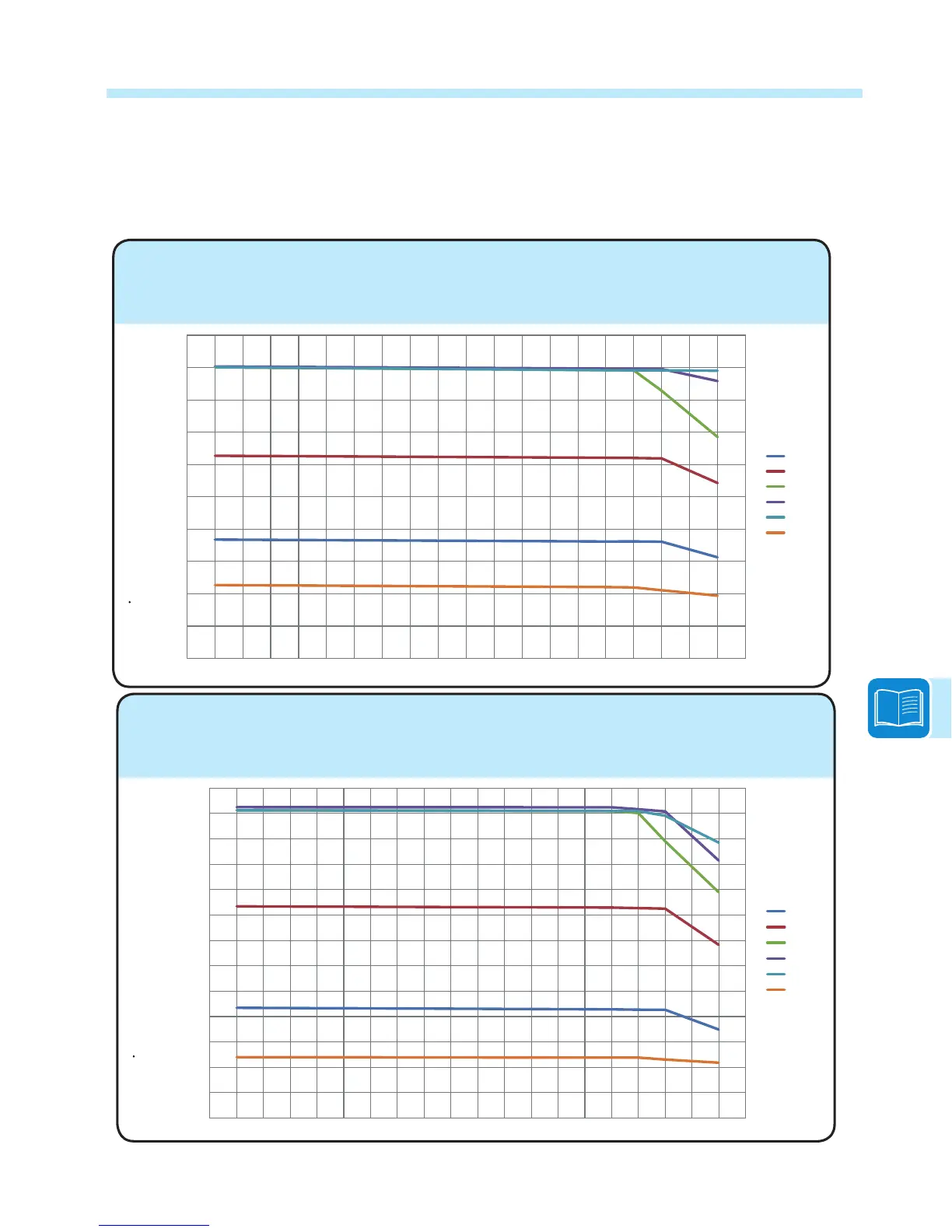

Power reduction due to ambient or inverter temperature depends on many operating parameters, such as
input voltage, grid voltage and power available from the photovoltaic arrays. The inverter may reduce its output
power during the day according to the value of these parameters. The following graphs show the automatic
reduction in output power in relation to ambient temperature.
0
2500
5000
7500
10000
12500
15000
17500
20000
22500
25000
-35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 60 65
Pout (W)
T(C0)
185
315
455
710
850
950
TRIO 20.0kW thermal derang @ vout nominal
0
2500
5000
7500
10000
12500
15000
17500
20000
22500
25000
27500
30000
32500
-35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 60 65
Pout (W)
T(C0)
180
345
520
715
850
950
TRIO 27.6kW thermal derang @ vout nominal
