7 - Appendix

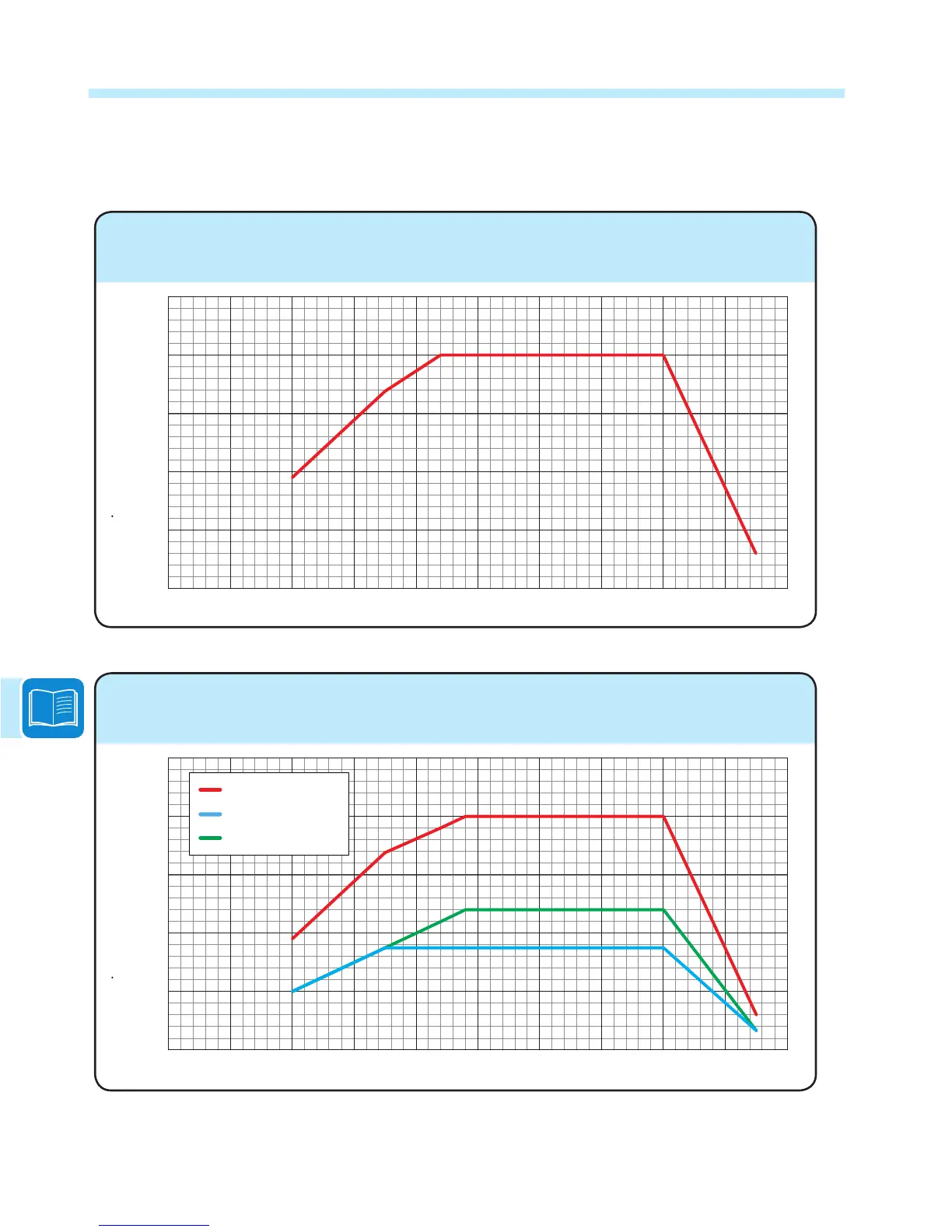

Power reduction due to input voltage
The following graphs show the automatic reduction in output power when the input voltage is too high or too
low.
0
5000
10000
15000
20000
25000
Pout [W]
Vin [V]
0 100 200 300 400 500 600 700 800 900 1000
TRIO 20.0kW- Pout vs Vin parallel input configuraon
0
5000
10000
15000
20000
25000
Pout [W]
Vin [V]
0 100 200 300 400 500 600 700 800 900 1000
TRIO 20.0kW- Pin and Pout vs. Vin1/Vin2
Independent input configuraon (max channel unbalance)
Pin1 (8750max) Vs Vin1
Pout Vs Vin
Pin2 (12000Wmax) Vs Vin2
