Abov MC96F6432S Series User Manual

226
MC96F6432S
ABOV Semiconductor Co., Ltd.
VSS
R’ R’ R’ R’
VLC0 VLC1 VLC2 VLC3
VLCD
(1/4 BIAS)
VSS
R’ R’
VLC0 VLC1 VLC2 VLC3
VLCD
(1/2 BIAS)
VSS
R’R’R’
VLC0 VLC1 VLC2 VLC3
VLCD
(1/3 BIAS)
LCTEN
DISP
Contrast
Controller
LCTEN
DISP
Contrast
Controller
LCTEN
DISP
Contrast
Controller
NOTE)
3. When the external resistor bias is selected, the internal resistors for bias are disconnected.
4. When the external resistor bias is selected, the dividing resistors should be connected like the
above figure and the needed bias pins should be selected as the LCD bias function pins (VLC0,
VLC1, VLC2, and VLC3) by P4FSR register.
5. When it is 1/2 bias, the P43/VLC0 and P41/VLC2 pins should be selected as VLC0 and VLC2
functions. The other pins can be used for normal I/O.
6. When it is 1/3 bias, the P43/VLC0, P42/VLC1, and P41/VLC2 pins should be selected as VLC0,
VLC1, and VLC2 functions. Another pin can be used for normal I/O.
7. When it is 1/4 bias, the P43/VLC0, P42/VLC1, P41/VLC2, and P40/VLC3 pins should be selected
as VLC0, VLC1, VLC2, and VLC3 functions

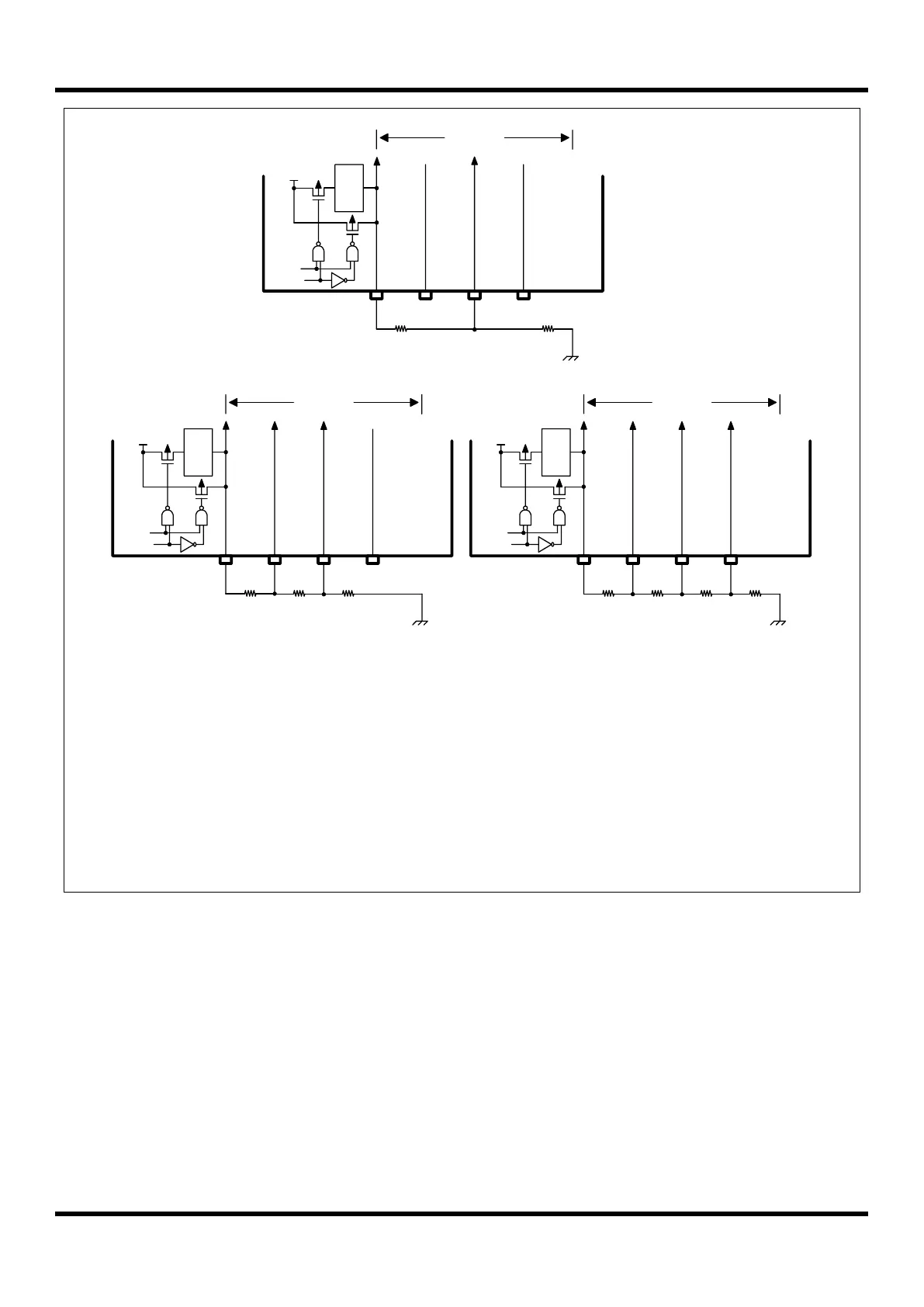

Figure 11.80 External Resistor Bias Connection
