10.2 External Interrupt
The external interrupt on INT0, INT1, INT5, INT6 and INT11 pins receivevarious interrupt request depending on the
external interrupt polarity 0 high/low register (EIPOL0H/L) and external interrupt polarity 1 register (EIPOL1) as shown
in Figure 10.1. Also each external interrupt source has enable/disable bits.The External interrupt flag 0 register
(EIFLAG0) and external interrupt flag 1 register 1 (EIFLAG1) provides the status of external interrupts.
EINT1 Pin
EINT3 Pin
EINT5 Pin
EINT7 Pin
EINT0 Pin
FLAG0
FLAG1
EINT2 Pin
FLAG2
FLAG3
EINT4 Pin
FLAG4
FLAG5
EINT6 Pin
FLAG6
FLAG7
EINT11 Pin
FLAG11
EINT12 Pin
FLAG12
EIPOL1
2
2
EIPOL0H, EIPOL0L
2
2
2
2
2
2
INT1 Interrupt
INT11 Interrupt
INT5 Interrupt
EINT10 Pin
FLAG10
2
INT0 Interrupt
EINT8 Pin
FLAG8
2
INT6 Interrupt

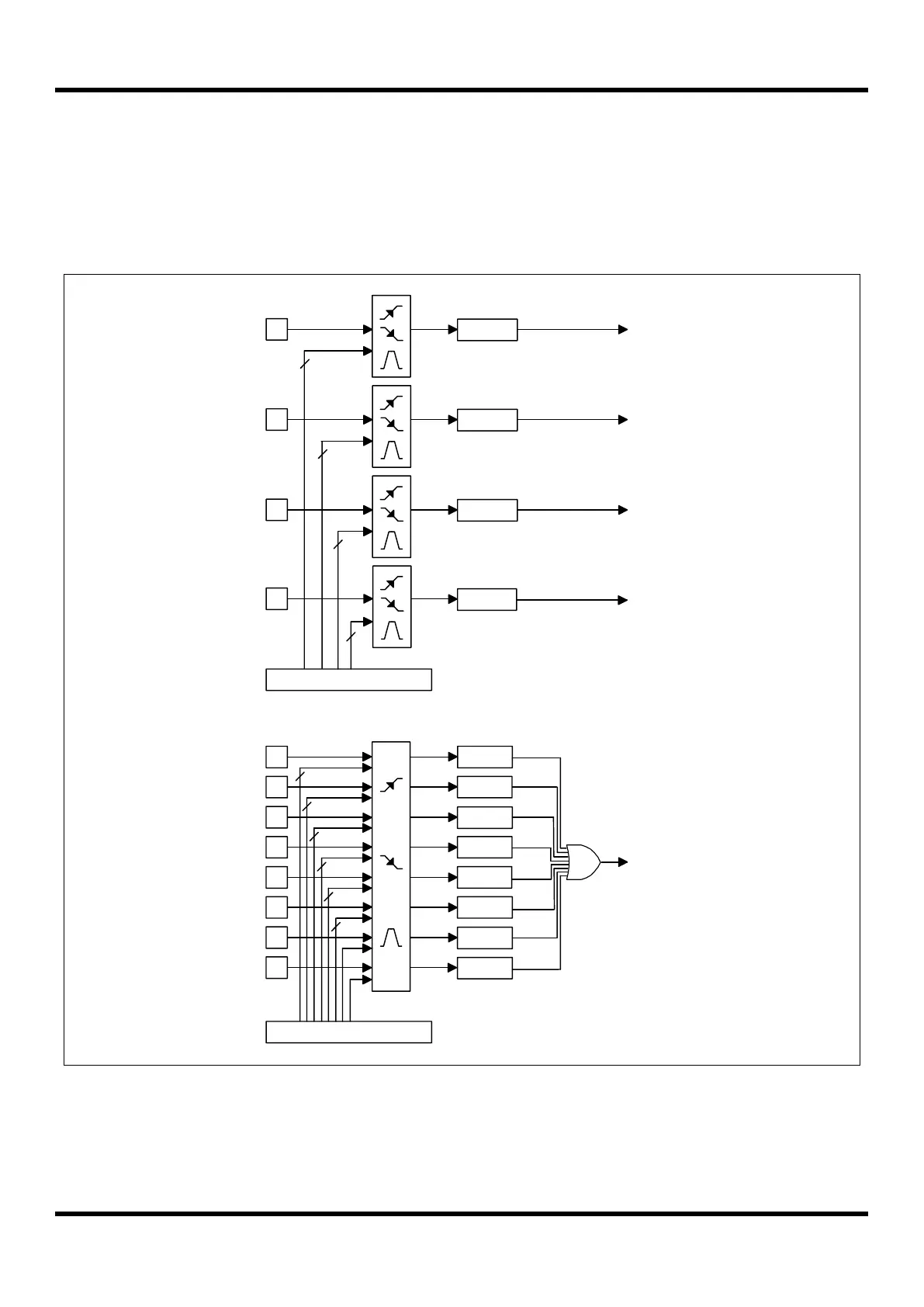

Figure 10.1 External Interrupt Description
