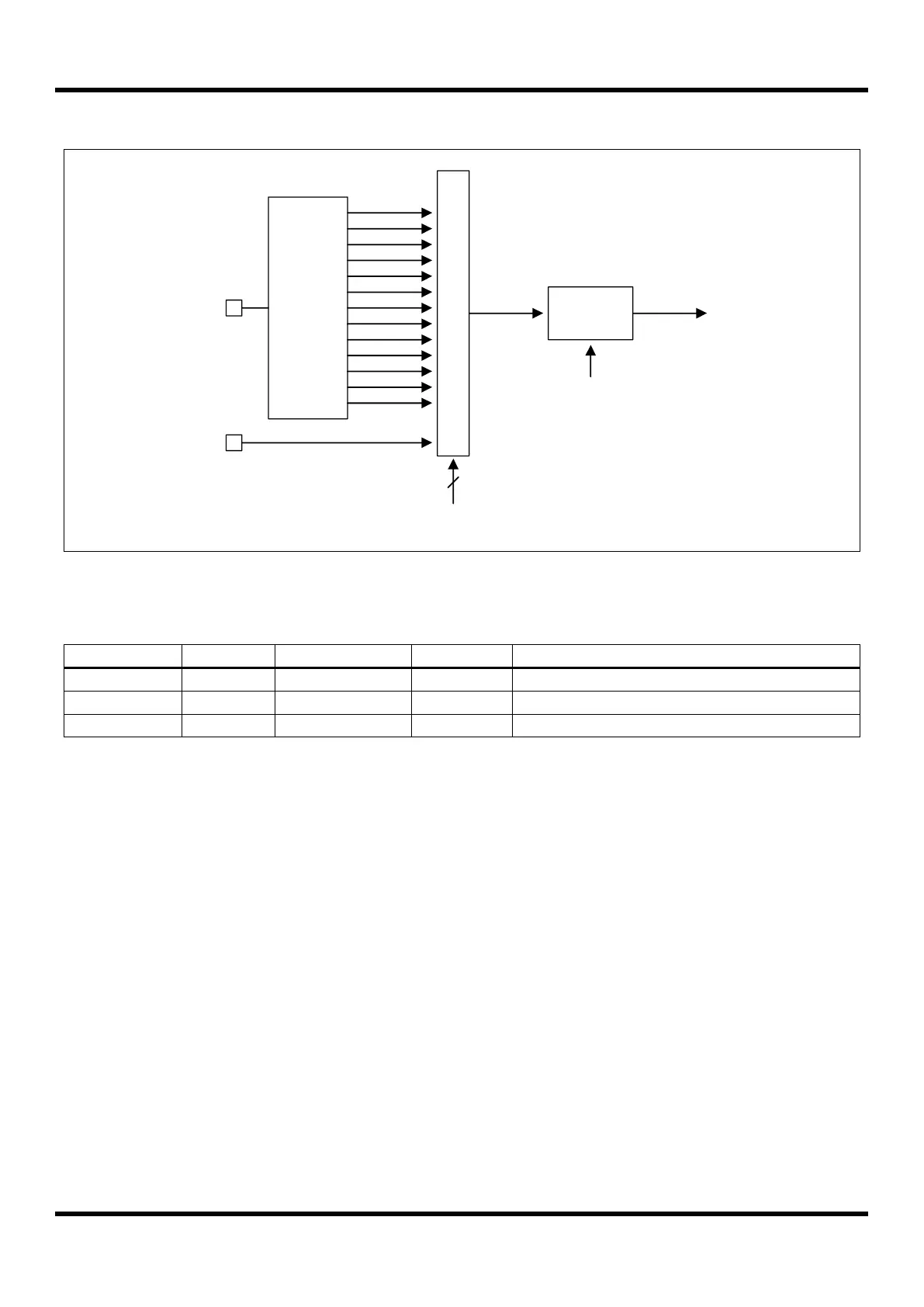

13.8 LVI Block Diagram
M
U
X
LVIF
LVIEN
2.44V
VDD
LVIREF
Reference
Voltage
Generator
2.59V
2.75V
LVI Circuit
LVILS[3:0]
2.93V
3.14V
3.38V
3.67V
4.00V
4.40V
2.10V
2.20V
2.32V
2.00V
4
Figure 13.12 LVI Diagram
13.9 Register Map
Name
Address
Direction
Default
Description
RSTFR
E8H
R/W
80H
Reset Flag Register
LVRCR
D8H
R/W
00H
Low Voltage Reset Control Register
LVICR
86H
R/W
00H
Low Voltage Indicator Control Register
Table 13.3 Reset Operation Register Map
13.10 Reset Operation Register Description
The reset control register consists of the reset flag register (RSTFR), low voltage reset control register (LVRCR), and
low voltage indicator control register (LVICR).
