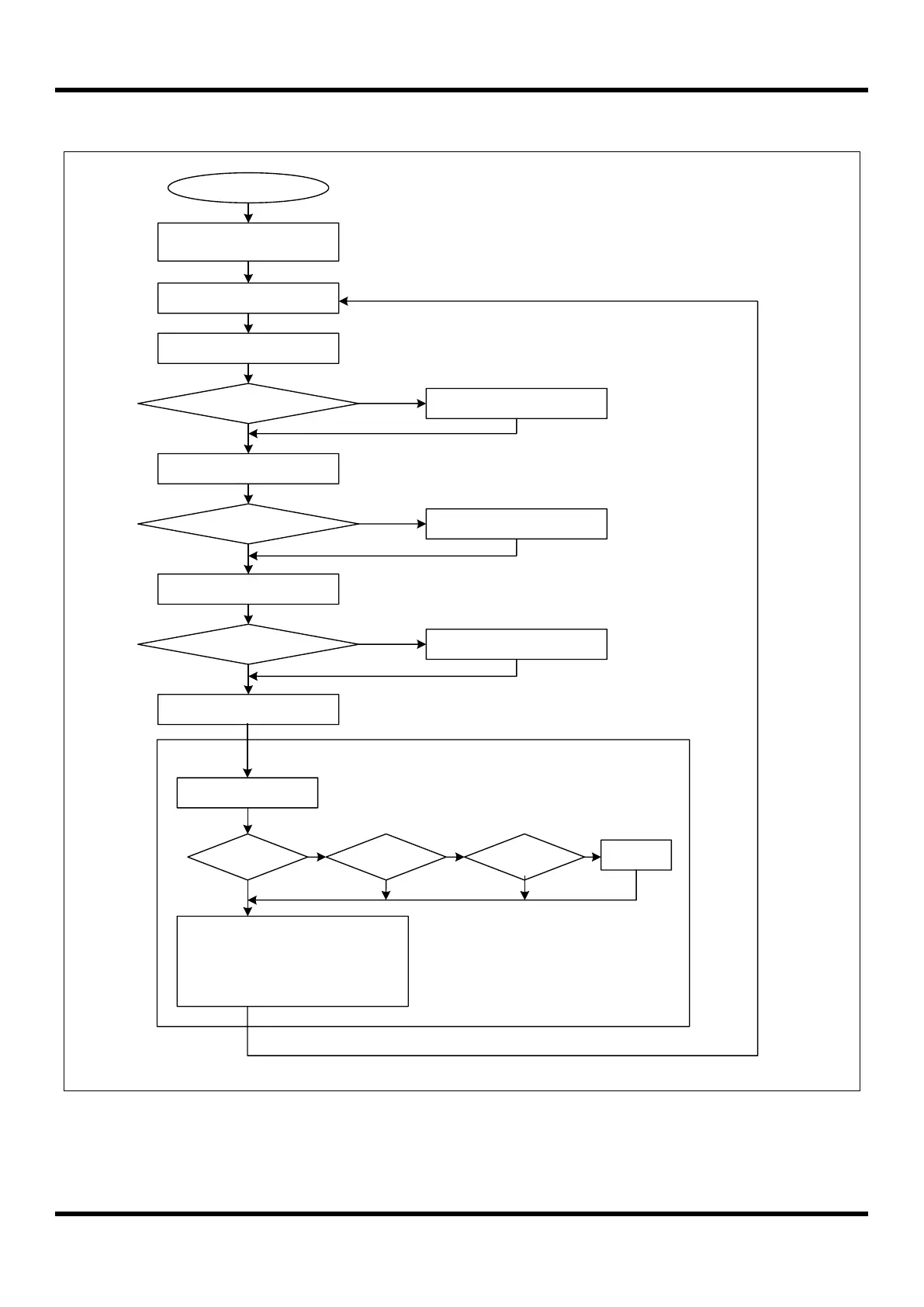

 Flowchart
Initial
Set LVR/LVI more than 2.0V
Start Main Loop
Working
Start
Write Flash? Set User_ID1
Working
Check User_ID1? Set User_ID2
Working
Check User_ID2? Set User_ID3
Working
Yes
Yes
Yes
No
No
No
Write Flash
Clear User_ID1/2/3
Clear FIDR
Clear FMCR
Set FSADRH/M/L to Dummy Addr
Check User_ID1/2/3
Set FSADDRH/M/L
Set FIDR
Set FMCR
Check LVI
Yes
Yes
No
No
Check Flash Addr
Min/Max
No
Yes
①
②
③
③
③
④
⑤
⑥
⑤ ⑤
