MC96F6432S

ABOV Semiconductor Co., Ltd.

To application circuitDSCL(I)

DSDA(I/O)

R1 (2kΩ ~ 5kΩ)

To application circuit

R2 (2kΩ ~ 5kΩ)

VDD

VSS

E-PGM+, E-GANG4/E-GANG6

NOTE)

1. In on-board programming mode, very high-speed signal will be provided to pin DSCL and DSDA.

And it will cause some damages to the application circuits connected to DSCL or DSDA port if the

application circuit is designed as high speed response such as relay control circuit. If possible, the

I/O configuration of DSDA, DSCL pins had better be set to input mode.

2. The value of R1 and R2 is recommended value. It varies with circuit of system.

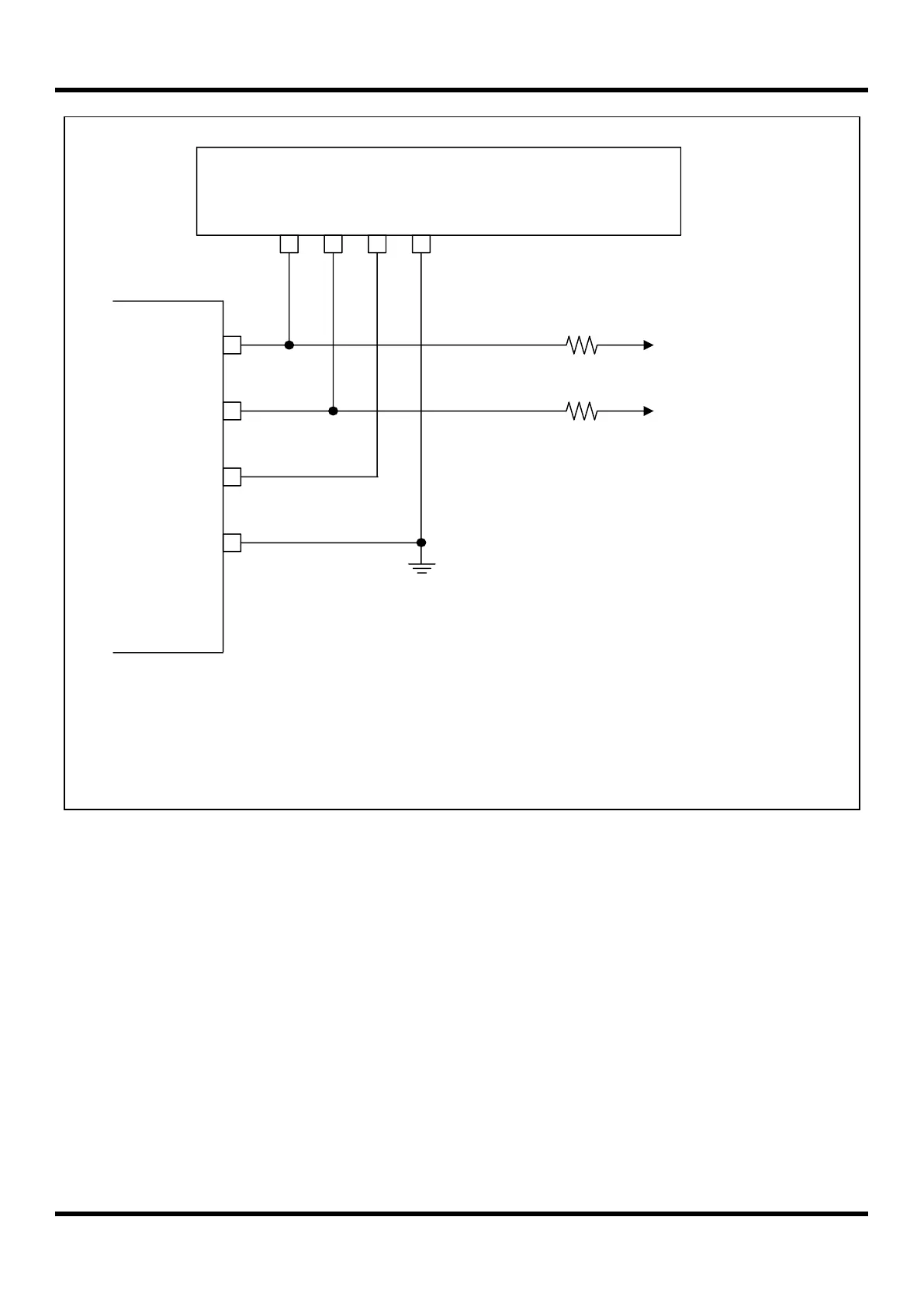

Figure 1.4 PCB design guide for on board programming
