Use the base plate as a template to mark the mounting holes. Drill holes at
the marked positions with the diameter appropriate for the wall plugs. Insert
the wall plugs.
Feed the cable through the base plate and fasten the base plate securely to
the surface.

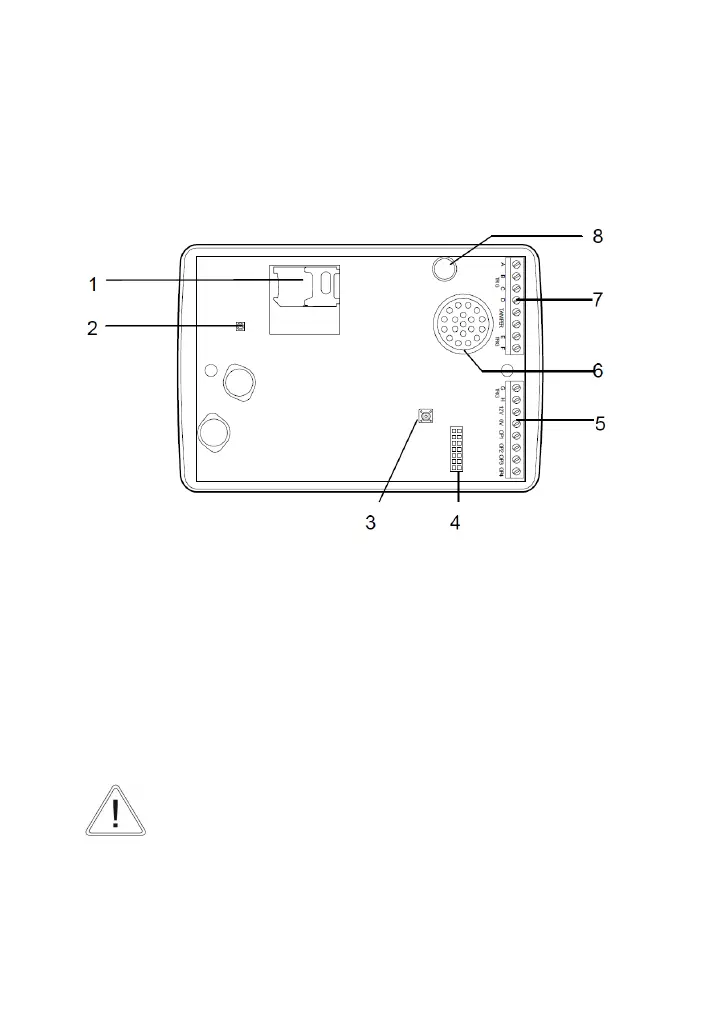

Overview of the mainboard of the front part
1 SIM cardholder (mini-SIM)
2 Antenna socket type MMCX
3 Tamper switch
4 PSTN module contact slot
5 Input G–H, power supply connection, outputs 1–4
6 Loudspeaker
7 Inputs A–D, tamper switch connection, inputs E–F
8 Microphone
9.2.1 Inserting the SIM card
Caution!
The SIM card should not be secured with a PIN. Turn off this security feature
from a mobile phone. The SIM card must be able to register on the cellular
network without entry of a PIN. It is not possible to enter a PIN on the
device.
