Tube-head characteristics
Model
MP05 or MPV05
Manufacturer
de Götzen S.r.l.
21057 Olgiate Olona (VA) - Italy
Maximum tube voltage
70 kVp
kVp accuracy
± 8 %
Maximum anodic current
7.1 mA
Anodic current accuracy
± 10 %
Duty cycle
1 : 16
Reference loading conditions related to
maximum energy input to the anode
1125mAs/h @70 kVp
Nominal power
0.50 kW (70 kVp - 7.1 mA)
Total filtration
≥ 2.5 mm Al eq. @ 70 kVp
HVL (Half value layer)
> 2.5 mm Al eq. @ 70 kVp
Transformer insulation
Oil bath
Target angle and reference axis
See Figure 3
Cooling
By convection
Leakage radiation at 1 m
< 0.5 mGy/h @ 70 kVp - 7.1 mA - 3s duty
cycle 1/16
Tube-head maximum thermal capacity
310kJ

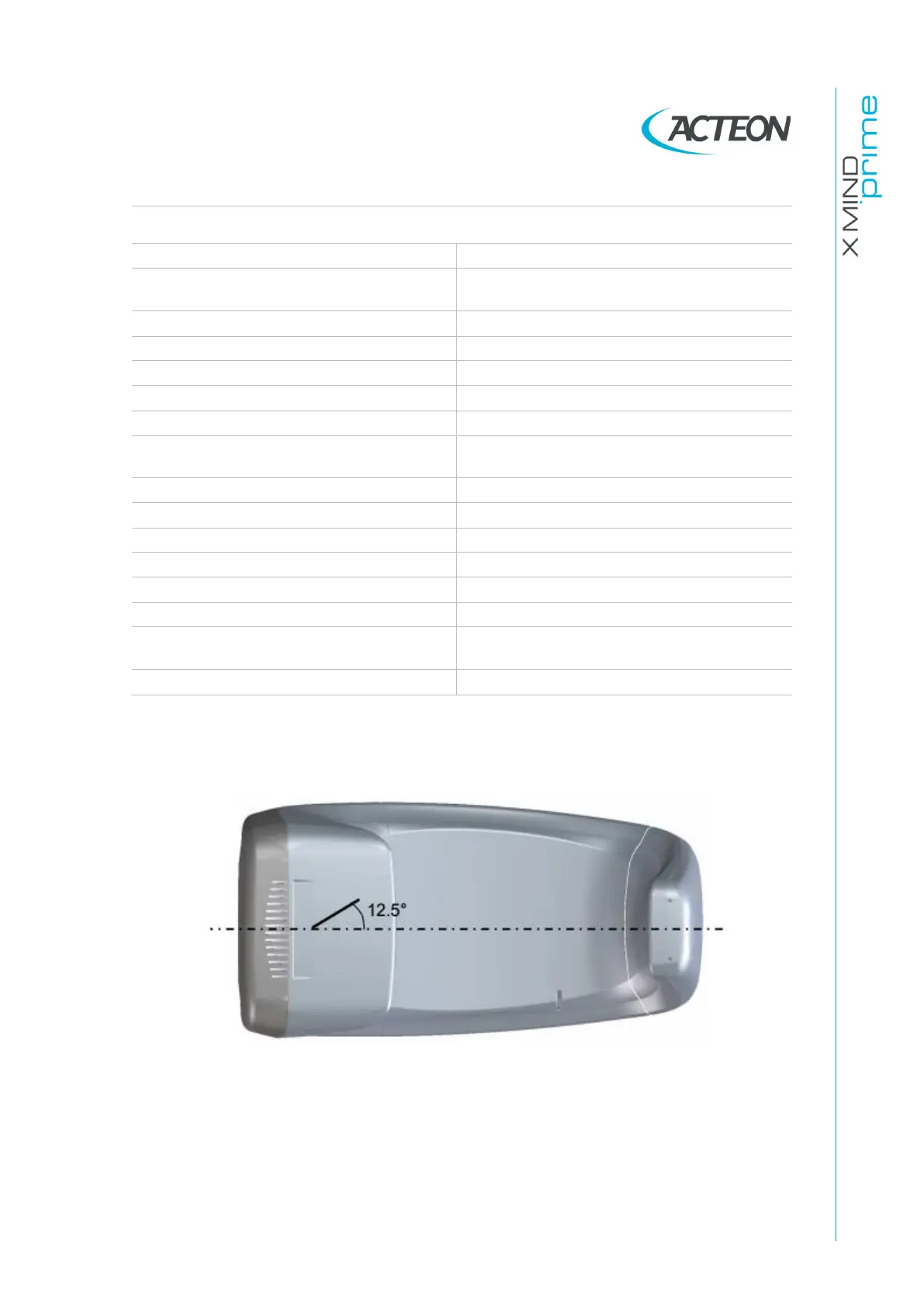

Figure 3: Tube-head target angle (view from the bottom)
