6146/6156 DC Voltage/Current Generators Operation Manual
2.2.1 Setting Source Value
2-12
3. Press or rotate one click counterclockwise.
The figure indicated by the cursor decreases by one increment.
4. Pressing or for 0.5 seconds or more increases or decreases the figure indi-
cated by the cursor incrementally. The figure stops increasing or decreasing when
any key is pressed, the source value becomes zero, or the maximum source value
is reached.
For more information on this function, refer to Section 2.2.7, "Continuous Func-
tion."
2. Setting the polarity and zero
The following is an example using the 6156.

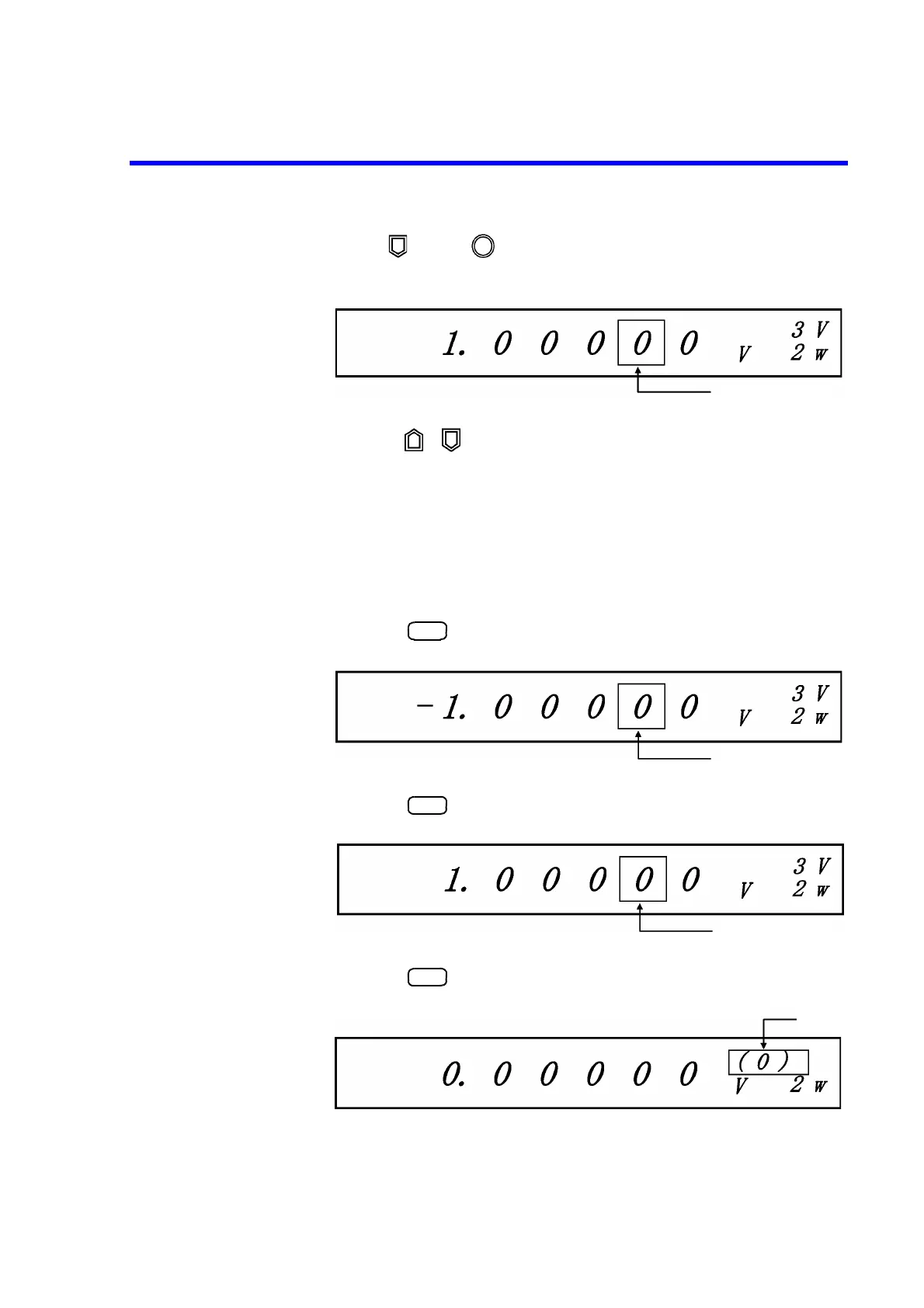

1. Pressing changes the polarity to negative.
Example using the 6156
2. Pressing changes the polarity to positive.
3. Pressing sets the source value to zero in the current range.
The source value cannot be changed by key operations in this state.
In the zero state, the polarity of the source value before the zero state is applied.
Cursor (blinking)
-
Cursor (blinking)
+
Cursor (blinking)
0
Blinking
