6146/6156 DC Voltage/Current Generators Operation Manual
2.3.1 Memory Recall Mode
2-44

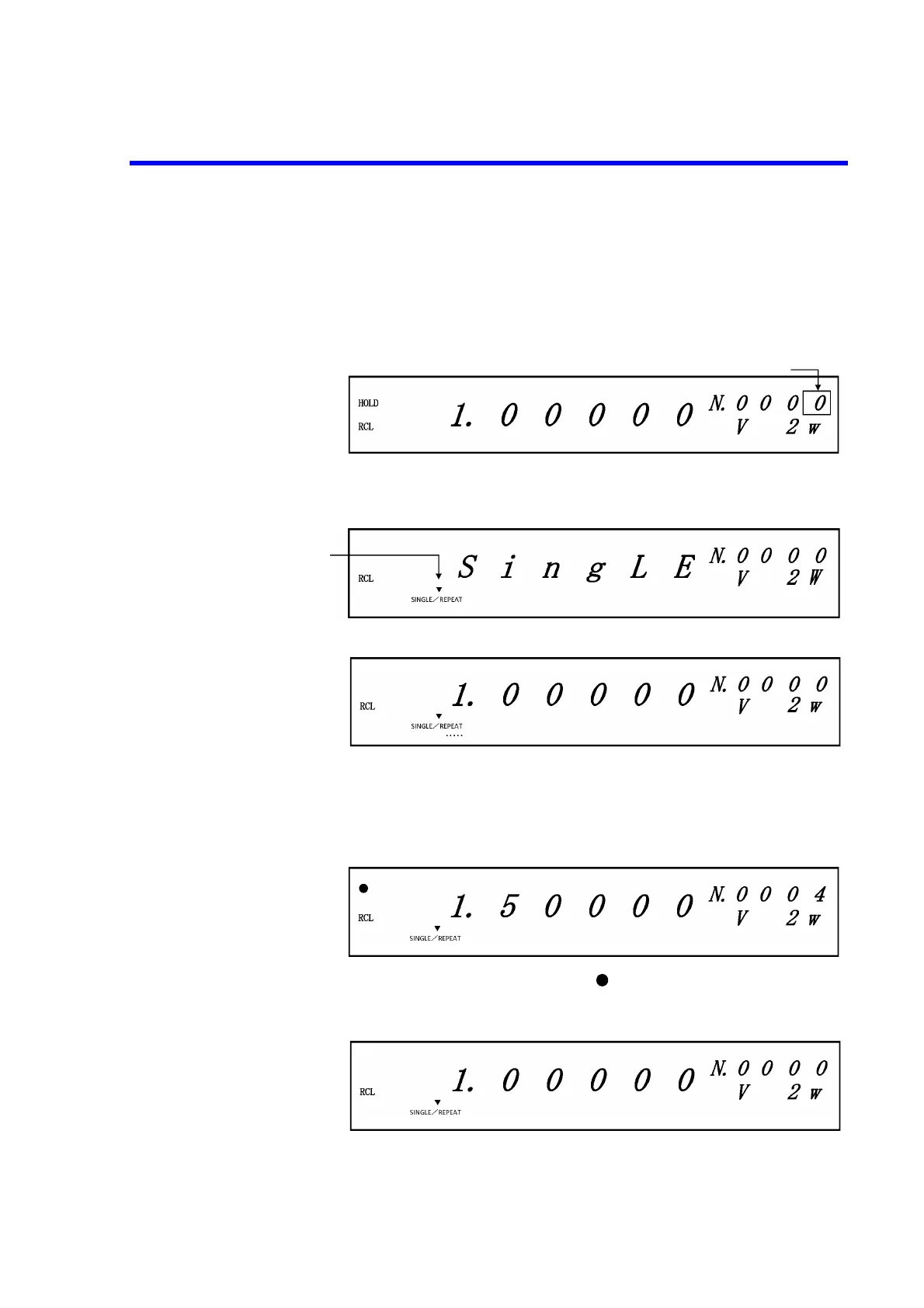

2.3.1.2.2 Executing Single Scan
1. Press PRGM MODE once on the HOME screen to set the memory recall mode.
If the program mode is switched in Operate status, the output status will become
Standby.
Example using the 6156
2. Press SCAN MODE several times to set the single scan mode.
When the single scan mode is set, "SingLE" is displayed for about a second.
The source value of the first number is recalled.
3. Press OPR to set the output status to Operate.
4. Press TRIG HOLD to start single scan.
The memory data from the first number to the last number is recalled at intervals
specified by the step time.
Every time the source value is recalled, blinks once.
5. When the last number is reached, the scan terminates returning to the first num-
ber.
Cursor (blinking)
Lightening
To Next Page
