ELECTRICAL
Battery Storage
Whenever the vehicle is not used for a period of three
months or more, remove the battery from the vehicle, ensure
that it's fully charged, and store it out of the sun in a cool,
dry place. Check battery voltage each month during storage
and recharge as needed to maintain a full charge.

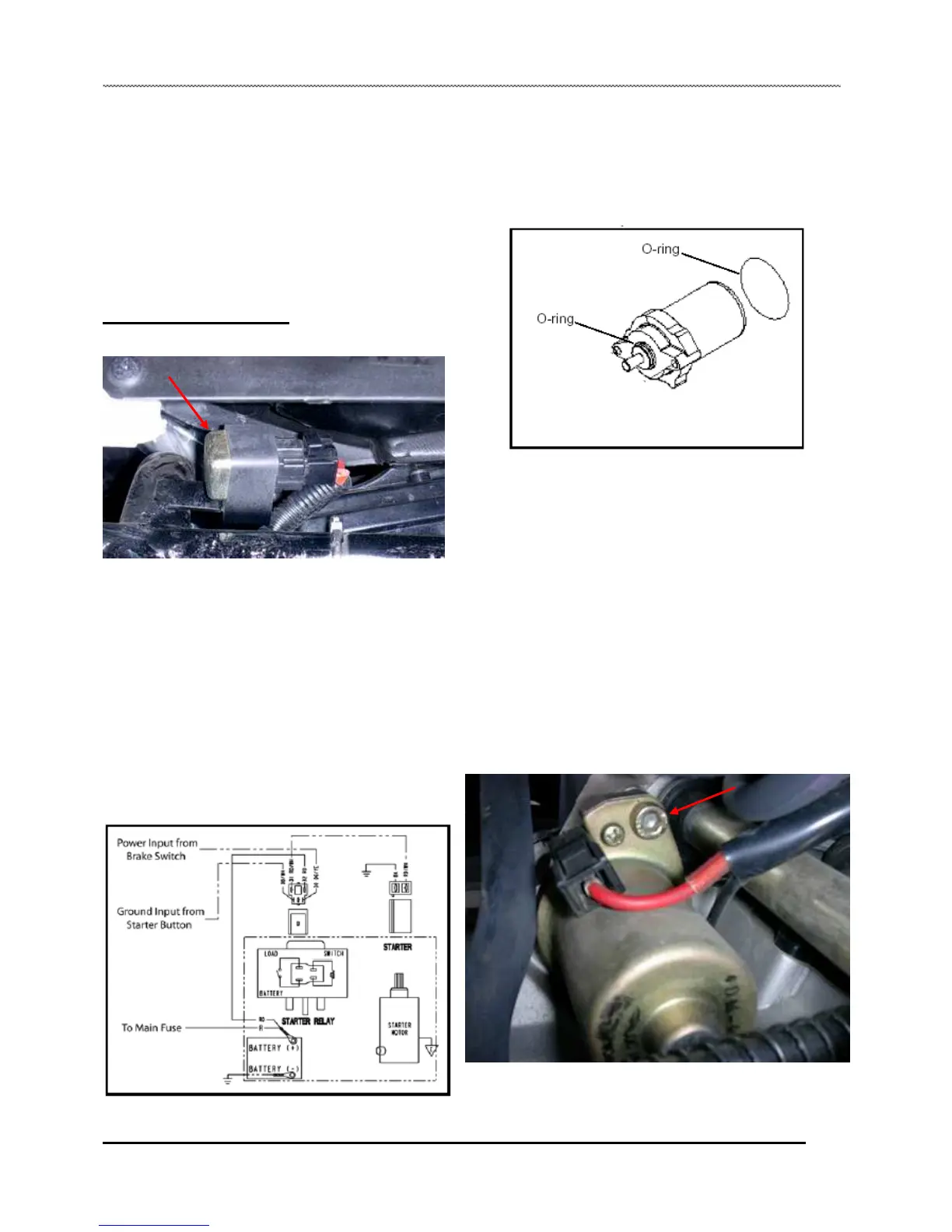

STARTER SYSTEM
Starter Relay
The starter relay consists of a simple 2-way circuit. Power is
present at the (RD) wire from the battery. Once the
switching side of the relay receives power from the brake
switch and a ground path from the starter button, battery
power is sent to the starter motor to crank the engine.
Starter Motor Service
The starter motor is a complete service part. If it is determined
that the starter motor is the failed part, replace as needed. See the
parts manual for correct part numbers.
Starter Disassembly
NOTE: Use only electrical contact cleaner to clean
starter motor parts. Other solvents may leave a
or damage internal parts and insulation.
NOTE: Some starter motors may not be serviceable.
Replacement of entire assembly may be required.
Check the parts manual for replacement part
information.
1. Disconnect the negative battery cable and starter motor
harness. Remove the (2) bolts from the starter and pull it from
the engine.
Use the illustration below when troubleshooting a “No Start”
