BODY / SUSPENSION / STEERING

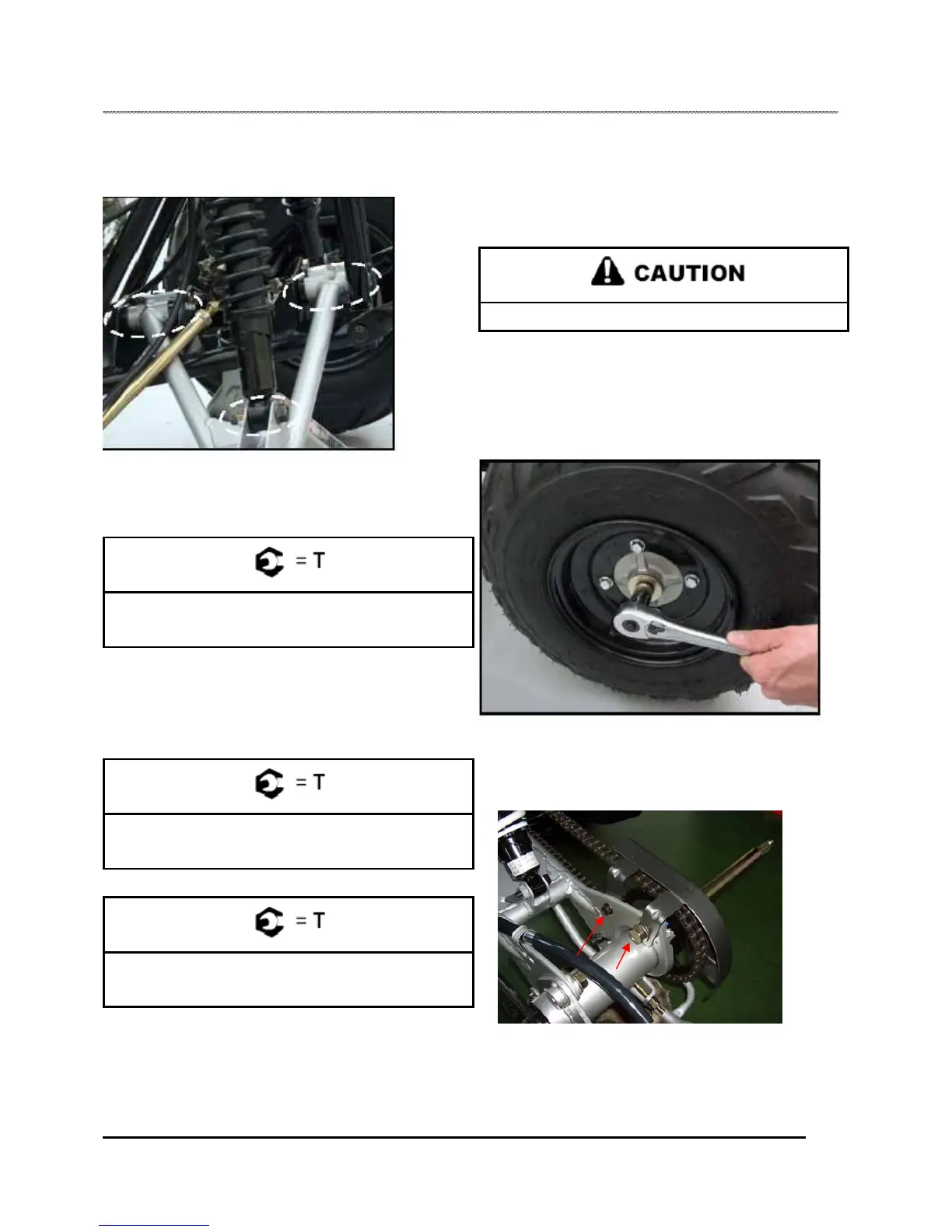

6. Remove the lower shock mounting fastener and the inner
A-arm fasteners.
SWING ARM
Removal
1. Elevate rear end of ATV off the ground far enough to
remove the rear wheel(s).
Severe injury could occur if machine tips or falls.
2. Remove the dust cap and cotter pin from 2 rear wheels
3. Remove 2 rear wheels nut and remove wheel and hub as an
assembly.
7. Remove A-arm from the ATV.
8. To reinstall, reverse steps 1 - 7. Torque all fasteners to
specification.
Inner Control Arm Bolt Torque:
34 Nm (25 ft. lbs.)
Front Shock Mounting Bolt Torque:
34 Nm (25 ft. lbs.)
Wheel Nut Torque:
59 Nm (44 ft. lbs.)
3. Remove the chain protector cover
.
6.8
