BODY / SUSPENSION / STEERING

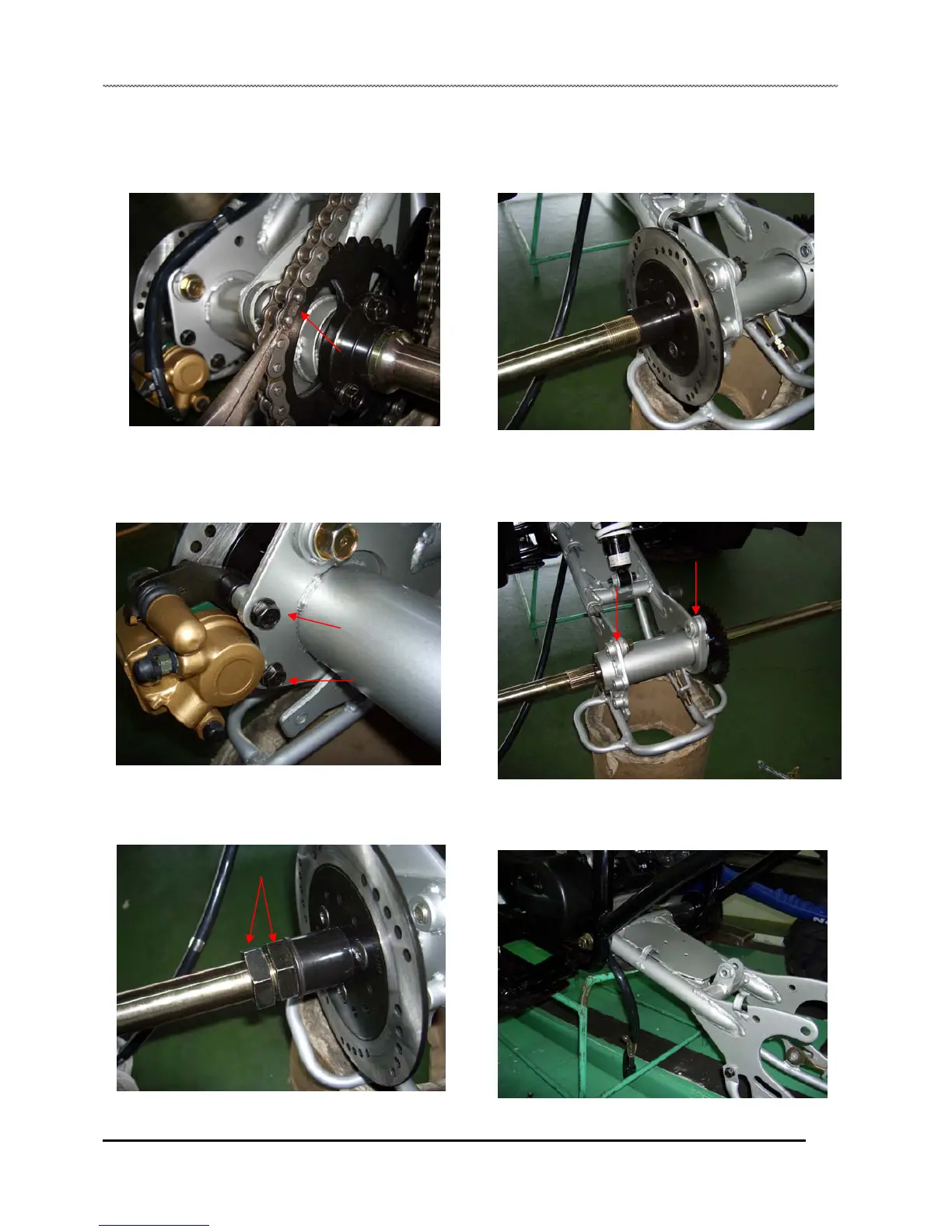

4. Take off the master link from chain then remove chain from
sprocket.
8. Remove disc from rear axle.
5. Take off 2 bolts from caliper then remove caliper.
6. Ensure don’t loosen brake oil tube bolt.
9. Remove 4 axle hub bolts from swing arm.
10. Slide axle out of the axle housing and rear sprocket and
remove the housing and sprocket assemblies.
7. Loosen 2 nuts from rear axle. 9. Remove a through bolt lower shock mouting bolt from
swing arm and remove swing arm from body.
