MAINTENANCE
Toe Adjustment
If toe alignment is incorrect, measure the distance between
vehicle center and each wheel. This will tell you which tie
rod needs adjusting.
NOTE: Be sure the handlebars are straight ahead
before determining which tie rod(s) need
adjustment.
To adjust toe alignment:
• Hold tie rod end to keep it from rotating.
• Loosen jam nuts at both end of the tie rod.
• Shorten or lengthen the tie rod until alignment is as
required to achieve the proper toe setting - (1/8” to 1/4”).

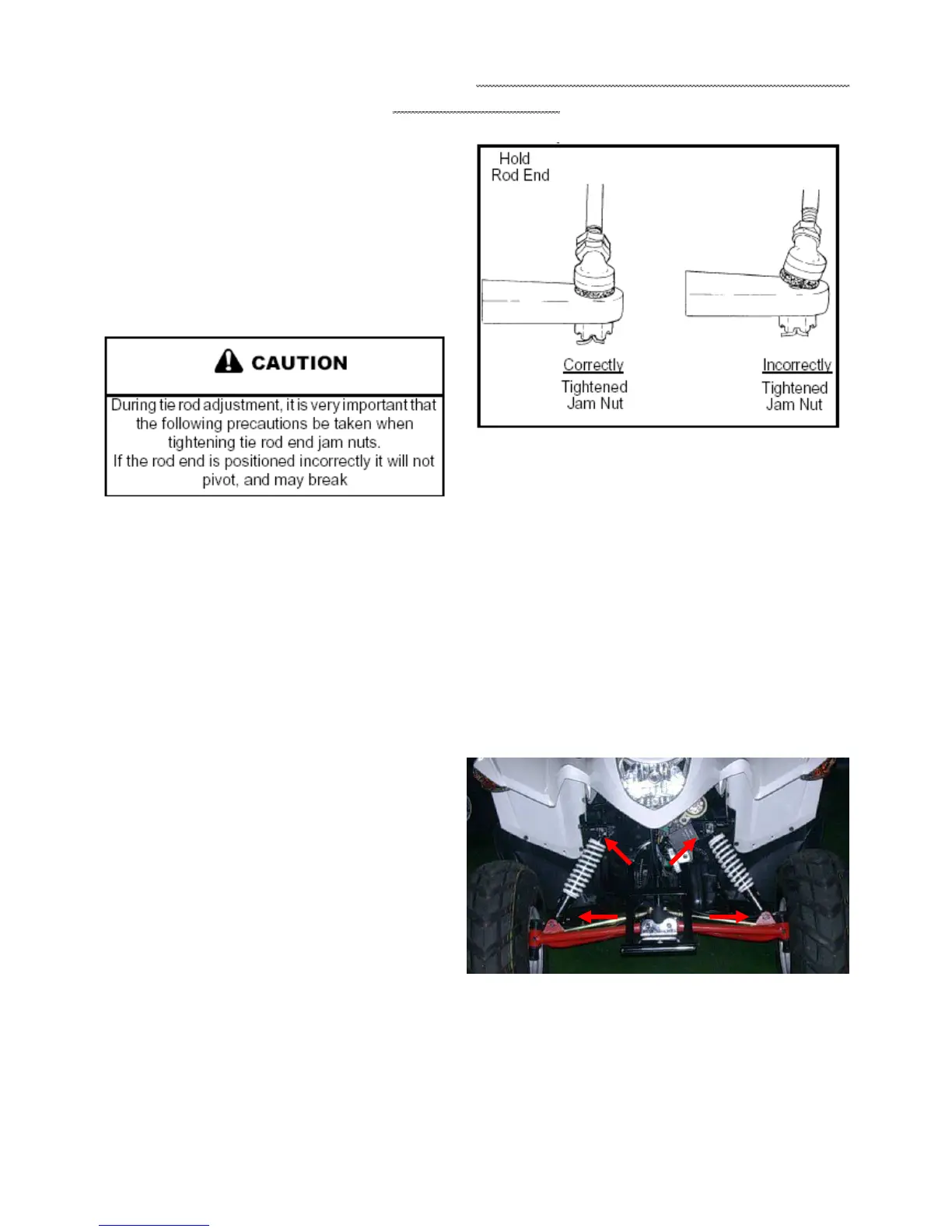

•Important: When tightening the tie rod end jam nuts, the rod
ends must be held parallel to prevent rod end damage and
premature wear. Damage may not be immediately apparent if
done incorrectly. See illustration.
Front Suspension Inspection
Compress and release front suspension. Damping should be
smooth throughout the range of travel. Inspect the front
shocks and springs to ensure proper function. If the shock is
leaking oil, replace it.
Check all front suspension components for wear or damage.
Check shock mounting fasteners to ensure they are tight.
Inspect A-arm and weldments for any sign of damage.
To Next Page
