2.13
MAINTENANCE
TRANSMISSION AND FINAL DRIVE
Transmission Lubrication
The transmission lubricant level should be checked and
changed in accordance with the maintenance schedule.
Remember to:
• Verify the vehicle is level before proceeding.
• Verify the vent hose is routed properly and is not
obstructed.
• Follow instructions to check / change transmission fluid.
Transmission Lubricant Level
The gear case fill plug is located on the side of the gear
case on the right side of the ATV. Maintain the lubricant
level at the bottom of the fill plug hole threads.uld be
checked monthly and changed annually.
1. Position the vehicle on a level surface.
2. Remove the fill plug.
3. View the lubricant level through the fill hole.
4. If the level is low, add the recommended lubricant.
5. Reinstall the fill plug.

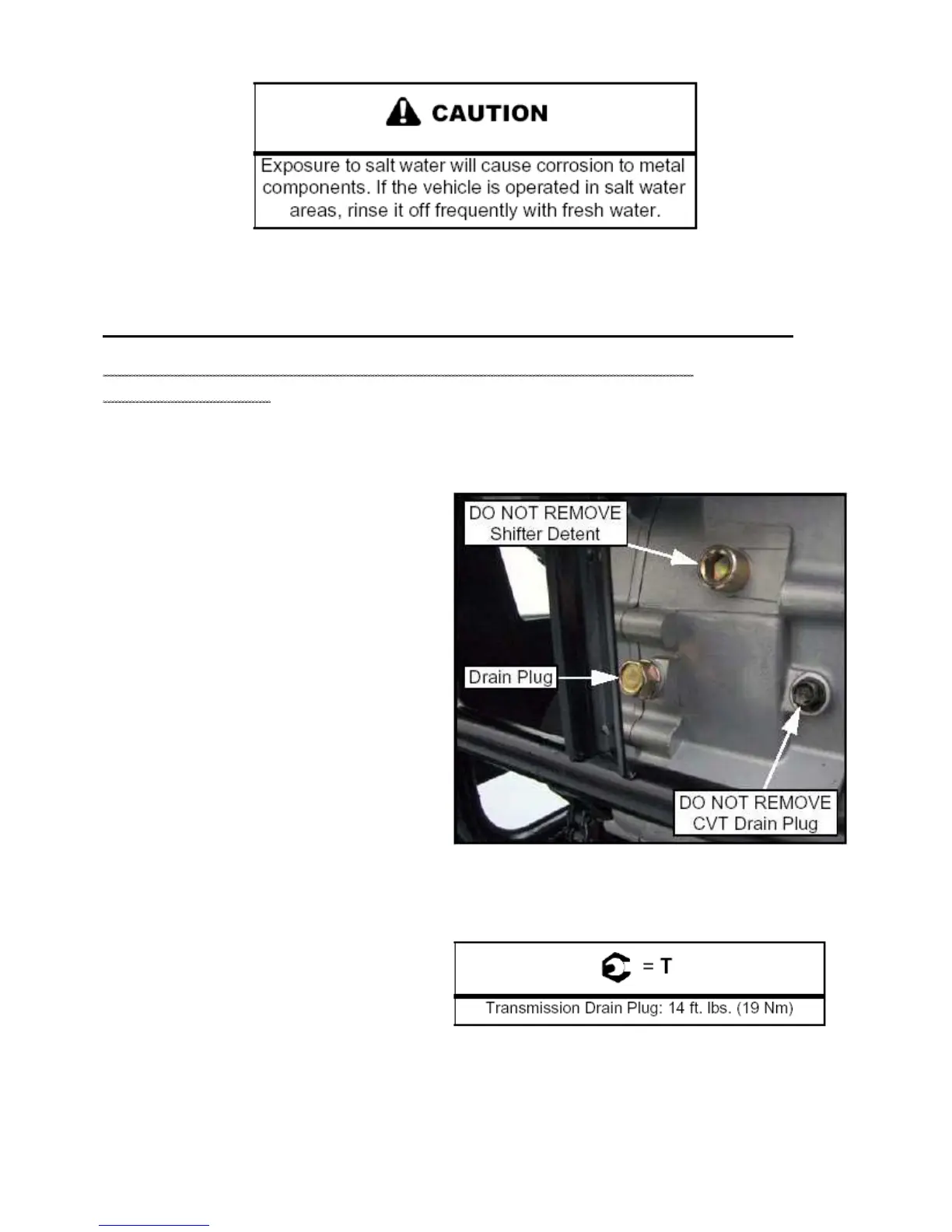

Transmission Lubricant Change
1. Position the vehicle on a level surface.
2. Remove the fill plug.
3. Place a drain pan beneath the transmission.
4. Remove the drain plug and allow the lubricant to drain
completely.
5. Clean and reinstall the drain plug. Torque to 14 ft. lbs.
(19 Nm).
