CVT SYSTEM

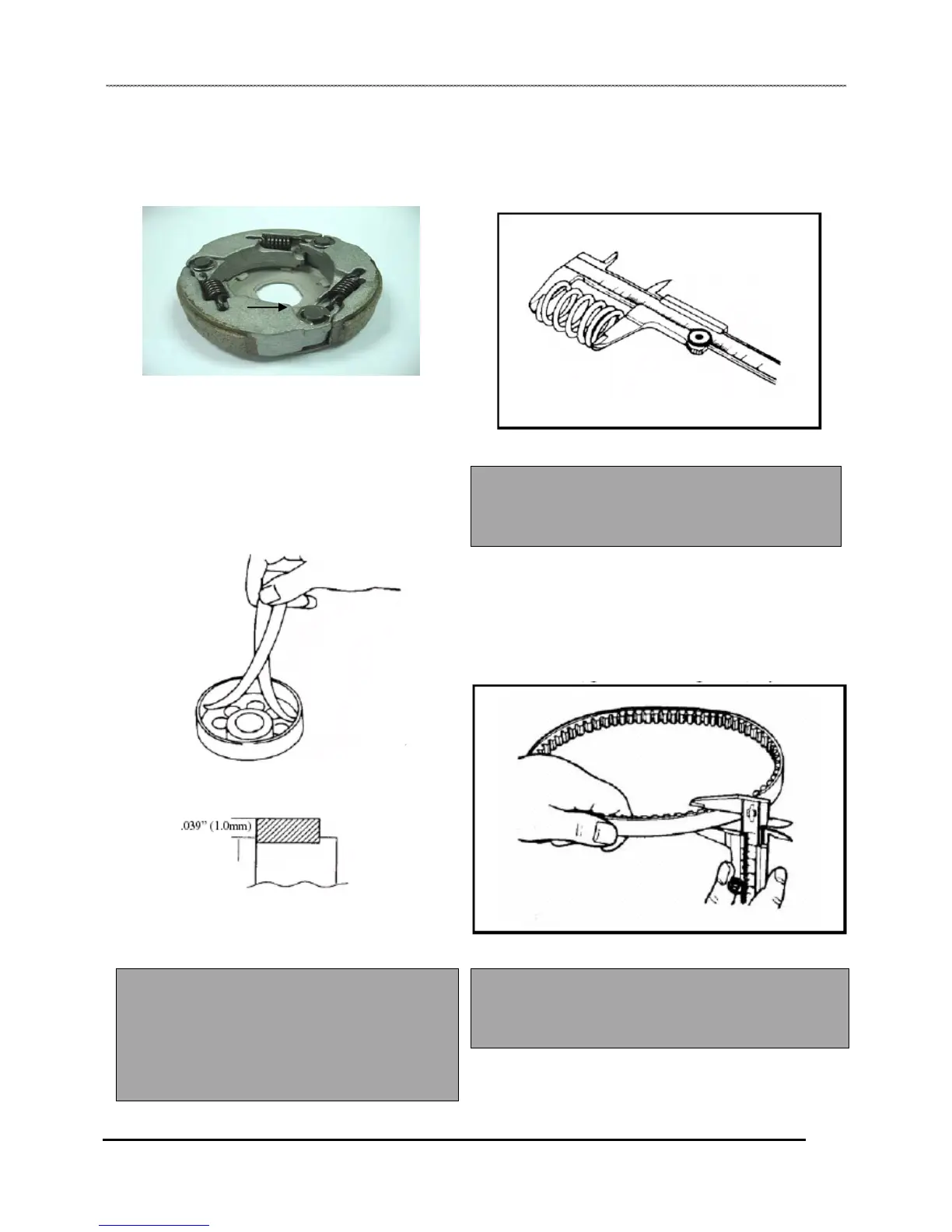

7. To replace friction shoes, remove E-clips that retain the
backing plate. Use a suitable tool to remove and install the
return springs connecting the shoes, using care not to stretch
the springs more than is necessary.
9. Use a vernier caliper to check the length of the compression
spring. At full extension, the measurement should be no less
than 69.7 mm.( 2.74”) . If out of specification, replace the
spring.
8. Inspect the condition of the secondary clutch drive hub.
Measure the inside diameter of the hub using a caliper and
compare to specification. If either of these measurements
exceeds the limit, replace the drive hub.
Driven Compression Spring Length
Service Limit: 69.7mm (2.74”)
10. Inspect the surface of the drive belt for uneven wear or
grease deposits. Using a vernier caliper, measure the width of
the belt. The service limit of the belt is .626” (15.9 mm). If the
width of the belt is less than the service limit, or if the belt is
worn, glazed or hour-glassed, replace.
Driven Clutch Hub I. D.
Service Limit: 112.5 mm (4.43”)
Driven Clutch Friction Shoe Thickness
Service Limit: 1.0mm (.039”)
