Shaft Disassembly
8. If radial movement in Step 7 was excessive, support the
forward gear and press the shaft through the spacer to
disassemble it from the shaft.
9. Remove the sliding gear from the shaft.
10. Remove the snap ring and thrust washer to access the
reverse gear .
Shaft Assembly
11. Assemble the reverse gear , washer, a new snap ring, and
the sliding gear on the shaft.

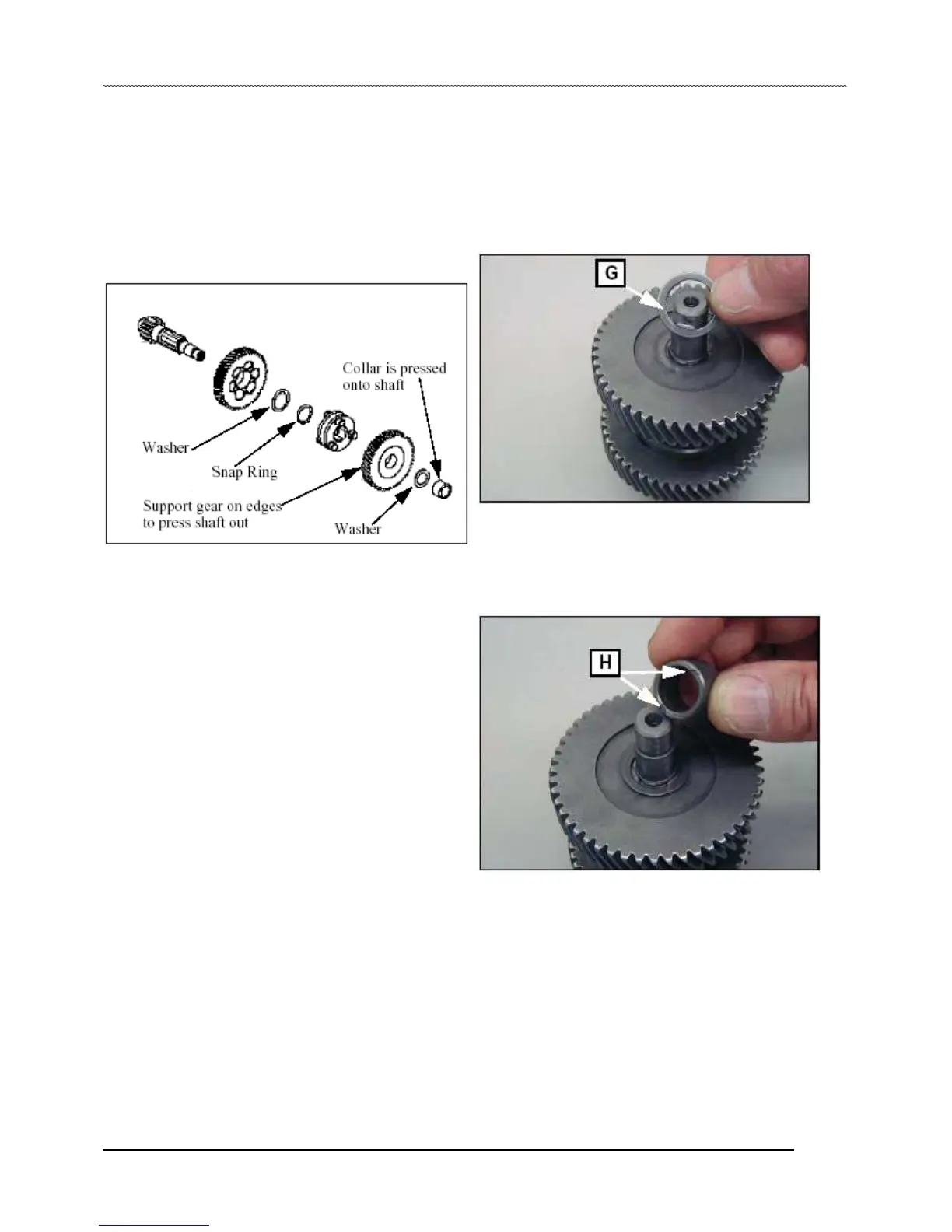

12. Replace gear and place it on the shaft, followed by the
washer (G) as shown.
13. Grooves (H) on spacer face the washer. Press spacer onto
shaft until firmly seated against the step on the shaft.
4.18
