AEQ FORUM
Digital audio mixer for broadcast applications
73
To set a programmable key, simply click on it with the mouse and select from the list on the right
to associate action. The available options are:
• “None”: no action associated.
• “General”: associated with activation of GPI and/or GPO.
• “Salvo”: allows you to configure activation/deactivation of a Salvo.
• “Codec”: associated with remote control of external communications equipment through
GPIs and GPOs.
• “Multiplex”: allows you to make a quick management of signal routing toward a “MPX”
type internal summing bus (these buses are typically used for sending to codecs,
hybrids or other auxiliary destinations).
• “Cue Reset”: allows you to cancel all the signals sending to the CUE bus at that
moment.
• “Orders”: allows you to send the orders microphone to the selected output channel.

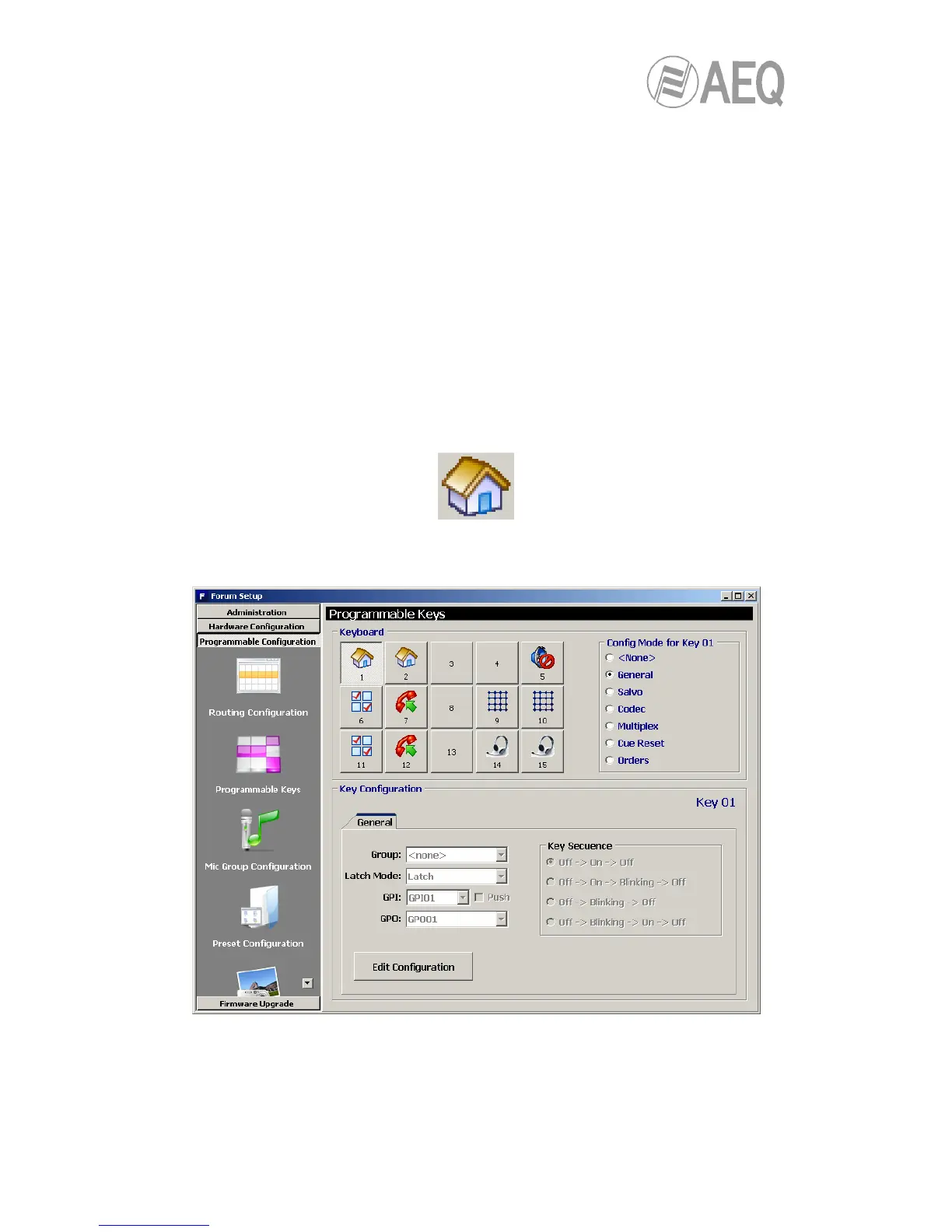

4.3.2.2. Configuration of “General“ programmable keys.
Programmable keys that are set to “General” are used to activate GPIs and GPOs. A key set to
this function is assigned with a dedicated icon.
The lower part of the “Programmable Keys” submenu will show the associated options for
“General” type keys, when this configuration mode is selected:
In order to be able to configure the programmable key (or edit a previously created
configuration), you have to press the “Edit Configuration” button, to active and allows you to
configure the following fields:
