AEQ FORUM
Digital audio mixer for broadcast applications
94
4.4. “Firmware Upgrade” menu.
This menu allows you to update the firmware versions for the AEQ FORUM, allowing for the
implementation of new features and developments in future versions. Clicking on the “Firmware
Upgrade” section on the main screen, the left side of the screen will show you the list of
submenus, which includes:
• “Tree View”: provides a global view of the system, providing information regarding the
currently installed firmware versions for each of the integrated and optional modules
that AEQ FORUM mixing console contains.
• “Upgrade View”: shows information regarding the system functional module to be
updated and the overall progress of the Firmware Upgrade operation.
• “Log View”: log containing all the actions associated with an upgrade process.
IMPORTANT NOTE: Any operation in this “Firmware Upgrade” section of the Forum Setup
application should only be accomplished by qualified personnel in possession of all necessary
technical information relative to this system and with the possibility to establish a direct
communication with AEQ's technical support (sat@aeq.es).
In order to execute this menu available options, it is necessary that the Forum Setup application
is in direct communication with the AEQ FORUM mixer, through one of the 2 Ethernet ports. In
case there is no connection to console, the associated submenus will be shown blank.
4.4.1. “Tree View” submenu.

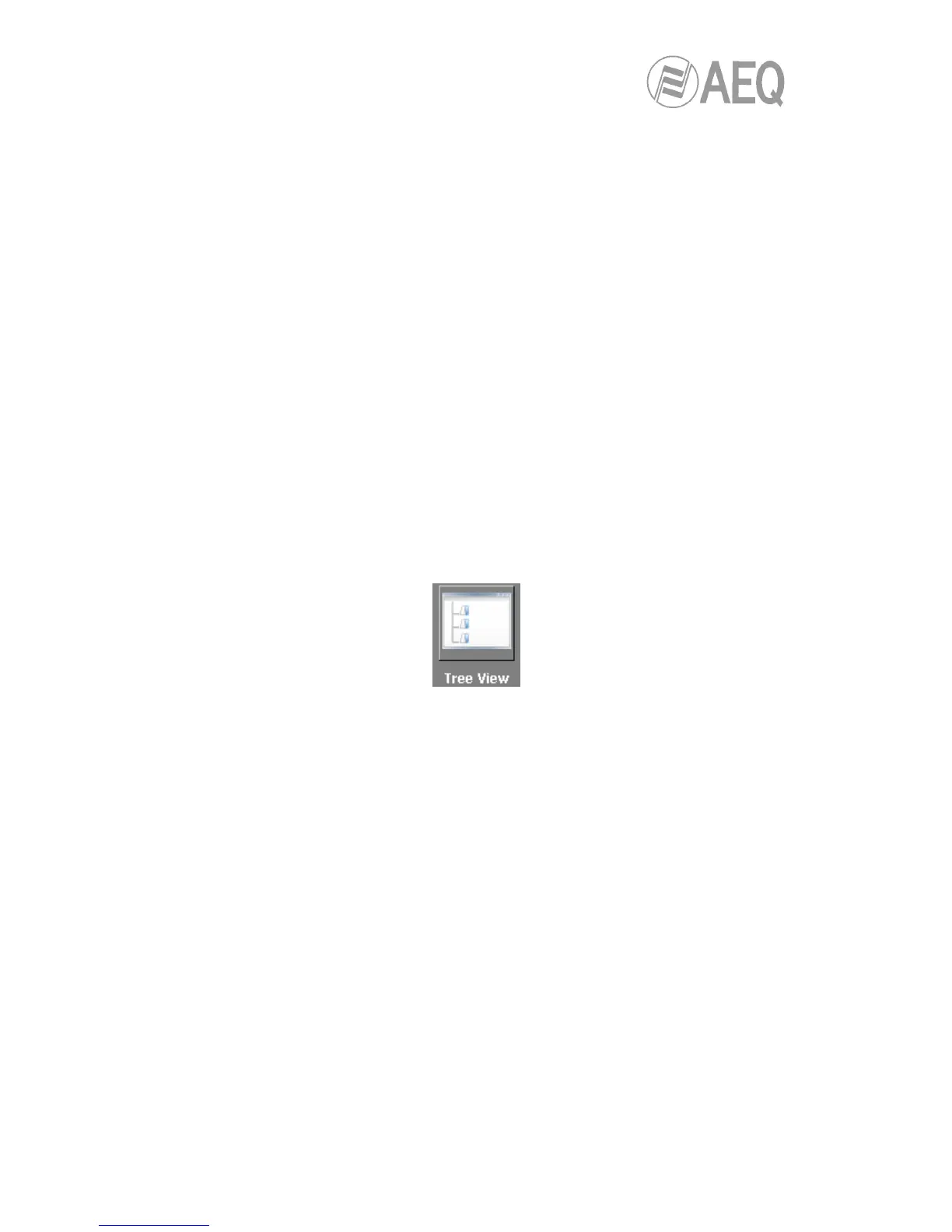

“Tree View” submenu is accessed, from the drop-down menu “Firmware Upgrade”, by clicking
on the icon:
“Tree View” submenu provides a global view of the system, with a tree structured diagram,
providing information regarding the currently installed firmware versions for each of the
integrated and optional modules that AEQ FORUM mixing console contains.
