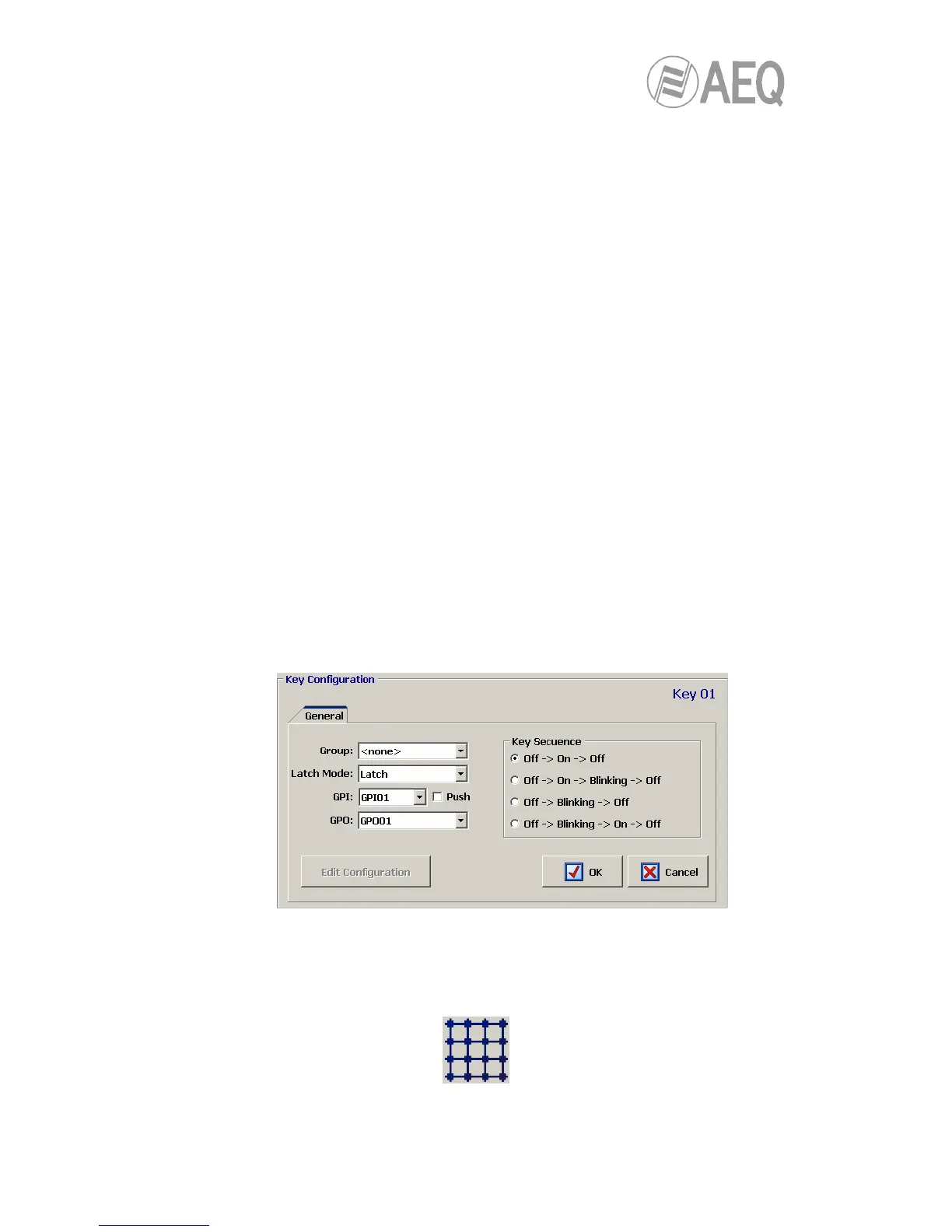

• “Group”: allows you to assign the programmable key to a group. Assign a key to a
group when you need to define exclusive operation between various programmable
keys (the activation of one of them entail the deactivation of the one active at that
moment). You can create up to 8 programmable keys groups. “None” indicates that key
is not assigned to a group.
• “Latch Mode”: allows you to configure the key as “Latch” or “Non Latch”, so after you
press it, the key stays fixed or not. When a key is configured as “Non Latch”, it executes
the associated function only while it remains pressed.
• “GPI”: allos you to select the physical GPI input, in the section of system common I/O's,
associated to the programmable key activation.
• “Push”: when you associates a GPI and a GPO to the same key and you active this
checkbox, the GPO is automatically activated when GPI is received. When “Push”
checkbox is not active, this automatic activation is not made.
• “GPO”: allos you to select the physical GPO output, in the section of system common
I/O's, associated to the programmable key activation.
• “Key Secuence”: allows you to select the operating sequence of the programmable
key:
o “Off-On-Off”: initially the key is off, it turns on when the programmable key is
pressed and off when the key is pressed again. From this point the cycle is re-
initiated.
o “Off-On-Blinking-Off”: initially the key is off, it turns on when the
programmable key is pressed, starts blinking when the key is pressed again
and turn off when it’s pressed again. From this point the cycle is re-initiated.
o “Off-Blinking-Off”: initially the key is off, it starts blinking when the
programmable key is pressed and off when the key is pressed again. From this
point the cycle is re-initiated.
o “Off-Blinking-On-Off”: initially the key is off, it starts blinking when the
programmable key is pressed, turns on when the key is pressed again and turn
off when it’s pressed again. From this point the cycle is re-initiated.
• “OK”: allows you to accept the created or edited configuration.
• “Cancel
”: allows you to reject the created or edited configuration. No change you may
have made is saved.
4.3.2.3. Configuration of “Salvo” programmable keys.
Programmable keys that are set to “Salvo” are used to activate/deactive a Salvo or group of
conecctions and/or disconnections of several cross-point. A key set to this function is assigned
with a dedicated icon.
The lower part of the “Programmable Keys” submenu will allow you to configure the Salvo
content.
