AEQ FORUM
Digital audio mixer for broadcast applications
22

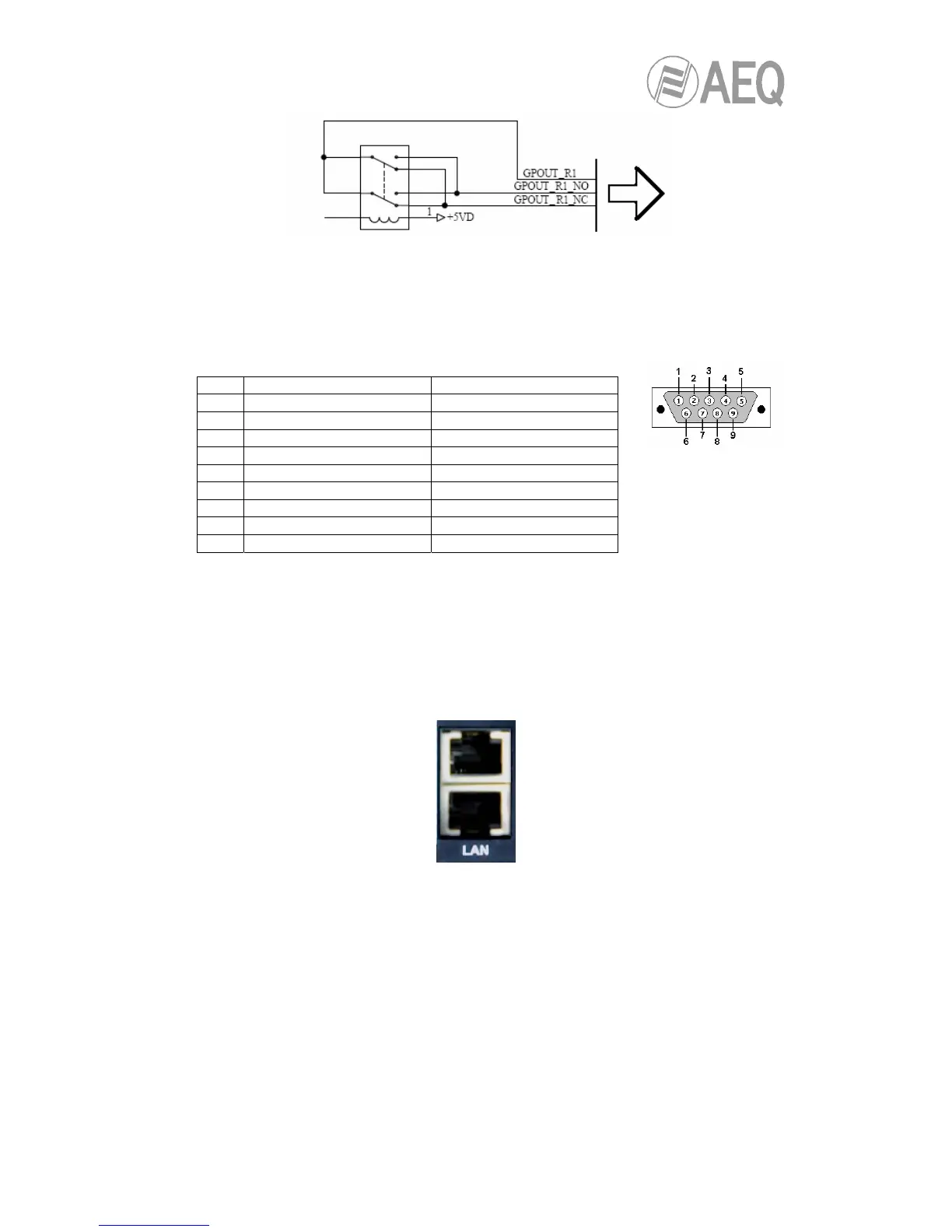

Electronic associated with physical contact GPO
In order to simplify the installation phase, AEQ offers a prefabricated wiring kit specifically for
GPO outputs: CAB FR GPR, female DB9 connector soldered to 4 meters of cable open-end
termination for GPO. More information in section 2.2.4 of this manual.
GPO Relay outputs (2 x SUB-D male 9 pin):
Pin RELAY 1,2 connector RELAY 3,4 connector
1 GPOUT_RL1 GPOUT_RL3
2 GPOUT_RL1_NO GPOUT_RL3_NO
3 Not connected Not connected
4 Not connected Not connected
5 GPOUT_RL2_NC GPOUT_RL4_NC
6 Not connected Not connected
7 GPOUT_RL1_NC GPOUT_RL3_NC
8 GPOUT_RL2 GPOUT_RL4
9 GPOUT_RL2_NO GPOUT_RL4_NO
On request, this wiring kit can be supplied with connectors explicitly specified by the customer.
For more information please refer to AEQ sales department or authorised distributors.
2.2.2.2. Ethernet ports.
In the area of common inputs and outputs of the AEQ FORUM are two 10/100BaseT RJ45
Ethernet connectors to interconnect the mixing console with external devices using IP
communication protocols.
LAN (lower) and ETHERNET (top) connectors
Any of the two connectors can be used to interconnect the AEQ FORUM with an external
computer that is running the configuration software. By default, the IP address associated to
“LAN” port is 172.31.34.1 and the one associated to “ETHERNET” port is 172.26.34.1: both
addresses can be modified if you have the right user level (see section 3.4). For further
information see chapter “4. CONFIGURATION SOFTWARE” of this manual.
