AEQ FORUM
Digital audio mixer for broadcast applications
9
2.1.1.4. CUE.
This button allows you to activate a pre-fader listening to the audio channel for monitoring and
control. When activated the integrated LED is lit. It is possible to send the audio signals of
several channels to the CUE bus, acting as a summing bus.
There is the option of setting one of the programmable keys on the Control and Monitoring
section (C&M) as a general “CUE RESET” that disconnects all active signals from the CUE bus.

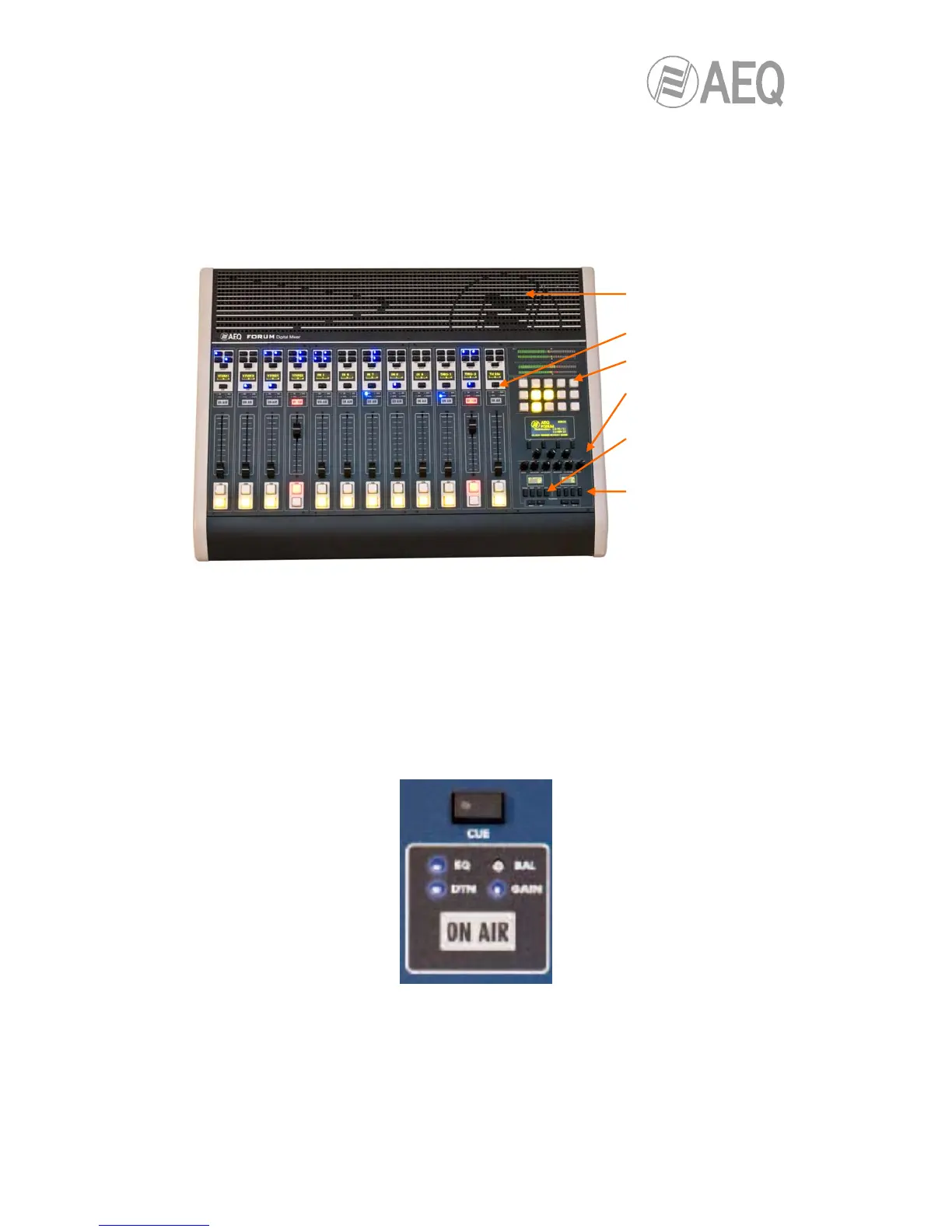

CUE signal associated controls
The CUE speaker is built-in in the upper right of the control surface, beneath the ventilation
grille, and the volume control is through an encoder in the Control and Monitoring section of the
control surface.
2.1.1.5. Indicators of active processes.
Under the “CUE” button there are four blue LEDs with corresponding labels, from left to right
and top to bottom, “EQ” (equalizer), “BAL” (balance), “DYN” (dynamic processor) and “GAIN”.
The lit status indicates the activation of any of the four processes previously mentioned in a
certain fader channel.
These four processes (EQ, dynamics, balance and gain) are controlled from the internal menu
associated with the “SELECT” button on the main screen of the Control and Monitoring section.
CUE SPEAKER
CUE SELECTION
CUE RESET
CUE VOLUME
CUE SENDING TO
SRM AND SRHP (studio
monitors and headphones)
CUE SENDING TO
CRM AND CRHP (control
monitors and headphones)
