AEQ FORUM
Digital audio mixer for broadcast applications
97
4. From this point on, the application changes automatically to “Upgrade View” screen in
order to show you the upgrading progress. See section 4.4.2 of this manual.
IMPORTANT NOTE: You should not act on the system and you must never turn off the
equipment during the upgrading process, since this action may deprogram the module that you
are trying to upgrade. The firmware upgrade right order is: FRCH module/s, MSC module
and BASE PBA (FPGA, DSP Process, DSP Router and CPU). The FR33 telephone hybrid
modules will appear as an upgradable module inside the base board (as well as independent
modules) and will be upgraded from here.

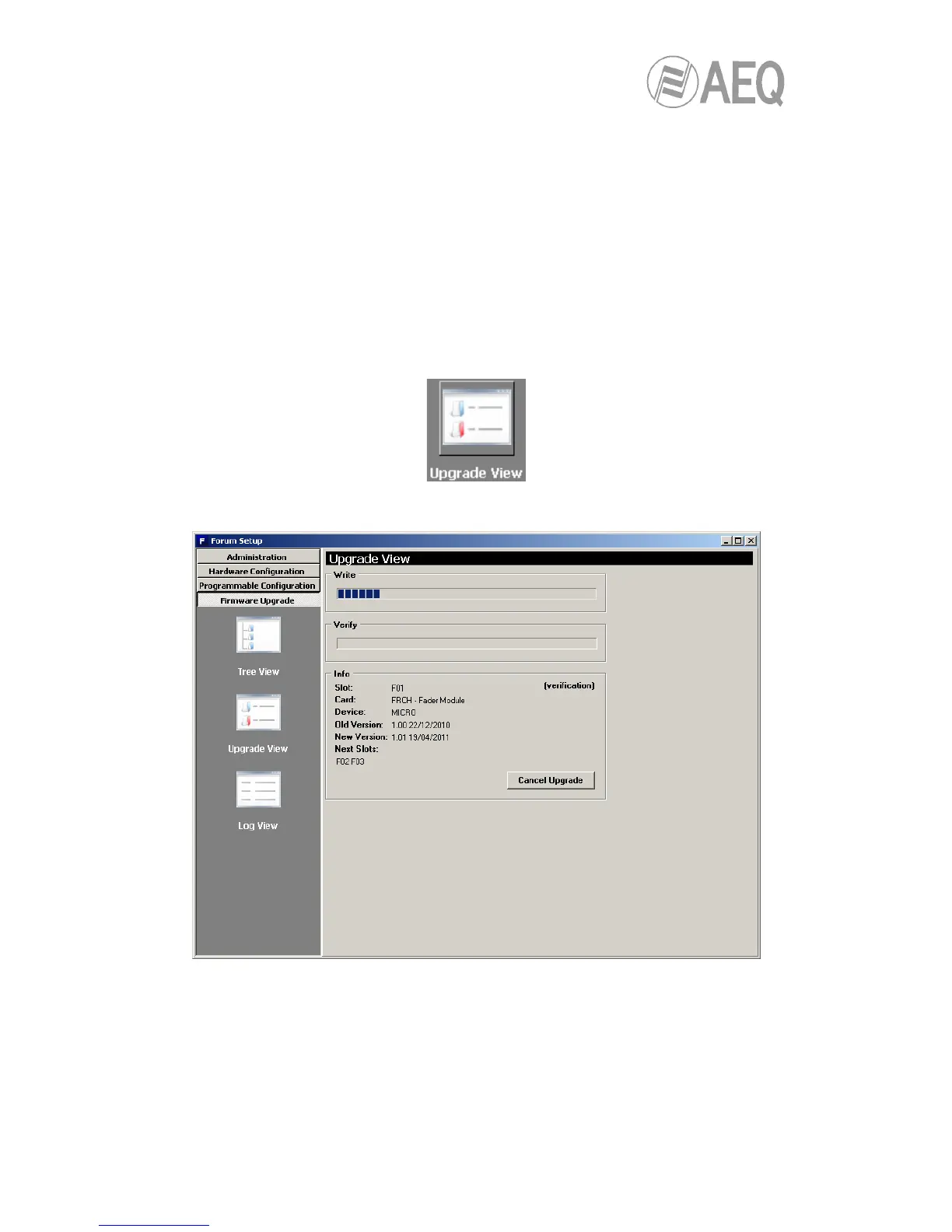

4.4.2. “Upgrade View” submenu.
“Upgrade View” submenu is accessed, from the drop-down menu “Firmware Upgrade”, by
clicking on the icon (although the application will change automatically to this submenu when an
firmware upgrading is in process):
“Upgrade View” submenu allows you to check in real time the upgrading progress.
The following fields are visible on screen:
• “Write”: progress bar concerning the AFU file copy process from the computer that is
running Forum Setup application to the AEQ FORUM internal memory.
• “Verify”: progress bar for the AFU file check previously copied to the AEQ FORUM
internal memory.
• “Info”: displays information about the functional module of the AEQ FORUM subject to
the firmware upgrade:
