Digital audio mixer for broadcast applications
93

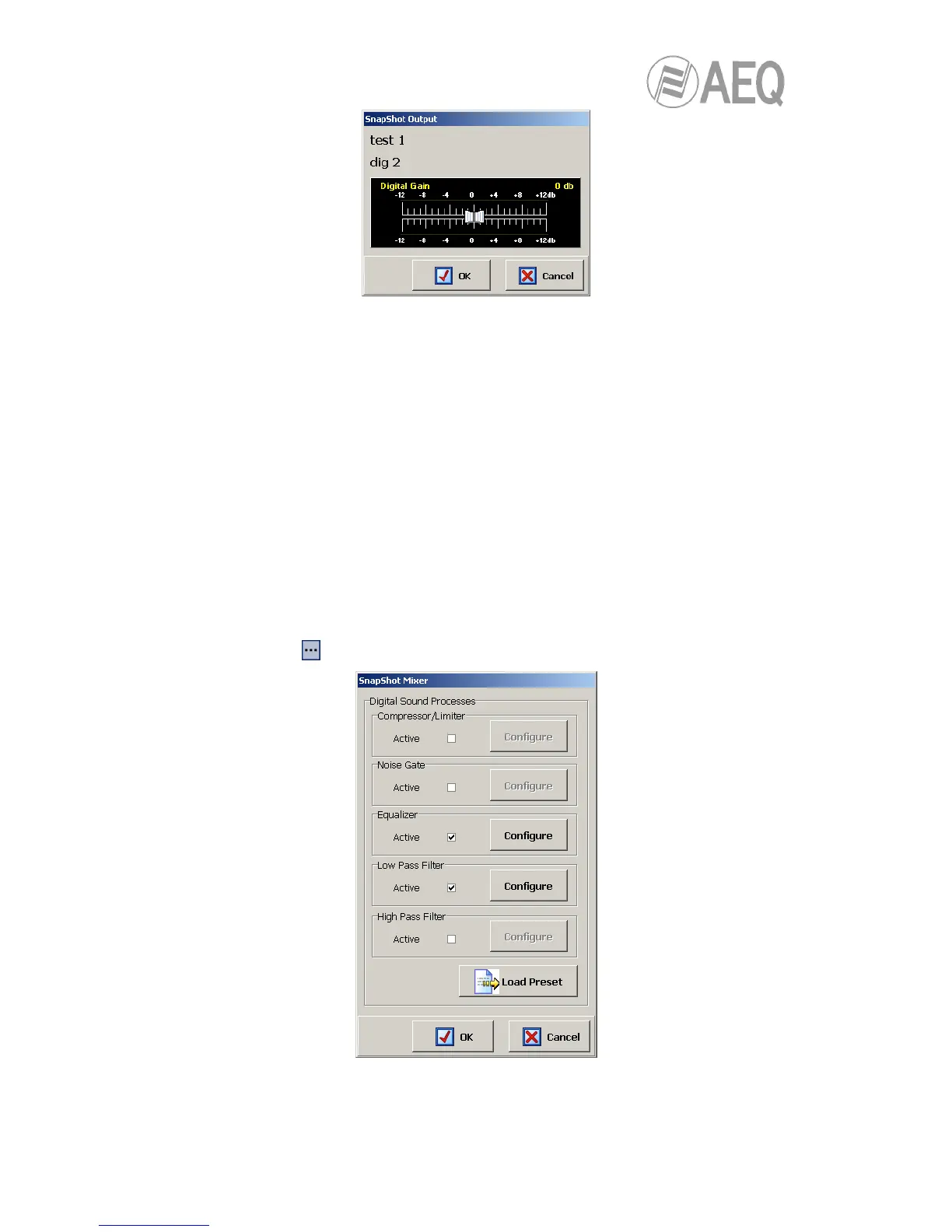

From left to right and from top to bottom the available options are:
• Name of the snapshot (test 1 in the example).
• Name of the channel (dig 2 in the example).
• “Digital Gain”: allows you to control the output gain of the selected channel from -12dB
to +12 dB, by means of a graphical representation of a sliding fader.
• “OK”: allows you to accept the created or edited configuration.
• “Cancel”: allows you to reject the created or edited configuration. No change you may
have made is saved.
4.3.5.3. Advanced configuration of internal summing buses.
Within the “Configure Inputs, Outputs and Mixer” advanced configuration screen, the right part
of the screen shows the complete list of all the available internal summing buses. Three
columns are shown:
• “Mixer”: shows the internal numeric identifier for the summing bus.
• “Label”: shows the name or label associated to the summing bus.
• “Config”: allows you to configure the associated options for that summing bus from a
specific screen. You can access by clicking “Click to [CONFIG]” and then clicking
again on the
button that will appear.
The window that appears will allow you to configure and activate/deactivate the available
processes for that channel or, by means of “Load Preset” button, to select and load a
previously created preset (see section 4.3.4).
