Digital audio mixer for broadcast applications

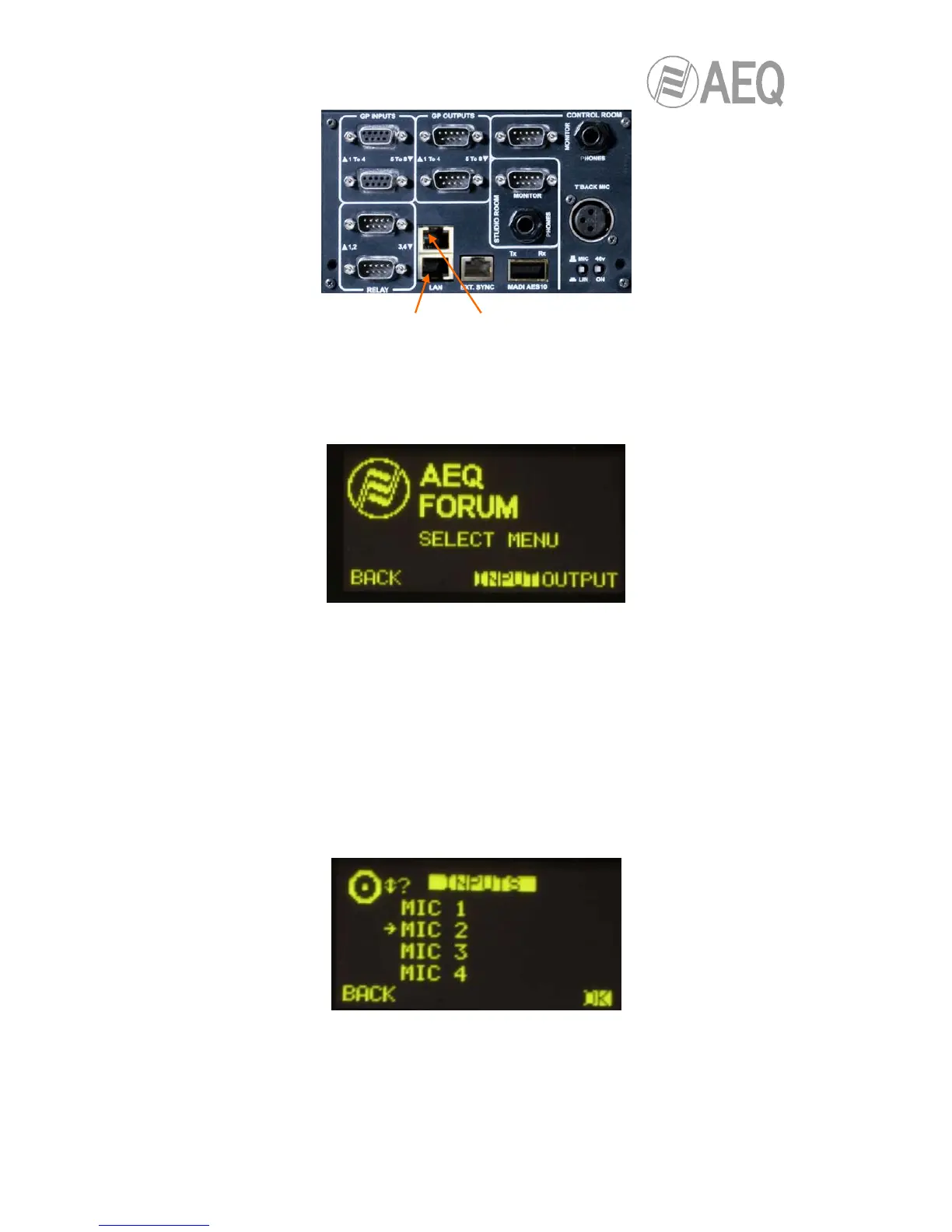

3.4.3. “SELECT “ menu.

This menu enables you to perform advanced configuration operations on audio inputs/outputs,

processes and internal routing of all of the signals present in the console.

The options available through the contextual keys below the screen, from left to right, are:

• “BACK”: pressing this key allows you to return to the previous menu screen.

• “INPUT”: configuration of input audio signals, as well as processes and routing

associated with those signals.

• “OUTPUT”: configuration of output audio signals, as well as associated routing and

tones activation.

3.4.3.1. “INPUT“ menu.

This menu shows a list of all the audio input logical signals defined in the system from the

configuration software. For more information, see section “4. CONFIGURATION SOFTWARE”

in this manual.

You can access a more complete description of each one of the input audio channels by turning

any of the 3 associated encoders and pressing then the “OK” contextual key or any of these

encoders. The information showed on this screen, from top to bottom and left to right, is:

LAN ETHERNET
