o “Slot”: identifies the physical location of the module to be upgraded. In the case
of a module placed at the rear panel of the AEQ FORUM, the slot where it is
placed will be shown (S13 for instance). In case of a FRCH 4 faders module, its
position will be shown (F01, F02 or F03). In case of a base board module, MB
(Mother Board) indication will be shown.
o “Card”: shows the type of the functional module that is subject to the firmware
upgrade.
o “Device”: electronic component part of the functional module that will be
upgraded.
o “Old Version”: information regarding the old firmware version installed on the
component.
o “New Version”: information about new firmware version installed on the
component.
o “Next Slots”: indicates the position of the following functional modules to be
upgraded.
4.4.3. “Log View” submenu.
“Log View” submenu is accessed, from the drop-down menu “Firmware Upgrade”, by clicking on
the icon:

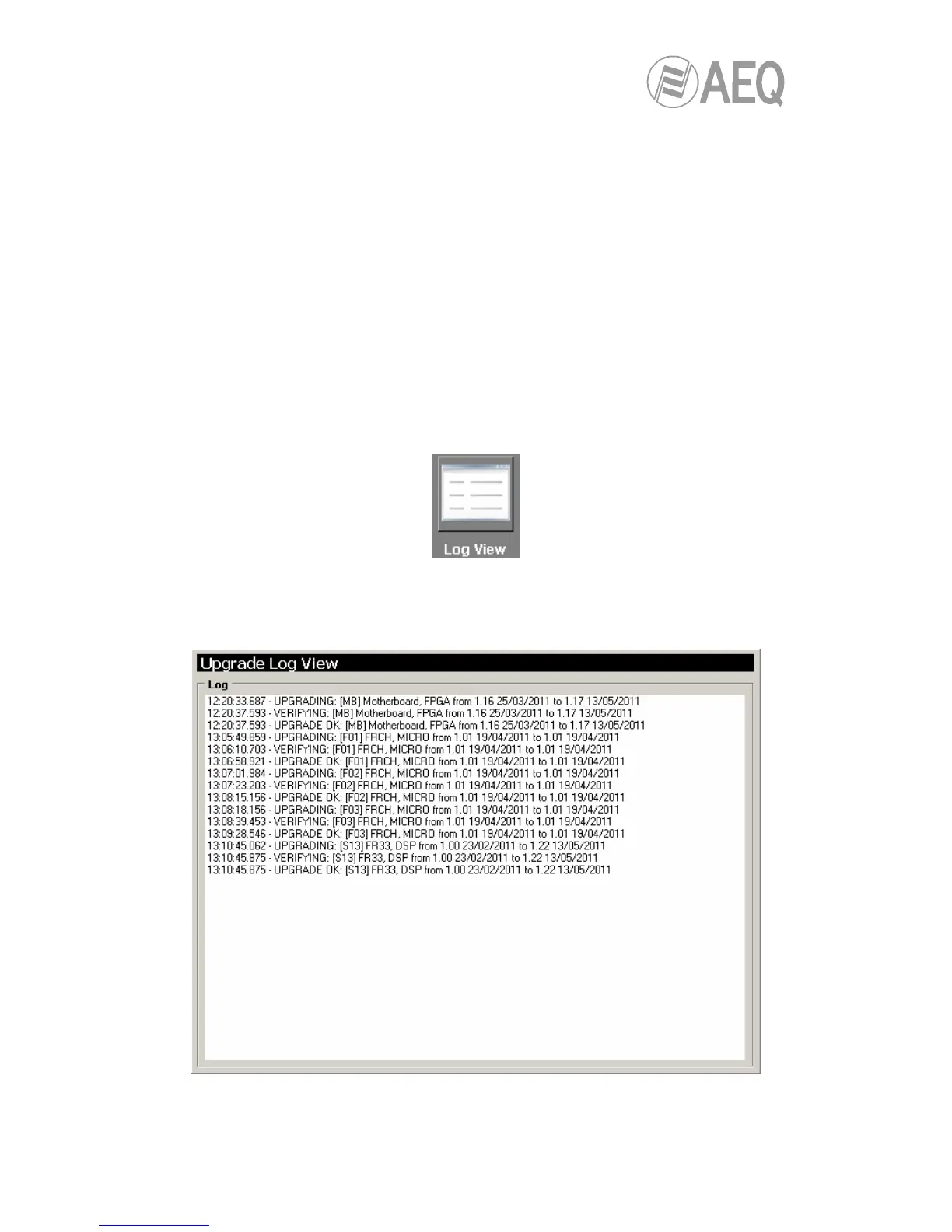

“Log View” submenu represents the record containing all the actions associated with a
particular upgrade process as a sequence of independent events chronologically ordered and
its specific status (OK or ERROR). This information is complementary information to “Tree
View” and “Upgrade View” submenus.
