• “Label”: alphanumeric name of the channel. Maximum number of characters
recommended is 6. This is the name that appears in all displays and menus of the AEQ
FORUM control surface.
• “Model”: type of the physical inputs/outputs module present in the rear panel of the unit.
This field will be populated automatically once the “Board Configuration” has been
accomplished (see section 4.2.1.1 of this manual).

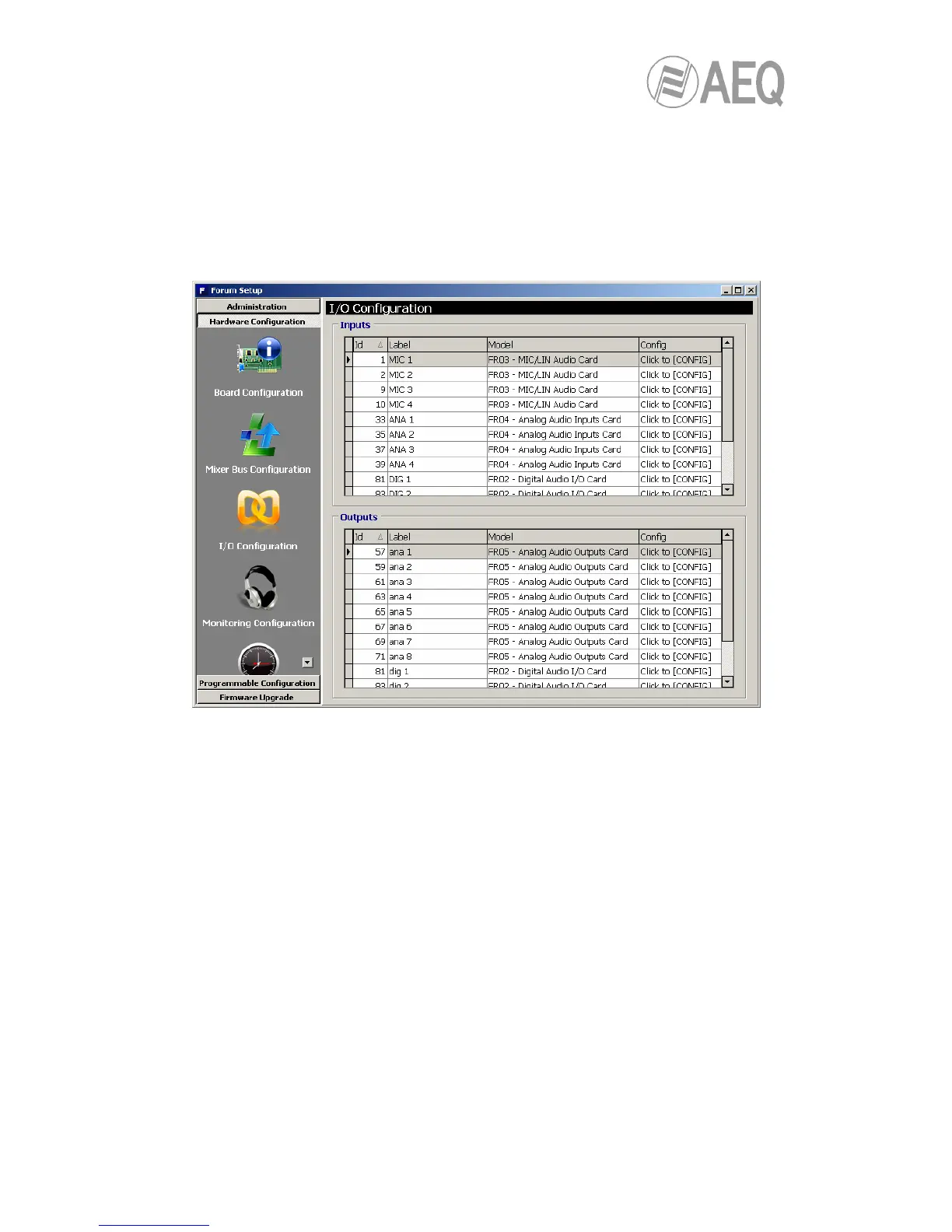

• “Config”: access to advanced settings menu for the selected logical channel. To acces,
click on “Click to [CONFIG]” and then clicking again on the “CONFIG” button that will
appear.
4.2.3.1. Advanced configuration of input channels menu.
Even if all configuration options and possibilities are explained hereunder, it should be taken
into account the on-screen options may vary depending on the inputs/outputs module that the
logical audio audio channel has been configured for:
• Headers: indicates the type and position of the module that is configured at that
moment.
o “FRzz Input configuration” means that we are setting the input of a FR"zz"
type card.
o “INPUT HW:xx.0y” means that we are setting the input "y" of the card located
in slot xx.
• “Label”: alphanumeric name of the channel. Maximum number of characters
recommended is 6. This is the name that appears on all displays and menus of the AEQ
FORUM control surface.
• “Fader Start”: allows you to select a GPO (from the list defined in chapter 4.2.1.2) to
perform the Fader-start function for this channel. “None” indicates there is no Fader-
start function associated to that channel.
