AEQ FORUM
Digital audio mixer for broadcast applications
56

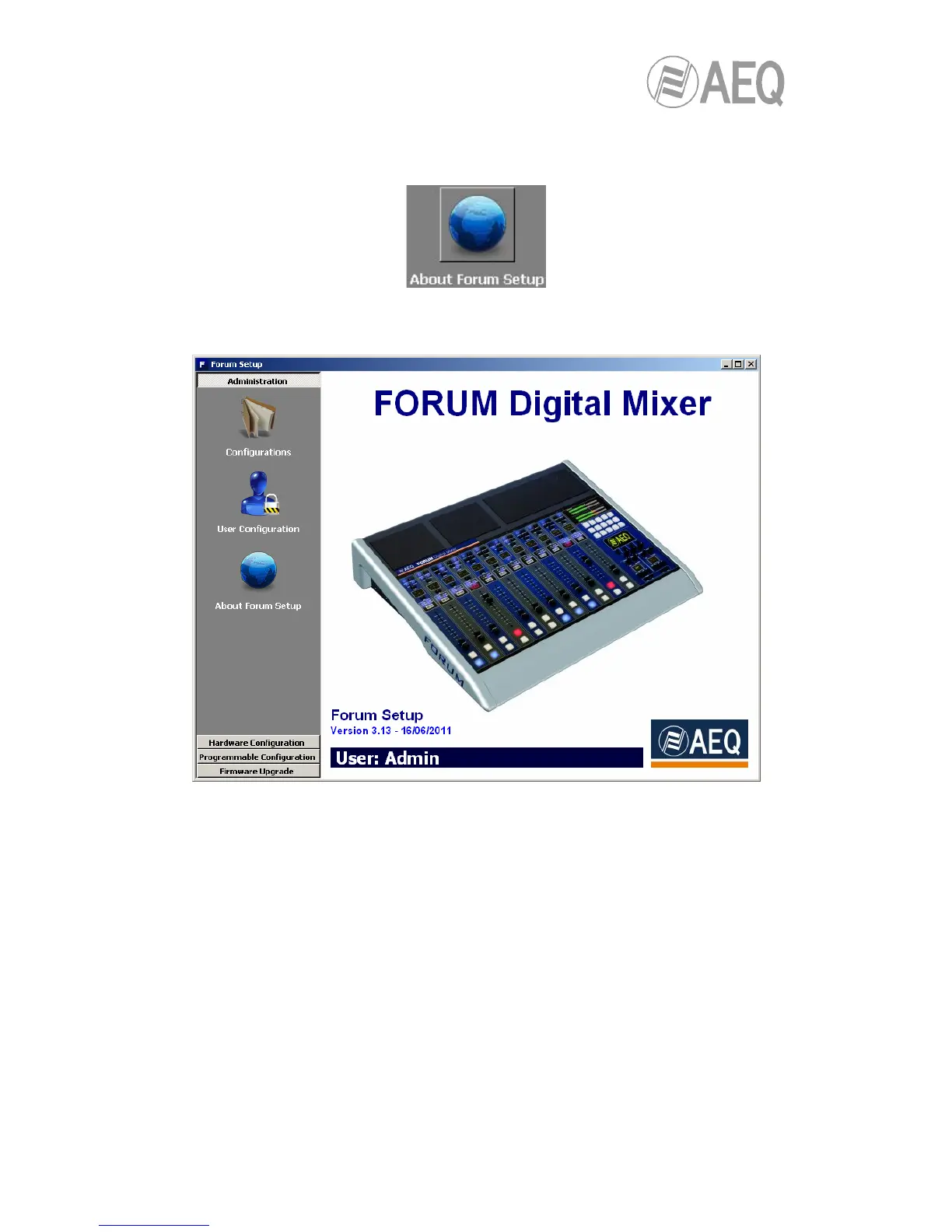

4.1.3. “About Forum Setup “ submenu.
“About Forum Setup” submenu is accessed, from the drop-down menu “Administration”, by
licking on the icon:
“About Forum Setup” submenu simply shows information regarding the software version and
the current user logged into the application.
4.2. “Hardware Configuration “ menu.
This menu allows you to configure the system inputs and outputs modules as well as the logical
audio channels created from the physical inputs and outputs. Clicking on the “Hardware
Configuration” section on the left side of the screen displays the full list of submenus, which
includes:
• “Board Configuration”: allows you to define the settings of faders, audio inputs/outputs
modules and GPIOs of the Mixing Console.
• “Mixer Bus Configuration”: allows you to define the configuration of the internal
summing buses of the mixing console.
• “I/O Configuration”: enables the configuration of logical audio channels based on the
physical audio inputs and outputs as defined in the “Board Configuration” submenu.
• “Monitoring Configuration”: allows you to define the operation of the Control and
Monitoring sections that are associated to the control and studio rooms.
• “NTP Client”: allows you to configurate and activate time and date synchronization with
a remote NTP server. Once configured this server will work as the master clock for the
local time of the AEQ FORUM.
