AEQ FORUM
Digital audio mixer for broadcast applications
27

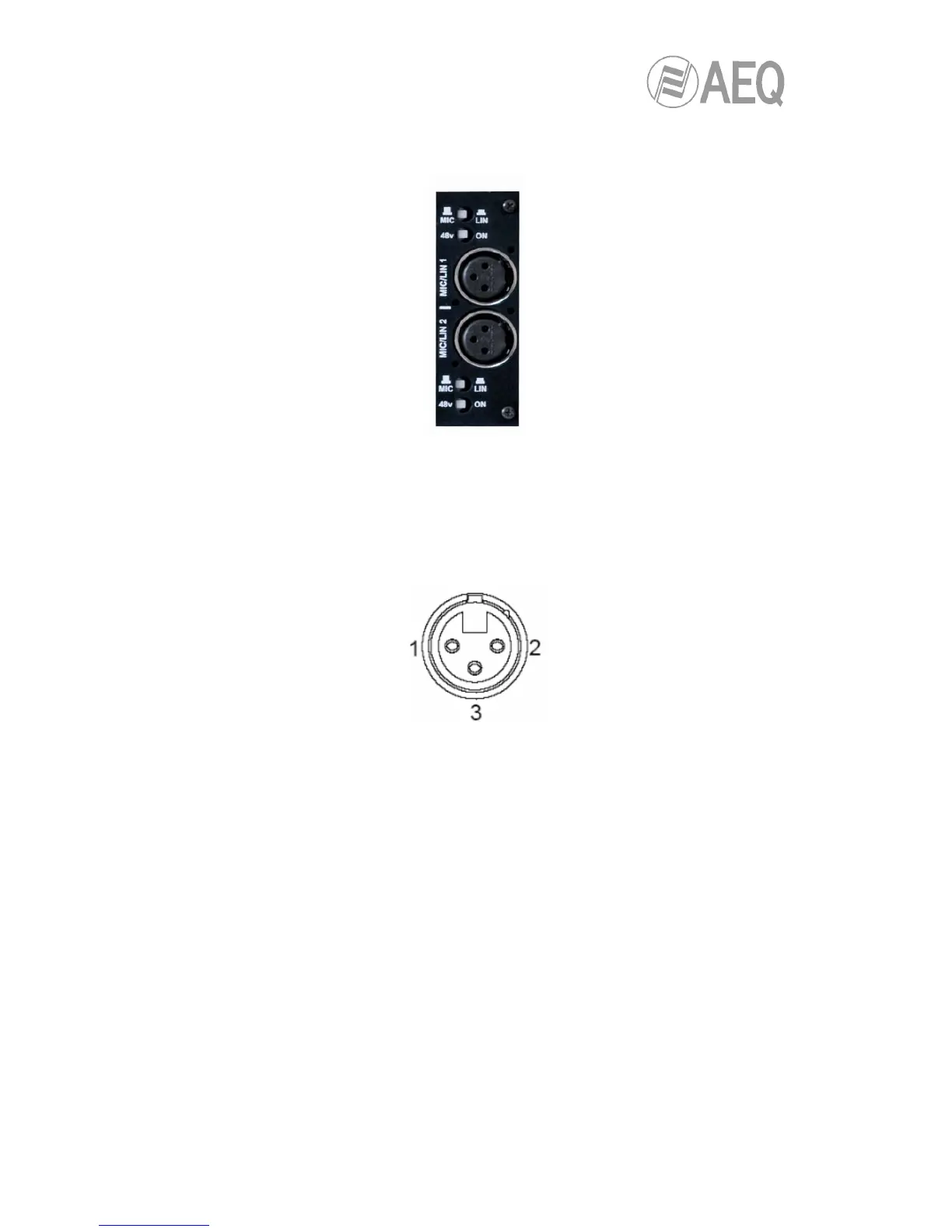

2.2.3.2. FR03 Mic/Line inputs module.
The AEQ FORUM FR03 module includes 2 switchable monophonic microphone/line level on
two female XLR connectors.
Each of the two Mic/Line inputs available on the FR03 module includes separate controls on
dedicated hardware button to select your operation as microphone or line input, as well as the
activation or deactivation of the +48V Phantom power available. The modification or activation
of any of these options can be monitored from the internal menu available in the main screen of
the Control and Monitoring section and monitors in the control surface FORUM AEQ. For more
information see section “3.4.3.1.3. Expanded information menu“ in this manual.
XLR - Female 3p. Balanced connection.
Pin 1 Æ GND
Pin 2 Æ Input +
Pin 3 Æ Input -
IMPORTANT NOTE: the physical location of the FR03 modules present in a normal
configuration of AEQ FORUM is limited to the first 4 of the 14 available slots on the rear panel
of console. Therefore, the maximum number of microphones present in any AEQ FORUM
console is 9, 8 through the FR03 modules connected and one more microphone connected to
“T´BACK MIC” input.
