AEQ FORUM
Digital audio mixer for broadcast applications
30
2.2.3.5. FR33 Telephone hybrid module.
The AEQ FORUM can incorporate up to two modules FR33 as internal digital telephone
hybrids, each of which have the capacity to manage a single telephone line.

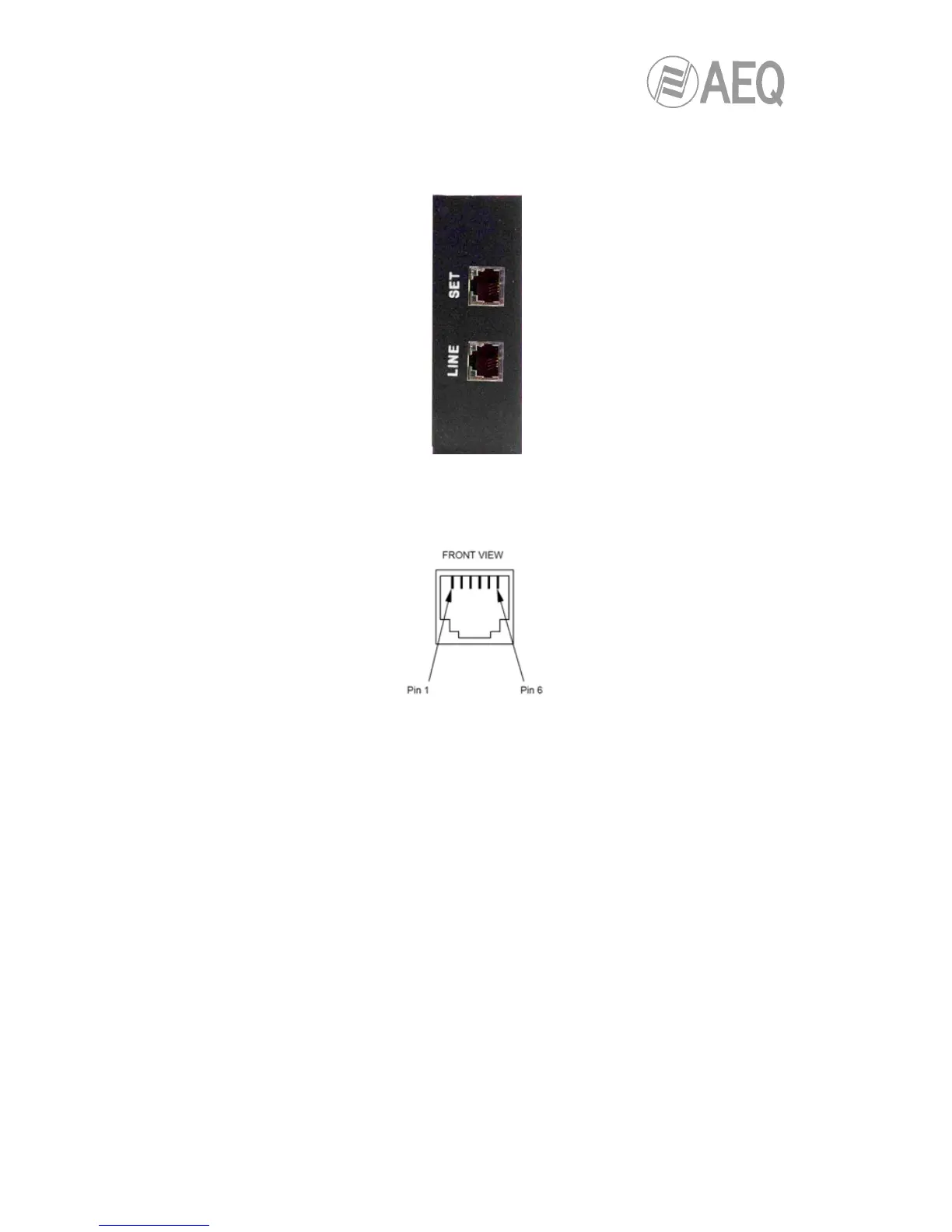

Each FR33 module includes two RJ11 connectors, one is labelled “LINE” and to which the
telephone line connection is accomplished. The other is labelled as “SET” and used to connect
an external telephone terminal from where you can dial the required number or answering a call
prior to placing the call ON-AIR.
RJ11 connector
The configuration of the signals present in the FR33 module and associated controls is
accomplished from the configuration software. For more information, please refer to chapter
“4.2. Hardware Configuration menu” of this manual.
Depending on the version of firmware installed the configuration options related to the FR33
Digital Telephone Hybrid module may not be available. It may be necessary to use external
communication devices and for which the programmable keys of the AEQ FORUM can be used.
For more information please refer to section “4.3.2.4. Configuration of Codec programmable
keys“ of this manual.
