2.2.3.4. FR05 Analogue line outputs module.

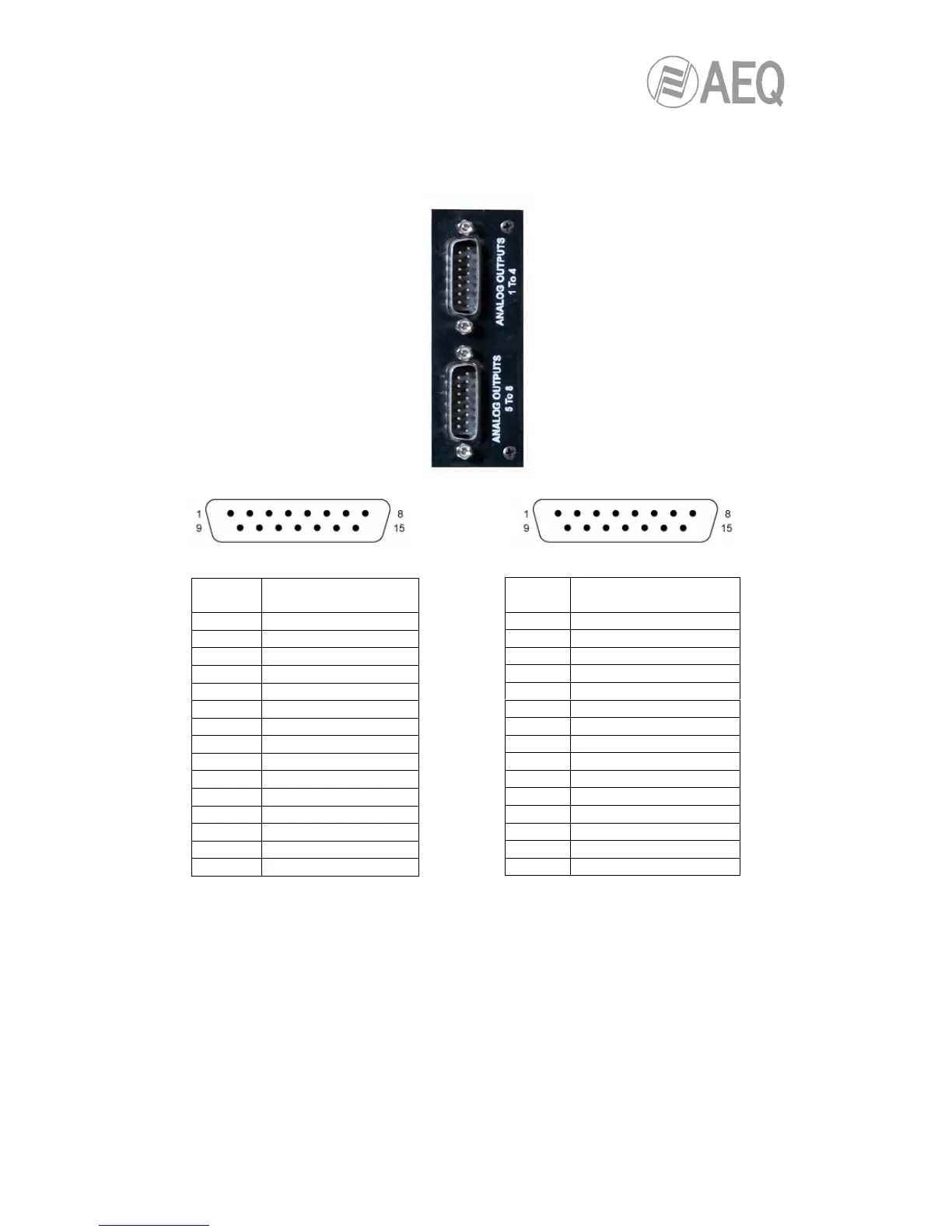

The AEQ FORUM FR05 module incorporates 8 electronically balanced monophonic line level
outputs and are available physically through two DB15 male connectors identified as “ANALOG
OUTPUTS 1 To 4” (upper), and “ANALOG OUTPUTS 5 To 8” (lower).
DB15 male connector pin-out DB15 male connector pin-out
Pin
ANALOG OUTPUTS
1 To 4 connector
1 OUT1+
2 GND
3 OUT2+
4 GND
5 OUT3+
6 GND
7 OUT4+
8 GND
9 OUT1-
10 GND
11 OUT2-
12 GND
13 OUT3-
14 GND
15 OUT4-
Depending on the specific application or installation, the 8 mono outputs can be configured as 4
stereo outputs from the configuration software. For more information see section “4.2.3. I/O
Configuration submenu” of this manual.
Pin
ANALOG OUTPUTS
5 To 8 connector
1 OUT5+
2 GND
3 OUT6+
4 GND
5 OUT7+
6 GND
7 OUT8+
8 GND
9 OUT5-
10 GND
11 OUT6-
12 GND
13 OUT7-
14 GND
15 OUT8-
