AERMEC HMG - Operating Limits; Dimensions; Connections Diameter

22

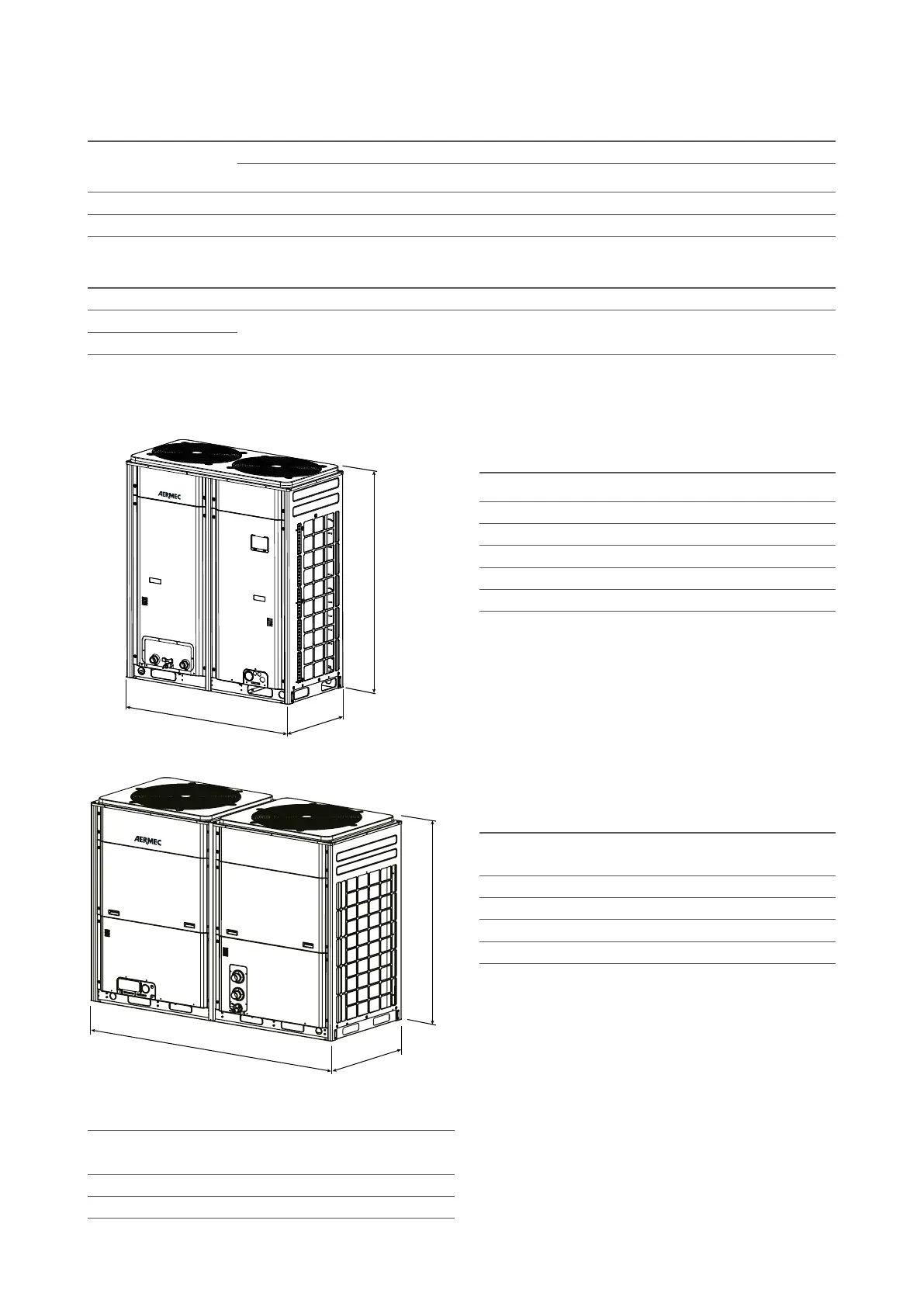

DIMENSIONS
Dimensions and
weights
HMG0350 HMG0600
A mm 1340 2200
B mm 845 965
C mm 1605 1675
Net weight kg 405 686
Weight functioning kg 445 755
Dimensions
and weights for
transport
HMG0350 HMG0600
A mm 1420 2267
B mm 920 1030
C mm 1775 1867
Weight for transport kg 422 722
A
B
C
Diameter of water
inlet connections
Diameter of water
outlet connections
HMG0350 mm(inch) G1''1/2 (male) G1''1/2 (male)
HMG0600 mm(inch) G2'' (male) G2'' (male)
CONNECTIONS DIAMETER
A
B
C
HMG0350
HMG0600
Water side Air side
Water temperature
Dierenza di temperatura
ingresso - uscita (°C)
Temperatura b.s.
aria esterna (°C)
Cooling 5~20 2,5~6 -15~52
Heating 35~50 2,5~6 -20~40
OPERATING LIMITS
Pressione minima dell'acqua in ingresso Pressione massima dell'acqua in ingresso
Cooling
0.06 MPa 1.6 MPa
Heating
Pressioni d'ingresso dell'acqua massime e minime:
