AERMEC HMG - Weight Distribution

24
WEIGHT CENTRE OF GRAVITY 1 2 3 4
KG X Y % % % %
HMG0350 EMPTY 405 600 362,5 26 26 24 24
HMG0600 EMPTY 686 1090 430 25 28 24 23
HMG0350 DURING OPERATION 445 600 355 27 25 25 23
HMG0600 DURING OPERATION 755 1090 421 26 27 25 22
WEIGHT DISTRIBUTION
1340
1200
765
72918
70
Xg
Yg
1
2
3
4

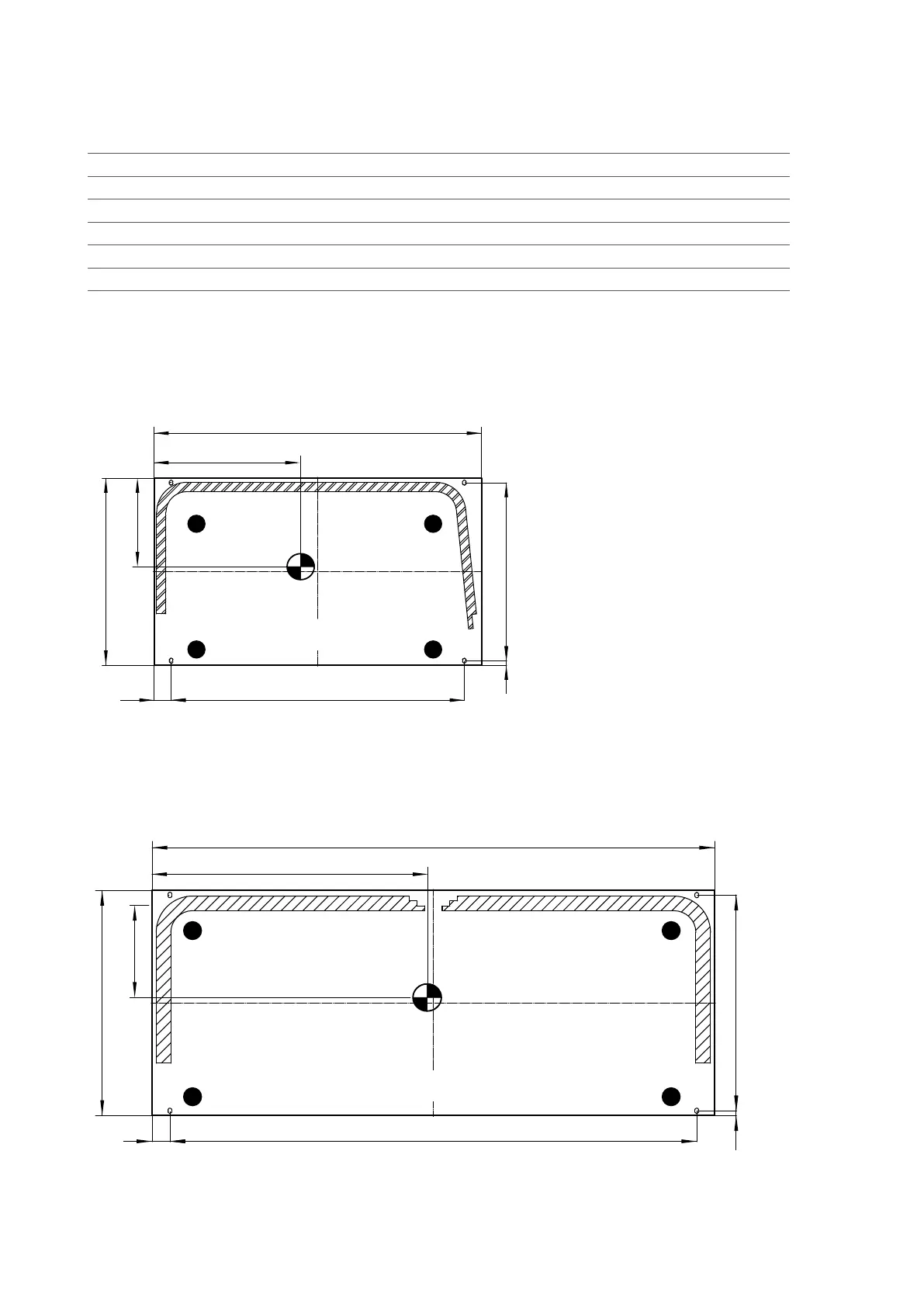

HMG0350
Top view
lato attacchi idraulici
e scatola elettrica
2200
2260
880 48818
70
Xg
Yg
1
2
3
4
HMG0600
Top view
lato attacchi idraulici
e scatola elettrica
