AERMEC HMG - Addressing of Modular Units in Homogeneous Modularity - Dip Switches

50
The 5-pin DIP switches are used for addressing modular units (1
~ 16). Each address must be unique and will be shown on the
wired panel display (module 1, module 2, ... module 16).
5-pin DIP switches are binary codes where 1 indicates the lowest
bit and 5 the highest bit.
NOTE
To set the addresses of the units via DIP SWITCH, the power
supply to the units must be switched off.

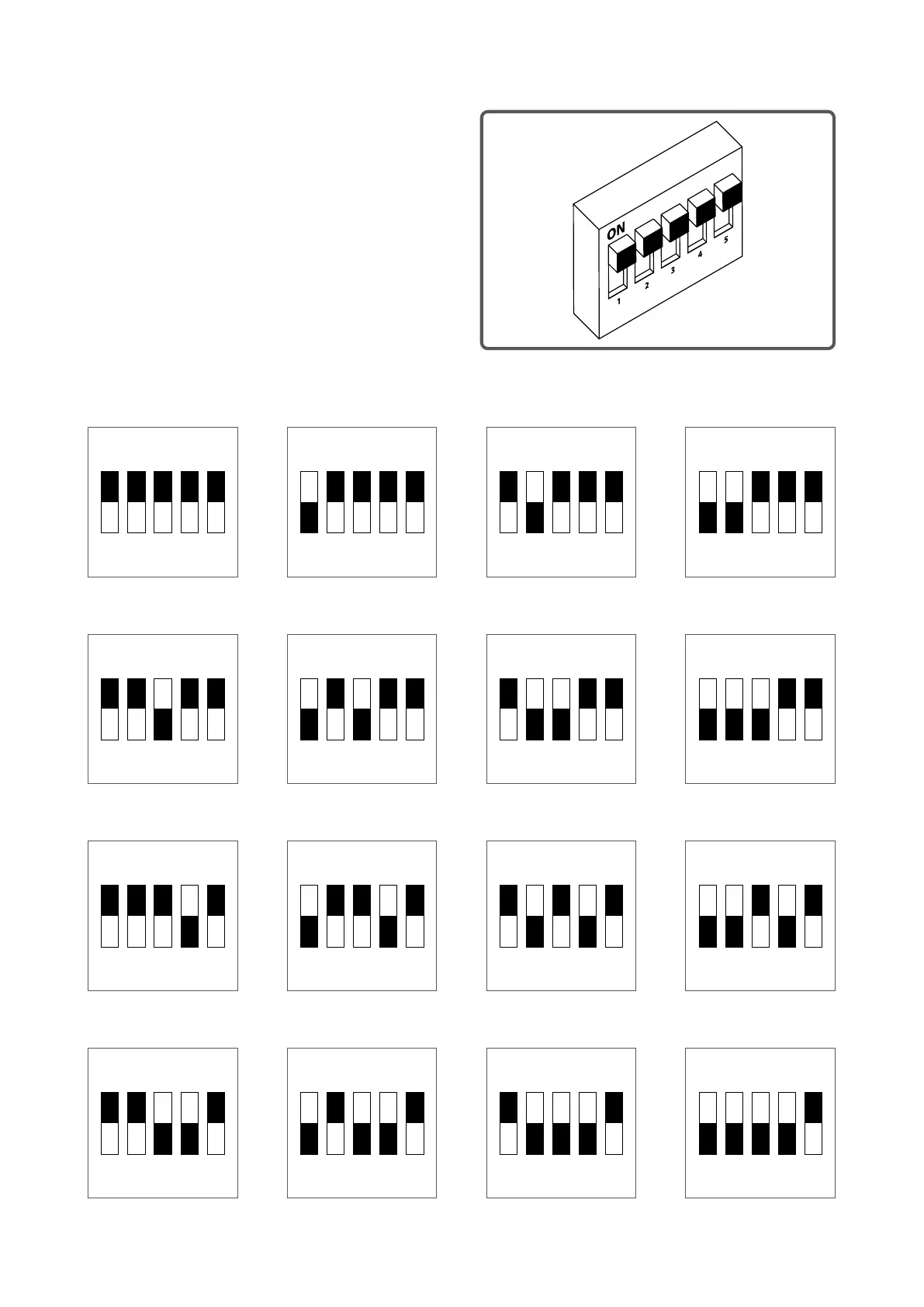

ADDRESSING OF MODULAR UNITS IN
HOMOGENEOUS MODULARITY  DIP SWITCHES
1 2 3 4 5
Module 1
ON
Module 9
1 2 3 4 5
ON
Module 5
1 2 3 4 5
ON
Module 13
1 2 3 4 5
ON
1 2 3 4 5
Module 2
ON
Module 10
1 2 3 4 5
ON
Module 6
1 2 3 4 5
ON
Module 14
1 2 3 4 5
ON
Module 3
1 2 3 4 5
ON
Module 11
1 2 3 4 5
ON
Module 7
1 2 3 4 5
ON
Module 15
1 2 3 4 5
ON
1 2 3 4 5
Module 4
ON
Module 12
1 2 3 4 5
ON
1 2 3 4 5
Module 8
ON
Module 16
1 2 3 4 5
ON
