AERMEC HMG - Refrigerant Circuit

29

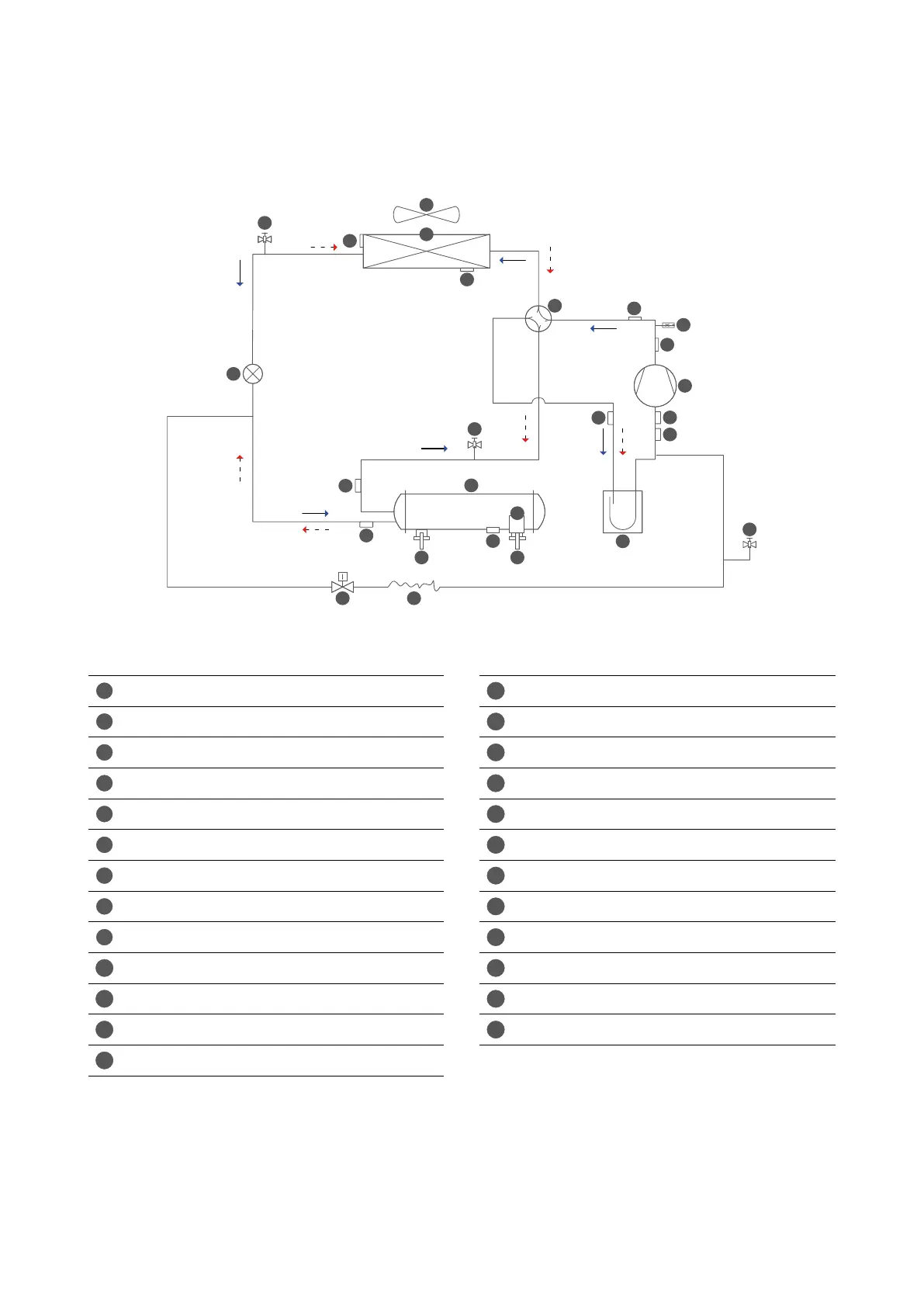

REFRIGERANT CIRCUIT
1
2
3
4
5
6
78
9
10
11
12
13
14
15
16
18
17
19
20
21
22
23
24
25
11
HMG0350
Description
1
Shell and tube exchanger
2 Flow switch
3 Leaving water temperature probe
4
Antifreeze / overtemperature alarm probe
5
Inlet water temperature probe
6 Shell and tube exchanger inlet temperature probe
7 Capillary tube
8 Solenoid valve
9 Exchanger outlet temperature probe
10
Electronic expansion valve
11
Shut-off valve
12
Defrost temperature probe
13
Fan
Description
14
Finned pack exchanger
15
External air temperature probe
16
4-way valve
17
High pressure switch
18
High pressure transducer
19
Compressor discharge temperature probe
20
Compressor
21
Low pressure switch (heating)
22
Low pressure switch (cooling)
23
Safety valve
24
Liquid separator
25
Compressor suction temperature probe
