AERMEC HMG - Pressure Drops

34

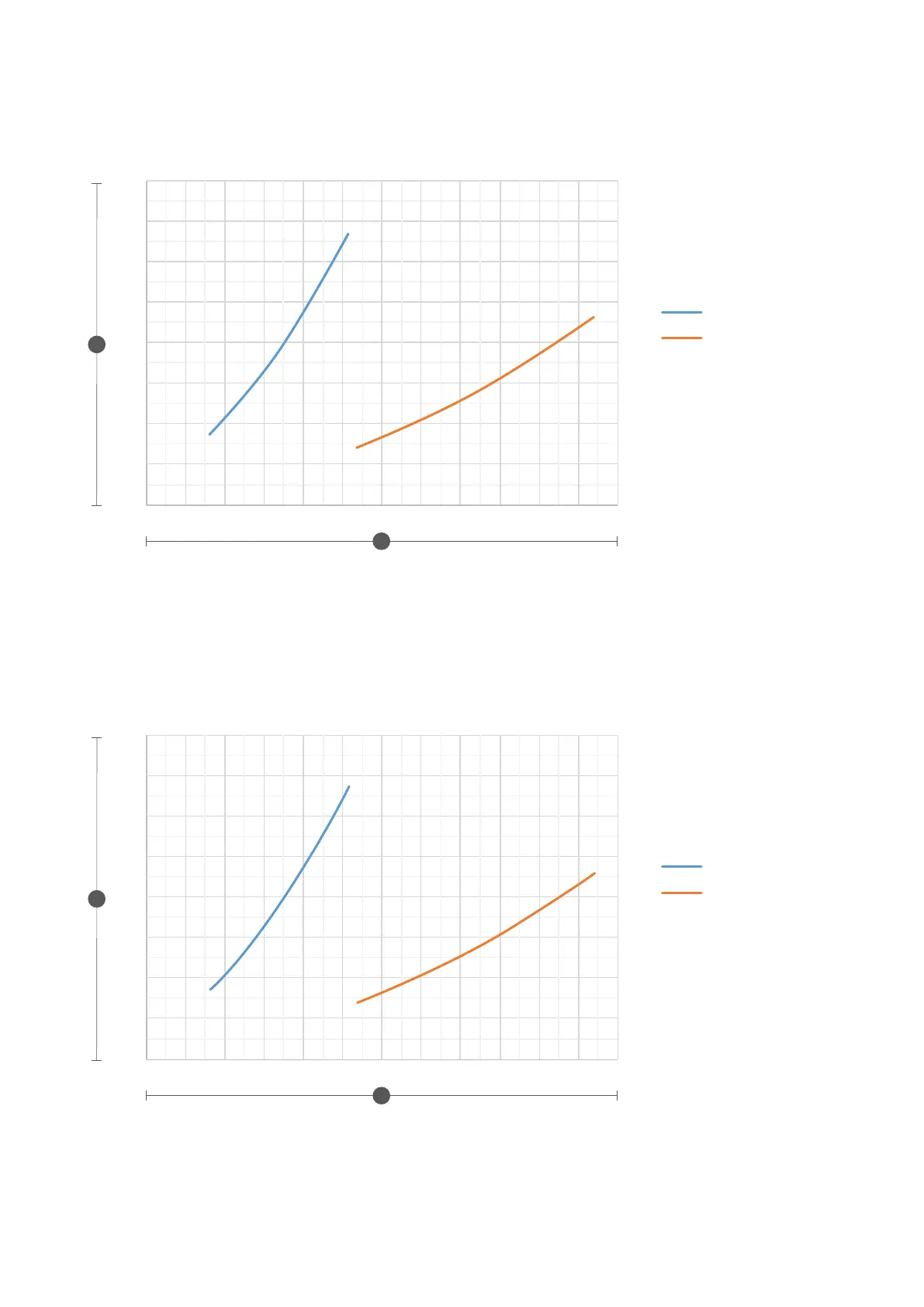

PRESSURE DROPS
A Pressure drops (kPa)
B Water flow rate (l/h)
Inlet water temperature 12 °C
Outlet water temperature 7 °C
Outside air temperature 35 °C
Average temperature of the water 10 °C
B
A
0
20
40
60
80
100
120
140
160
2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000
0350
0600
kPa
l/h
A Pressure drops (kPa)
B Water flow rate (l/h)
Inlet water temperature 40 °C
Outlet water temperature 45 °C
Outside air temperature 7 °C
Average temperature of the water 43°C
B
A
0
20
40
60
80
100
120
140
160
2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000
0350
0600
kPa
l/h
