AERMEC HMG - Addressing of Modular Units in Sequential Modularity - Dip Switches

51
The 5-pin DIP switches are used for addressing the modular
units (1 ~ 4). In the case of sequential modularity, the address of
all the units must be the same.

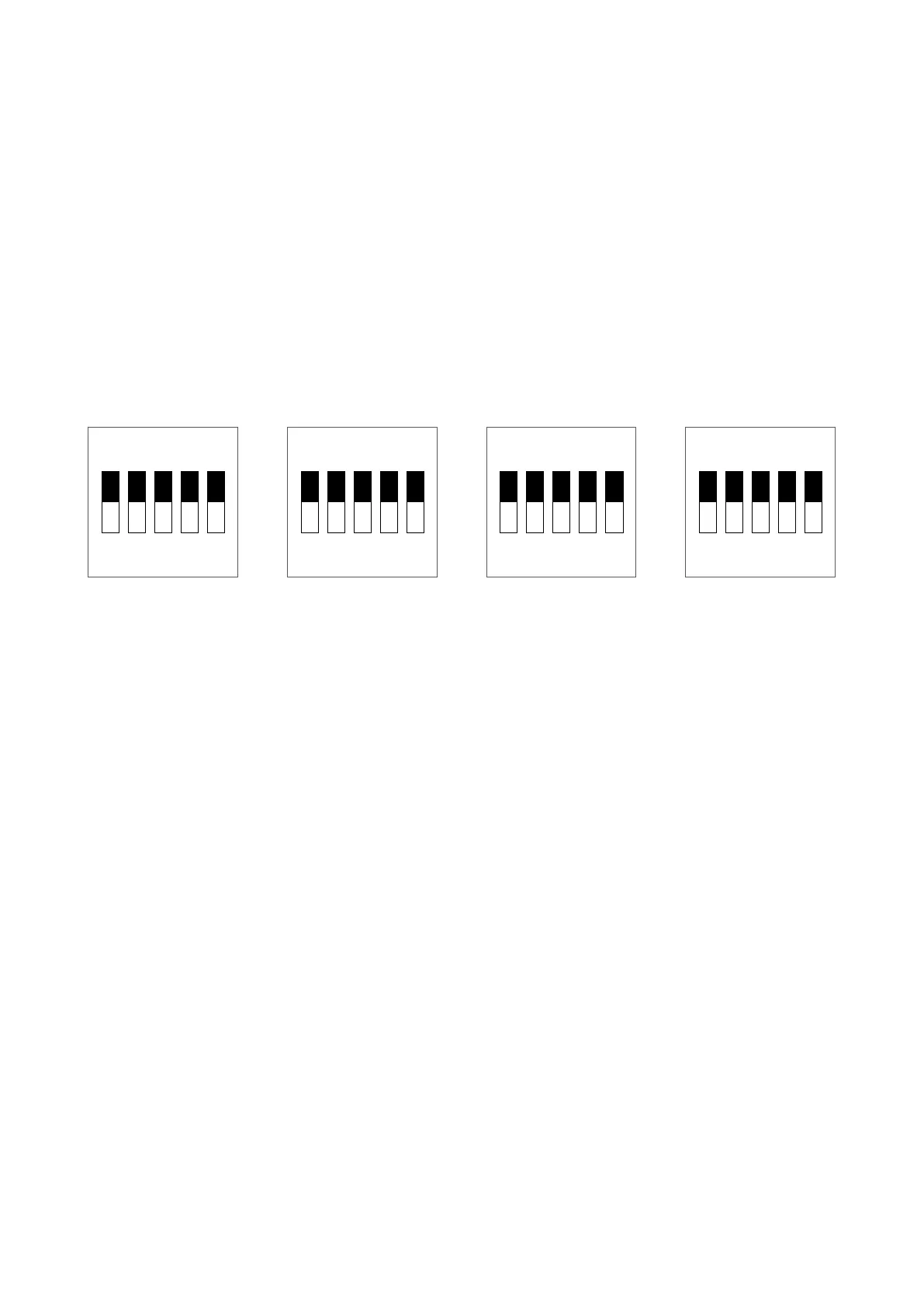

All bits of the 5-pin DIP switch must be set to ON as shown in the
figure below.
ADDRESSING OF MODULAR UNITS IN
SEQUENTIAL MODULARITY  DIP SWITCHES
Module 1
1 2 3 4 5
ON
Module 3
1 2 3 4 5
ON
Module 2
1 2 3 4 5
ON
Module 4
1 2 3 4 5
ON
