AERMEC HMG - Page 30

30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
23
22
24
6
6
7
8
9
11
12
13
14
15
16
17
19
20
21
6
22
23
24
21
25
25
10

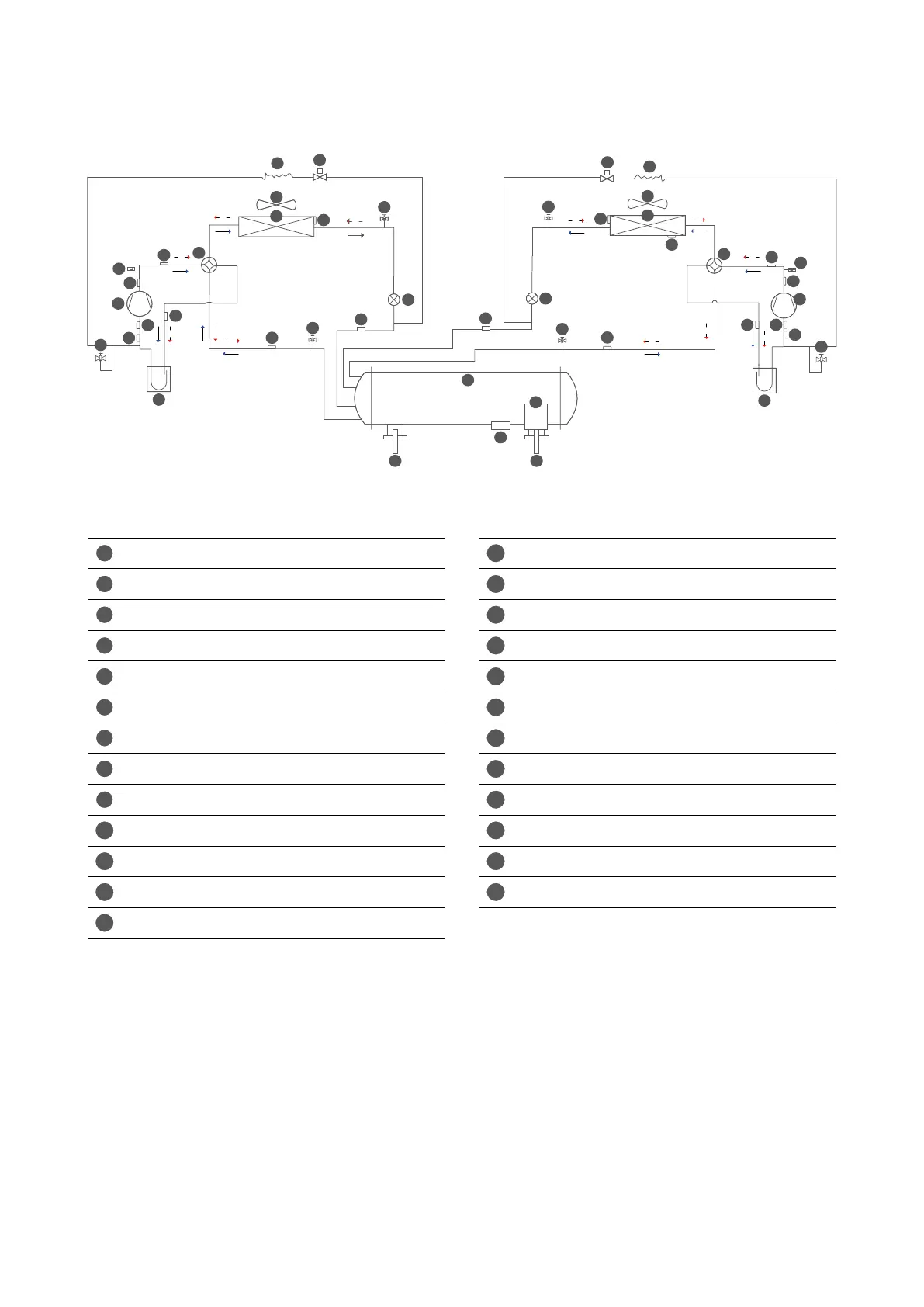

HMG0600
Description
1 Shell and tube exchanger
2
Flow switch
3 Leaving water temperature probe
4 Antifreeze / overtemperature alarm probe
5 Inlet water temperature probe
6 Shut-off valve
7 Shell and tube exchanger inlet temperature probe
8 Compressor suction temperature probe
9
Liquid separator
10
Safety valve
11
Low pressure switch (cooling)
12
Low pressure switch (heating)
13
Compressor
Description
14
Compressor discharge temperature probe
15
High pressure transducer
16
High pressure switch
17
4-way valve
18
External air temperature probe
19
Scambiatore di calore a batteria alettata
20
Fan
21
Sonda temperatura sbrinamento
22
Capillary tube
23
Solenoid valve
24
Electronic expansion valve
25
Shell and tube exchanger inlet temperature probe
