NOTE
With the instrument accessory kit comes a 4-mm wrench and with the Sealing Kit a special
adapter. Both together work as a torque wrench with pre-defined torque (maximum allowed
torque for the cell fittings is 0.7 Nm). It can be used to tight the capillary fittings at the flow
cell body. The wrench has to be plugged into the adapter as shown in Figure 65.

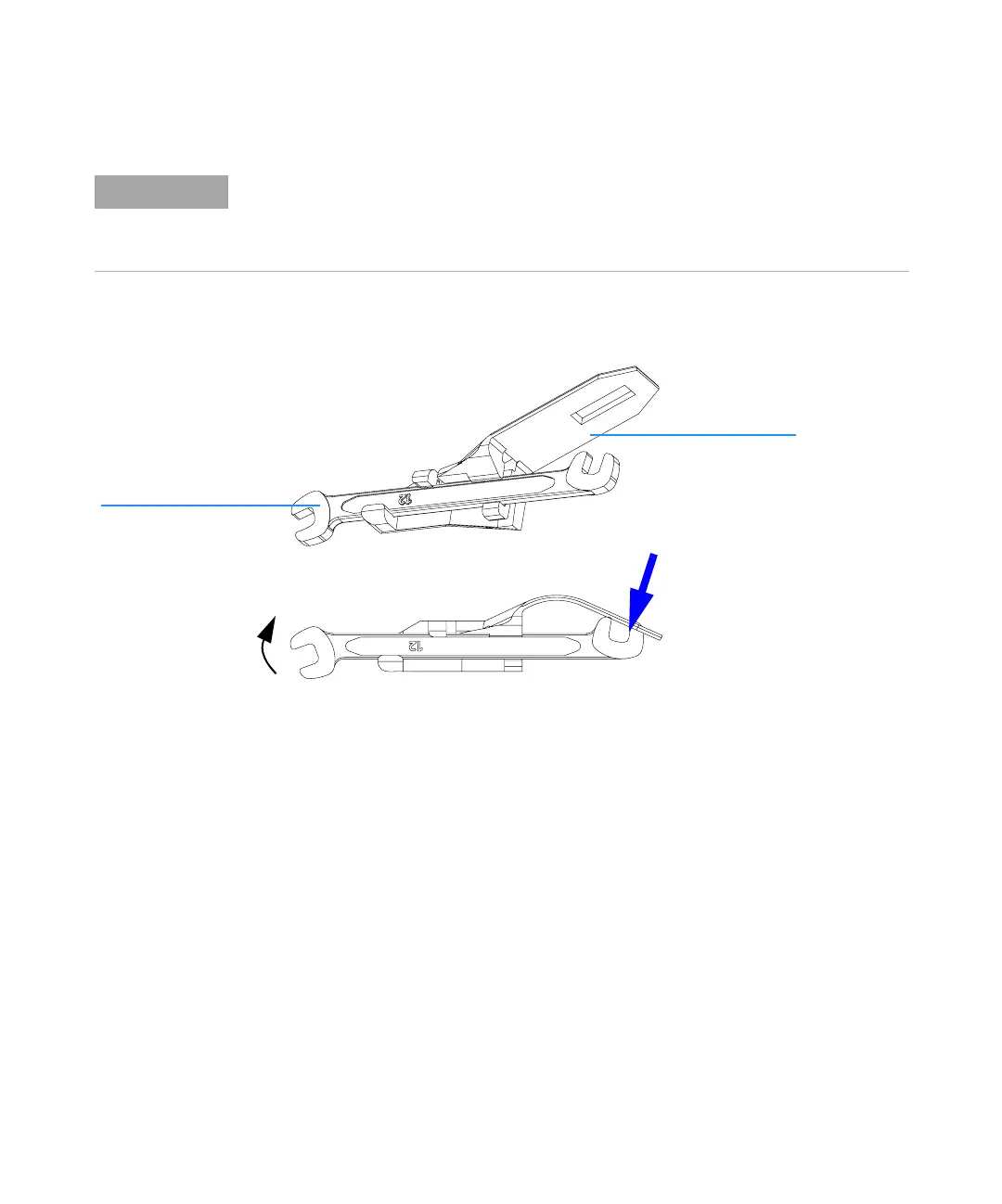

Figure 65 Wrench plus Torque Adapter
Wrench
Adapter
DO NOT press down
more than shown here
max
0.7 Nm
