1290 Infinity II High-Speed Pumps User Manual 20

1Introduction

Leak and Waste Handling

Waste Concept

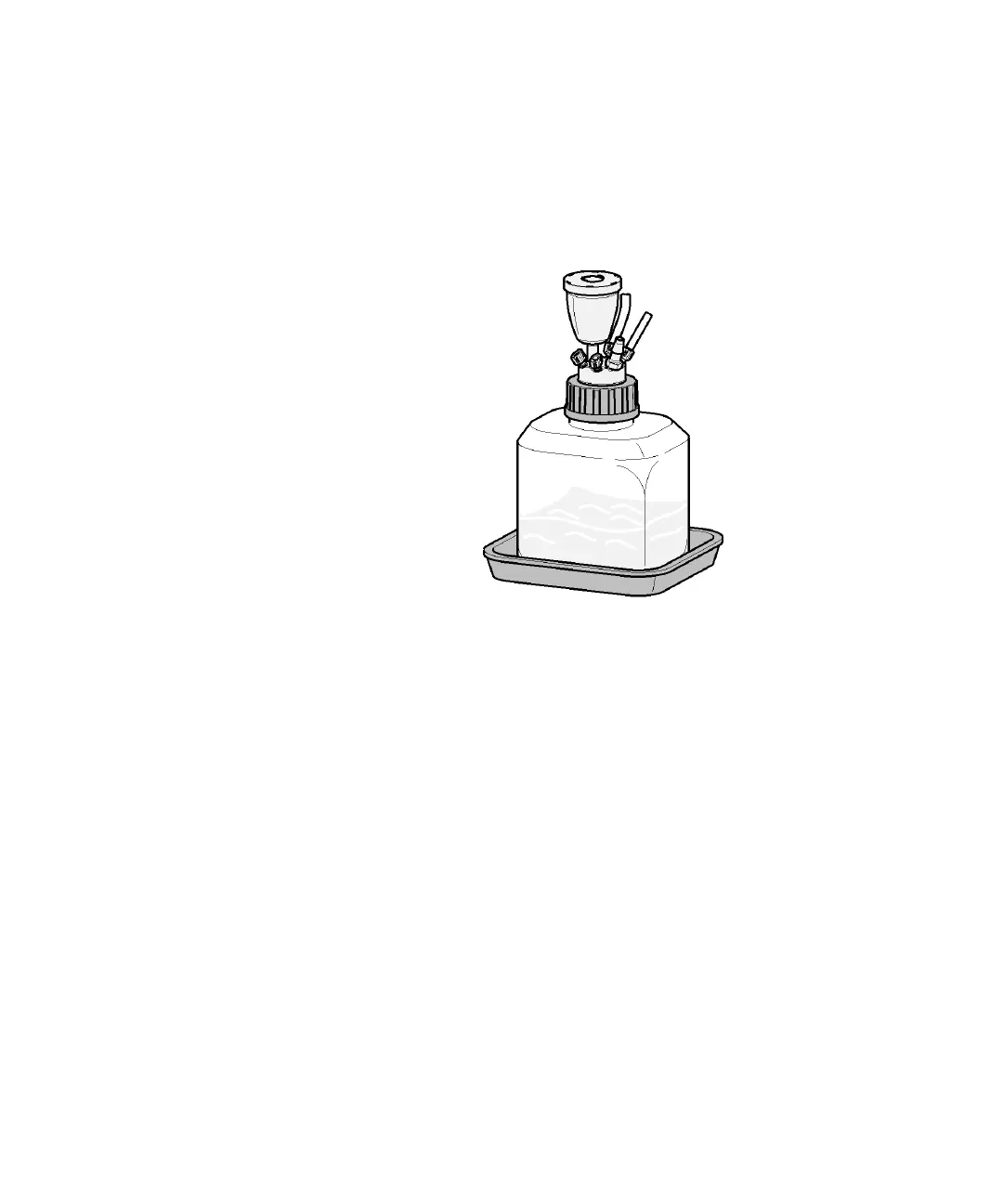

1 Agilent recommends using the 6 L waste can with 1 Stay Safe cap GL45 with

4 ports (5043-1221) for optimal and safe waste disposal. If you decide to use

your own waste solution, make sure that the tubes don't immerse in the liquid.
