1290 Infinity II High-Speed Pumps User Manual 227

9 Parts and Materials for Maintenance

Pump Heads (G7132A)

Primary Pump Head Parts

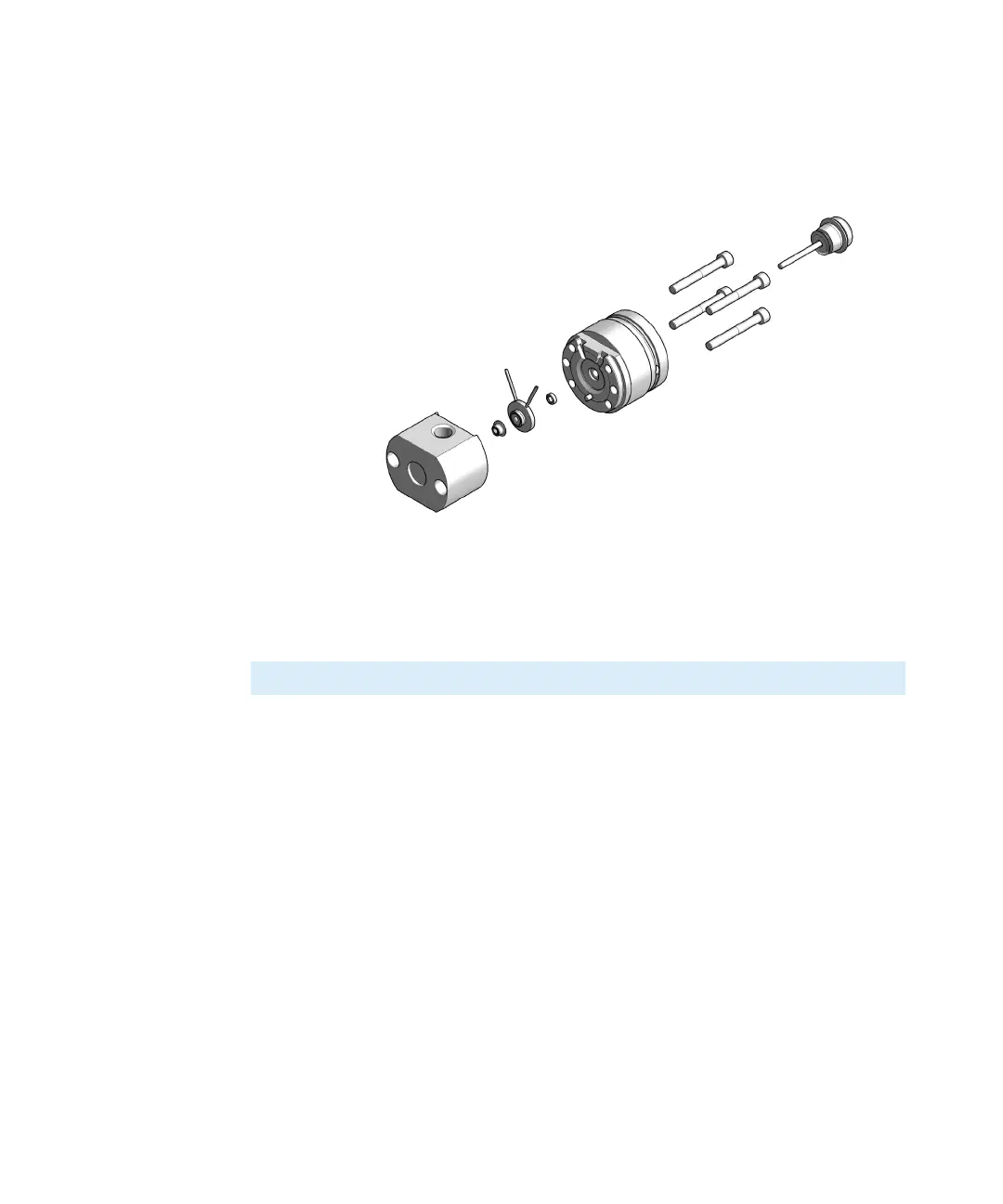

Figure 21 Primary pump head parts (G7132A)

Primary Pump Head Assembly Bio-Compatible (G7131-60641)

Item p/n Description

1 5067-5975 Plunger Assy ZrO

2 0515-6154 Screw-Socket-HD-Cap Hex-Recess M5X0.8 40

3 G4220-60046 Preload-Support Assembly LL

4 0905-1731 Bio-Inert Wash Seal

5 G7131-60616 Seal Holder Integrated Assembly Bio-Compatible

6 G7131-20009 Seal Bio-Compatible

7 G7131-60533 Body Head Primary Bio-Compatible
