Agilent Technologies 1290 Infinity II - Secondary Pump Head Parts

1290 Infinity II High-Speed Pumps User Manual 228
9 Parts and Materials for Maintenance
Pump Heads (G7132A)
Secondary Pump Head Parts

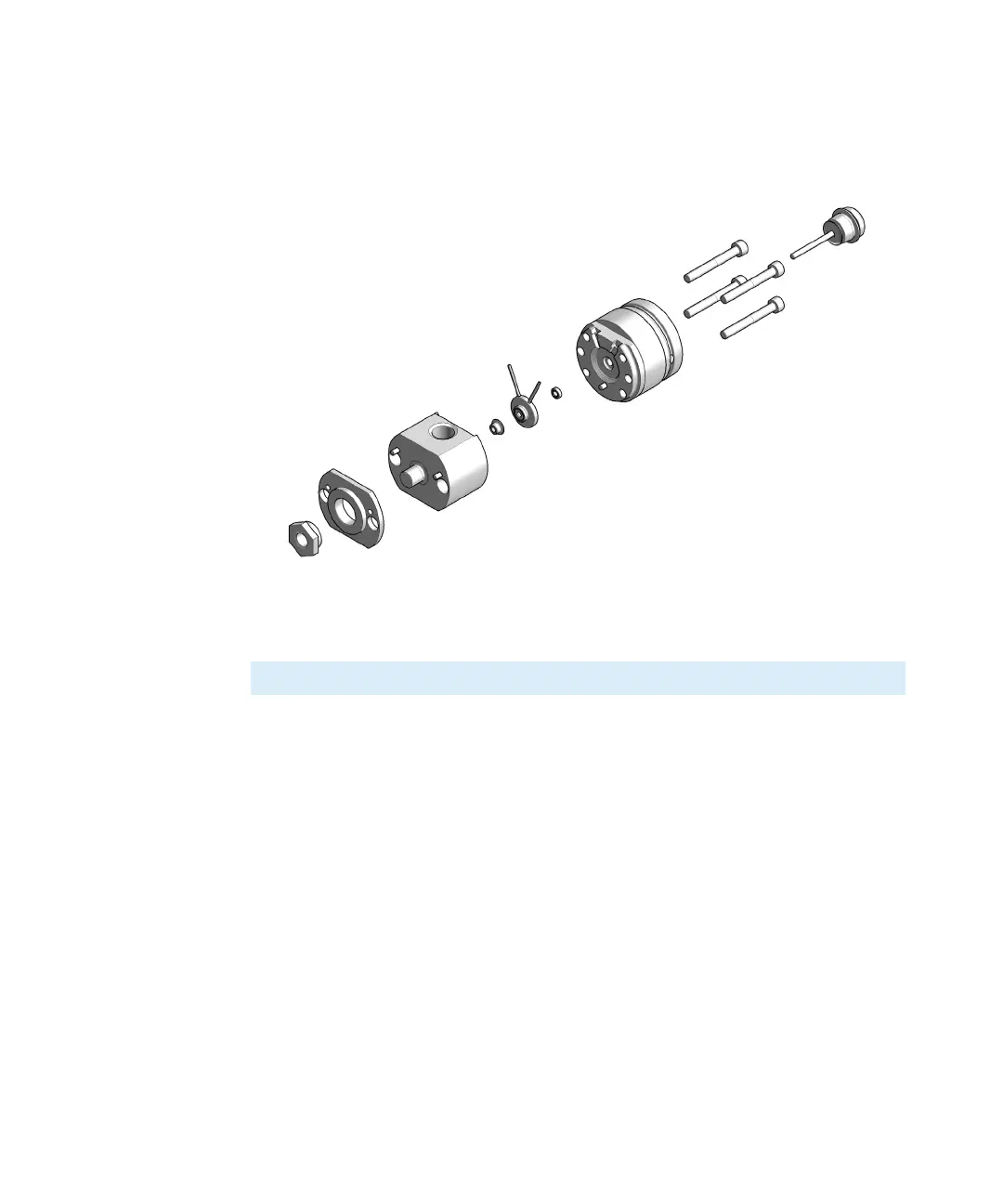

Figure 22 Secondary pump head parts (G7132A)
Secondary Pump Head Assembly Bio-Compatible (G7132-60640)
Item p/n Description
1 5067-5975 Plunger Assy ZrO
2
LL
2 0515-6154 Screw-Socket-HD-Cap Hex-Recess M5X0.8 40
3 G4220-60046 Preload-Support Assembly LL
4 0905-1731 Bio-Inert Wash Seal
5 G7131-60616 Seal Holder Integrated Assembly Bio-Compatible
6 G7131-20009 Seal Bio-Compatible
7 G7132-60000 Body Head Secondary Bio-Compatible
8 G4220-20000 LID
9 G4220-20003 Pump Head Screw
