Replace the Outlet Valve (G7132A)
Replace the Outlet Valve (G7132A)
When
If Outlet valve is defective.
Tools required p/n Description
8710-0510 Open-end wrench 1/4 — 5/16 inch
Spanner-double open ended 14 mm
Parts required p/n Description
G7131-60028 Outlet Valve Bio-Compatible

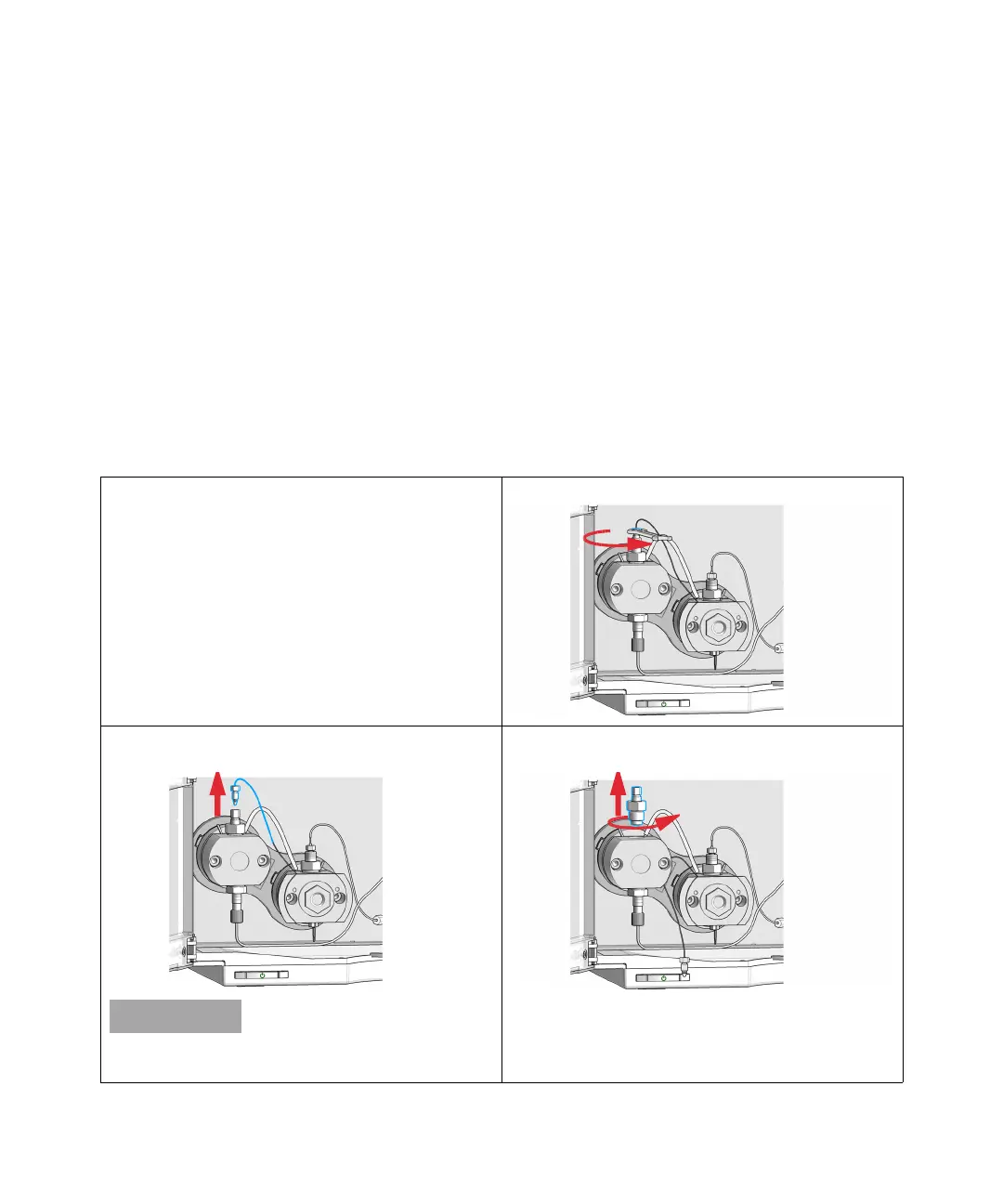

1 Close the shut off valves to avoid solvent leaks. 2 Open the lock screw of the heat exchanger capillary.
3 Remove the heat exchanger capillary from the outlet
valve.
NOTE
A gold seal between outlet valve and heat exchanger capil-
lary is used for a tight connection.
4 Unscrew the outlet valve with a 14 mm wrench (1) and
remove it (2).
1.
2.
